FANUC CX2A/CX2B 3Pin Power Connector Kit P/N A02B-0120-K324

Technical Specifications

Model:A02B-0120-K324

Brand:FANUC

System compatibility:3-pin CX2A/CX2B power connector kit,specially for FANUC Series16 / Series18 A02B-0120 MDI display unit. Used for 24VDC power input connection of operator panel,applied on old CNC lathes and machining centers with 16/18 CNC system.

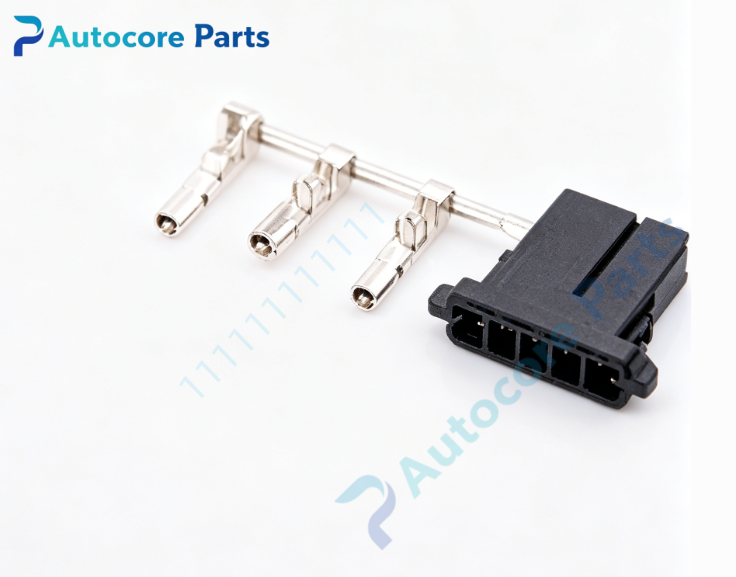

Function:Complete 3-pin power connector assembly. Delivers 24VDC working power to MDI operator panel. Kit includes plastic housing,gold-plated crimp pins and locking latch. Reliable power transmission,avoids power interruption caused by vibration and poor contact.

Installation:Crimp assembly for power cable,side locking clip design,direct plug-in to CX2A/CX2B port on rear of MDI unit.

Interface:

‑3 pin gold-plated power contact terminals

‑Plastic connector housing with locking clip

‑Crimp terminals for power cable wiring

‑Locking clip for fixed plug connection

Circuit feature:Gold-plated contact pins,low contact resistance,anti-oxidation,anti-vibration design,stable power supply under continuous vibration of machine tool cabinet.

Feature:Small CNC power spare accessory. Common faults:pin oxidation,bearing loose,power supply intermittent drop. Confirm MDI panel model before replacement,can not interchange with signal connectors like K301,K321.

Diagnostic:Bad contact of this connector will lead to MDI panel no power,restart randomly or screen flashing.

Power supply:24VDC

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:0.025kg

Dimensions:36mm ×28mm ×15mm

Certification:CE

Built‑in function

A02B-0120-K324 CX2A/CX2B 3pin connector provides 24VDC power for FANUC Series16/18 MDI operator panel,ensures continuous and stable power supply of HMI display and keypad. Widely used for CNC machine tool operator cabinet spare‑part replacement.

Product Brief

A02B-0120-K324 belongs to FANUC 16/18 system spare accessory family,3-pin CX2A/CX2B power connector kit. Check crimp quality and locking status during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
