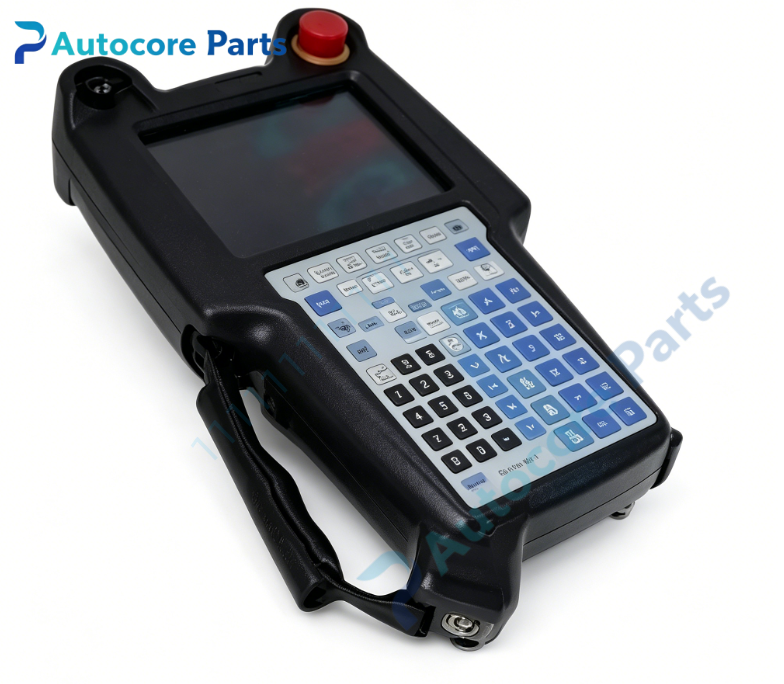

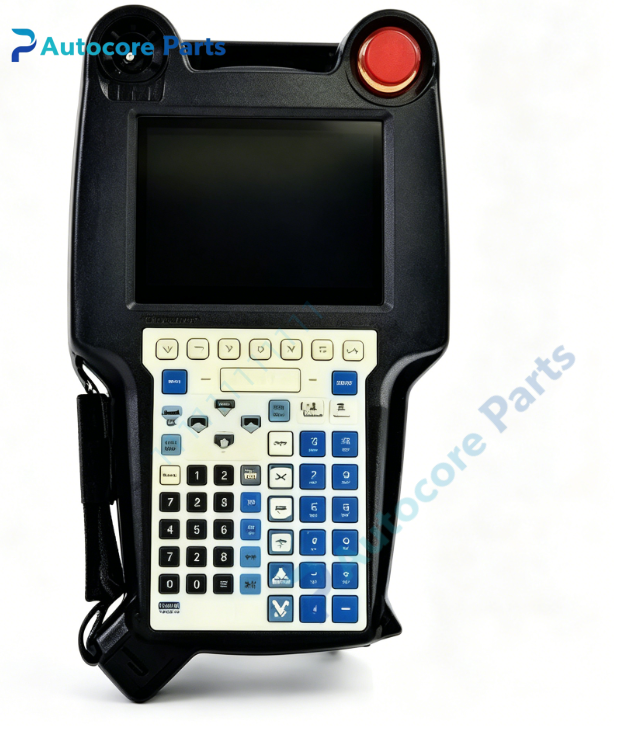

FANUC iPendant Robot Teach Pendant P/N A05B-2518-C202

Technical Specifications

Model:A05B-2518-C202

Brand:FANUC

System compatibility:Touchscreen iPendant teach pendant for FANUC R30iA robot controller,mainly used for material handling robots. Suffix codes #EMH/#SGL define language and regional version. Connected to robot cabinet via dedicated teach pendant cable.

Function:Handheld robot programming and operation terminal. Supports robot axis jog,teach point recording,program editing,parameter configuration,I/O monitoring and alarm diagnosis. Built-in red emergency stop button and three-position deadman safety switch for manual teaching safety. 6.4-inch color LCD with touch panel + membrane keypad dual operation.

Installation:Handheld portable unit,connect to robot controller via dedicated teach pendant cable.

Interface:

‑Teach pendant communication connector

‑6.4 inch color touch LCD display

‑Membrane function keypad

‑3-position deadman safety switch

‑Red emergency stop pushbutton

‑System status LED indicators

Circuit feature:Touch detection circuit,keyboard scanning circuit,hardwired safety protection circuit,anti-drop and vibration resistant design for workshop environment.

Feature:Legacy FANUC R30iA material handling robot touch iPendant. Touch screen + keypad combined design. Common faults:touch panel failure,display aging,deadman switch fatigue,membrane key wear. Confirm suffix code,robot controller and cable compatibility before replacement.

Diagnostic:Damaged pendant triggers teach pendant communication alarm;screen shows robot running status and fault information.

Power supply:24VDC,supplied by robot controller

Protection class:IP54

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑80% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:1.11kg

Dimensions:240mm ×170mm ×60mm

Certification:CE

Built‑in function

A05B-2518-C202 iPendant teach pendant is human-machine interface for FANUC R30iA robot. It completes manual jogging,program teaching,parameter modification and fault diagnosis. Widely used for FANUC robot spare‑part replacement.

Product Brief

A05B-2518-C202 belongs to FANUC A05B robot spare parts family,R30iA material handling robot touch iPendant. Verify robot controller model,software version and teach pendant cable before ordering. Check touch screen,emergency stop and deadman switch function during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
