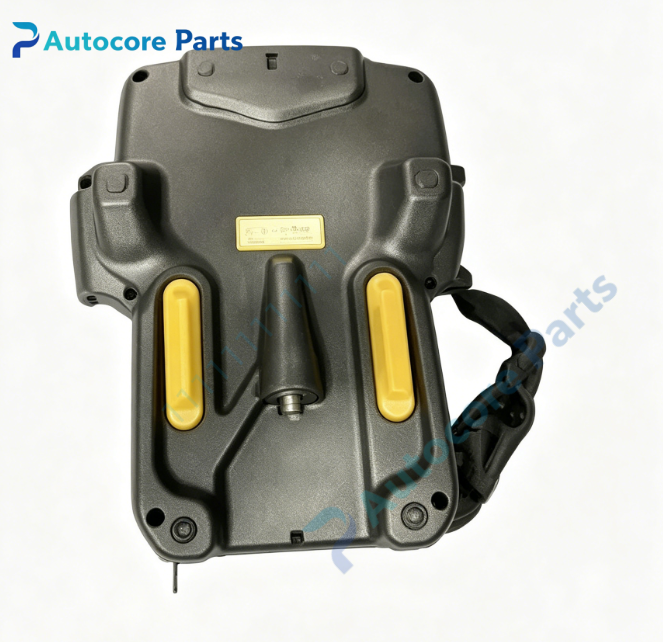

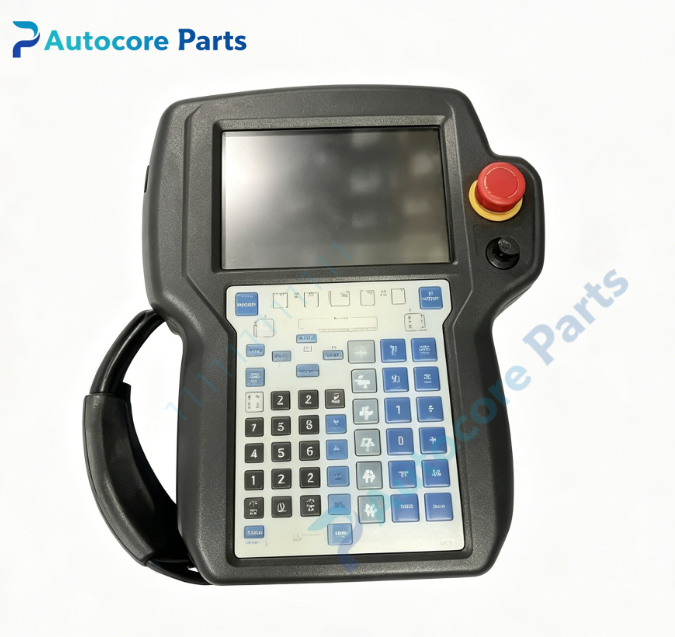

FANUC iPendant Robot Teach Pendant P/N A05B-2490

Technical Specifications

Model:A05B-2490 (base series number,complete suffix:C102,C170,C172,C371 etc)

Brand:FANUC

System compatibility:iPendant teach pendant series for FANUC R-J3iB and R30iB / R30iA robot controllers. Different suffix versions correspond to general handling,arc welding and spot welding types. Connected to robot cabinet via dedicated teach pendant cable,widely applied in material handling,arc welding and spot welding robots.

Function:Handheld robot programming and operation terminal. Supports robot axis jog,teach point recording,robot program editing,parameter modification and alarm diagnosis. Welding versions have dedicated shortcut keys for welding parameter setup. Built-in three-position deadman safety switch and emergency stop button to ensure manual teaching safety. Color LCD + membrane keypad,some versions with touch screen.

Installation:Handheld portable unit,connect to robot controller with matching teach pendant cable.

Interface:

‑Teach pendant communication connector

‑Color LCD display

‑Membrane function keypad (welding overlay optional)

‑3-position deadman safety switch

‑Red emergency stop pushbutton

‑System status LED indicators

Circuit feature:Touch/keyboard scanning circuit,hardwired safety protection circuit,anti-drop and anti-vibration design for workshop environment.

Feature:Legacy discontinued FANUC robot teach pendant series. Suffix code defines function type: general handling,arc welding or spot welding variant. Common faults:screen damage,keypad wear,deadman switch aging,communication connector pin corrosion. Full complete part number with suffix must be confirmed before replacement.

Diagnostic:Damaged pendant triggers teach pendant communication alarm;screen displays robot running state and fault information.

Power supply:24VDC,supplied by robot controller

Protection class:IP54

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑80% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:1.05kg

Dimensions:245mm ×165mm ×60mm

Certification:CE

Built‑in function

A05B-2490 series iPendant teach pendant is human-machine operation terminal for FANUC robot system,used for manual jogging,program teaching,parameter setting and fault diagnosis. Widely used for FANUC robot spare‑part replacement.

Product Brief

A05B-2490 belongs to FANUC A05B robot spare parts family,iPendant handheld teach pendant base series. Different suffix decides function overlay and compatibility. Verify robot controller model,software version and teach pendant cable before ordering. Inspect E-stop,deadman switch and display function during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
