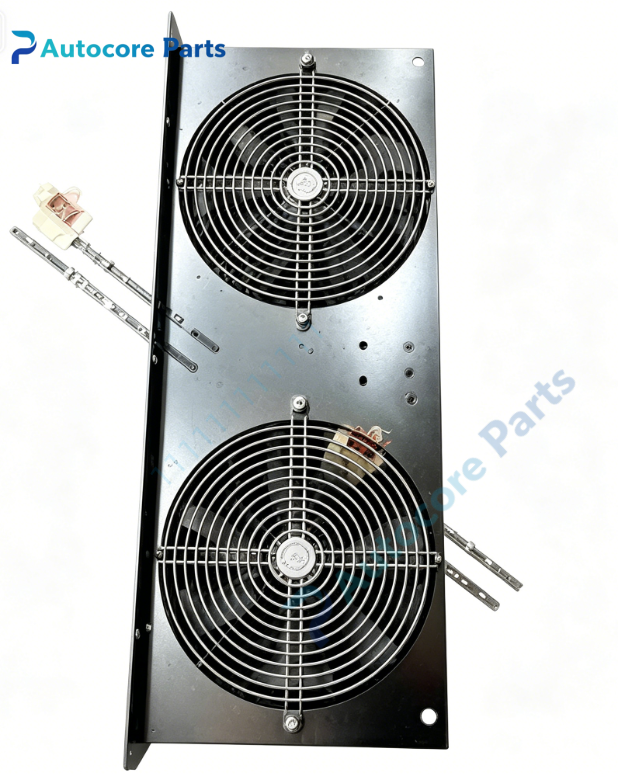

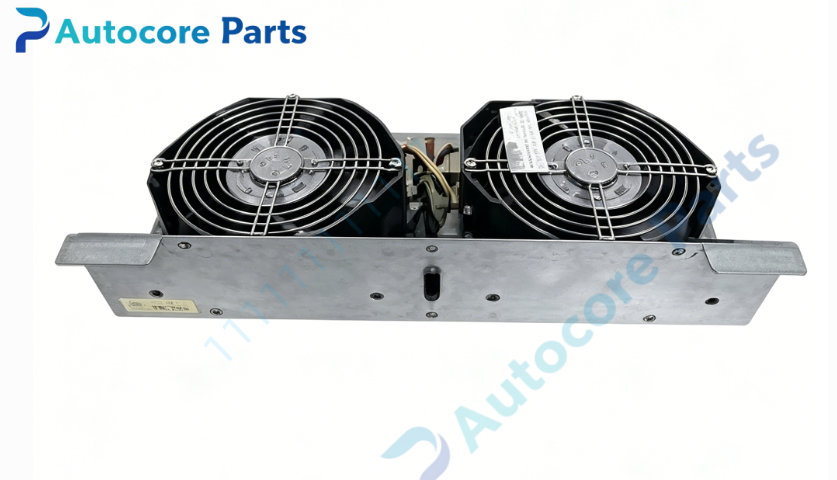

FANUC Dual Fan Assembly P/N A05B-2452-C900

Technical Specifications

Model:A05B-2452-C900

Brand:FANUC

System compatibility:Dual cooling fan assembly for FANUC robot controller cabinet. Installed inside robot electrical cabinet,widely used for large power handling and welding robot systems.

Function:Integrated double fan cooling unit. Discharges heat generated by servo amplifiers and mainboard inside robot cabinet,keeps internal temperature within normal operating range,prevents over-temperature alarm and component thermal damage. Equipped with fan feedback signal for running state monitoring.

Installation:Fixed mounting inside robot control cabinet,wiring connected to robot internal power and I/O signal circuit.

Interface:

‑240VAC power wiring terminal

‑Fan speed / fault feedback signal connector

‑Two built-in cooling fans

‑Metal mounting frame and protective grille

‑Dust filter

Circuit feature:Fan power drive circuit,fan failure signal detection circuit,overload protection.

Feature:Legacy discontinued FANUC robot cabinet cooling assembly. Dual fan design for high heat load cabinet. Common faults:fan bearing wear,blade damage,fan stop,feedback signal abnormality. Verify robot cabinet model before replacement.

Diagnostic:Fan stall or abnormal speed triggers robot over-temperature / fan alarm;system detects fan feedback signal loss.

Power supply:240VAC

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:5kg

Dimensions:400mm ×200mm ×100mm

Certification:CE

Built‑in function

A05B-2452-C900 dual fan assembly dissipates heat inside FANUC robot control cabinet,protects servo and control boards from high temperature damage. Widely used for FANUC robot cabinet spare‑part replacement.

Product Brief

A05B-2452-C900 belongs to FANUC A05B robot spare parts family,robot cabinet dual cooling fan assembly. Verify robot controller cabinet model before ordering. Check fan rotation,noise and fault feedback signal during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
