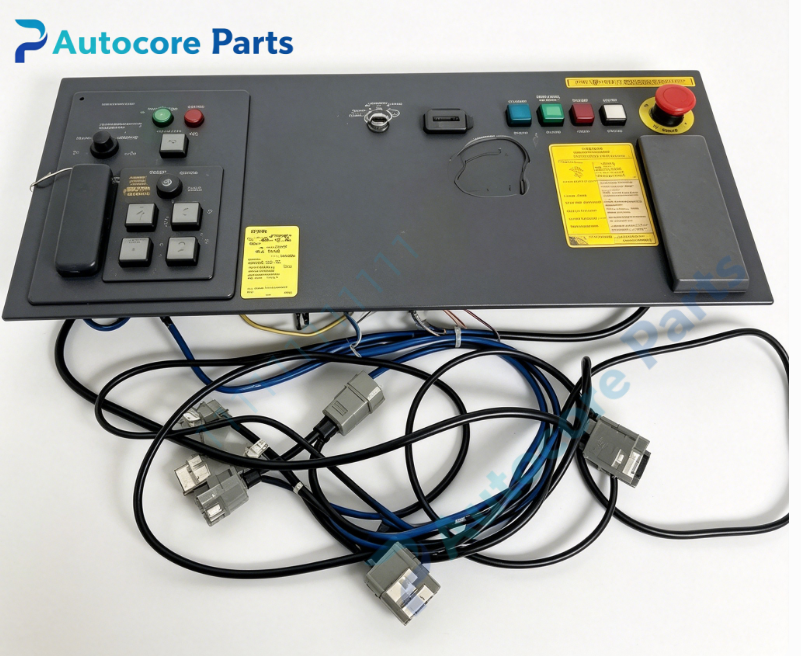

FANUC Robot Operator Panel P/N A05B-2452-C020

Technical Specifications

Model:A05B-2452-C020

Brand:FANUC

System compatibility:Front cabinet operator panel for FANUC robot controller. Installed on robot control cabinet door,matched with corresponding robot main control system,widely used for handling and welding robot systems.

Function:Integrated cabinet door operation panel. Equipped with brake enable switch,axis selection switch,purge enable button,status indicator lamps for purge complete and fault. Realizes robot brake release,axis group selection and system state local indication on cabinet side.

Installation:Mounted on the front door of robot electrical cabinet,wiring connected to internal robot I/O circuit.

Interface:

‑Screw terminal block for internal cabinet wiring

‑Brake enable key switch

‑Axis selector switch

‑Purge enable pushbutton

‑Purge complete / fault LED indicators

‑Safety signal contact terminals

Circuit feature:Safety signal hard-wired circuit,signal isolation,surge suppression,anti-vibration design for workshop cabinet environment.

Feature:Legacy discontinued FANUC cabinet door operation panel. Compact integrated panel design for local cabinet operation. Common faults:switch contact wear,indicator lamp burnout,internal circuit damage. Verify robot controller model before replacement.

Diagnostic:Abnormal panel will cause brake enable signal failure or purge alarm;LED indicators display system running and fault status.

Power supply:24VDC

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:1.18kg

Dimensions:240mm ×180mm ×40mm

Certification:CE

Built‑in function

A05B-2452-C020 robot operator panel provides local cabinet-side operation and status indication for FANUC robot system,realizing brake enable and axis selection control. Widely used for FANUC robot electrical cabinet spare‑part replacement.

Product Brief

A05B-2452-C020 belongs to FANUC A05B robot spare parts family,cabinet door integrated operator panel. Verify robot controller model and internal I/O wiring definition before ordering. Check switch contact and indicator function during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
