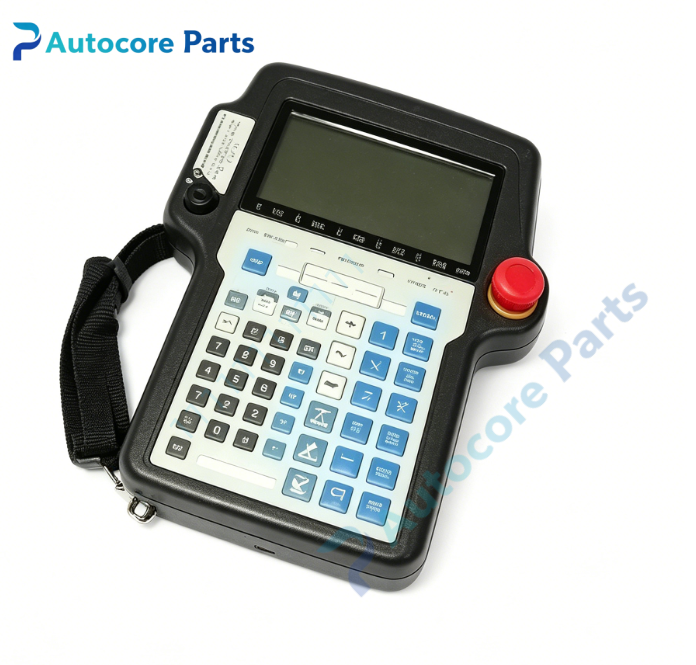

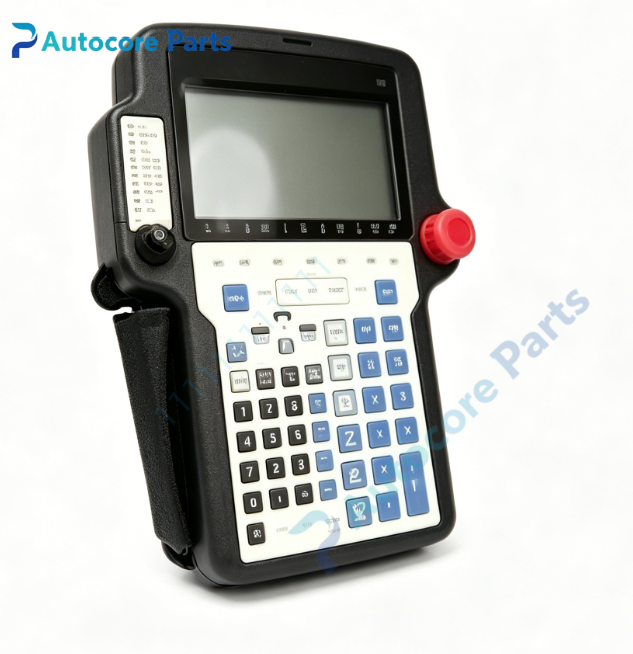

FANUC Spot Welding Teach Pendant P/N A05B-2301-C370

Technical Specifications

Model:A05B-2301-C370

Brand:FANUC

System compatibility:Spot welding dedicated teach pendant for FANUC R-J3iB robot controller. Built-in spot welding function overlay,mainly used for spot welding robots,also compatible with arc welding and handling robots of R-J3iB series. Connected to robot cabinet by dedicated teach pendant cable.

Function:Handheld robot operation and programming terminal. Supports robot axis jog,teaching point recording,robot program editing,welding parameter adjustment,alarm display and fault diagnosis. Equipped with red emergency stop button and three-position deadman safety switch to guarantee manual teaching safety. Membrane keypad + LCD screen,non-touch design.

Installation:Handheld portable unit,connect to robot controller via dedicated teach pendant cable.

Interface:

‑Teach pendant communication connector

‑LCD display screen

‑Membrane keypad with spot welding shortcut keys

‑3-position deadman safety switch

‑Red emergency stop pushbutton

‑Running status LED indicators

Circuit feature:Keyboard scanning circuit,safety hard-wired protection circuit,anti-drop and vibration resistant design for welding workshop environment.

Feature:Legacy discontinued FANUC R-J3iB spot welding special teach pendant. The keypad integrates spot welding dedicated function keys for quick adjustment of welding parameters. Common faults:keypad aging,display dim or broken,deadman switch wear,connector pin damage. Must verify R-J3iB controller and cable compatibility before replacement.

Diagnostic:Damaged pendant triggers teach pendant communication alarm on robot controller;screen displays robot running status and fault information.

Power supply:24VDC,supplied by robot controller

Protection class:IP54

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑80% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:1.32kg

Dimensions:270mm ×170mm ×65mm

Certification:CE

Built‑in function

A05B-2301-C370 spot welding teach pendant serves as human-machine interface for FANUC R-J3iB robot. It completes manual jogging,program teaching and spot welding parameter setting. Widely used for FANUC robot spare‑part replacement.

Product Brief

A05B-2301-C370 belongs to FANUC A05B robot spare parts family,R-J3iB spot welding dedicated non-touch teach pendant. Verify robot controller model and teach pendant cable before ordering. Check emergency stop,deadman switch and welding shortcut keys during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
