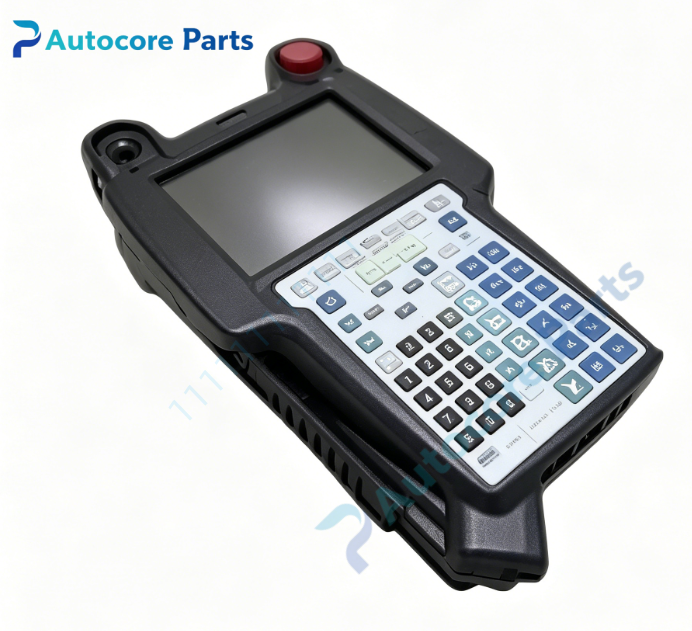

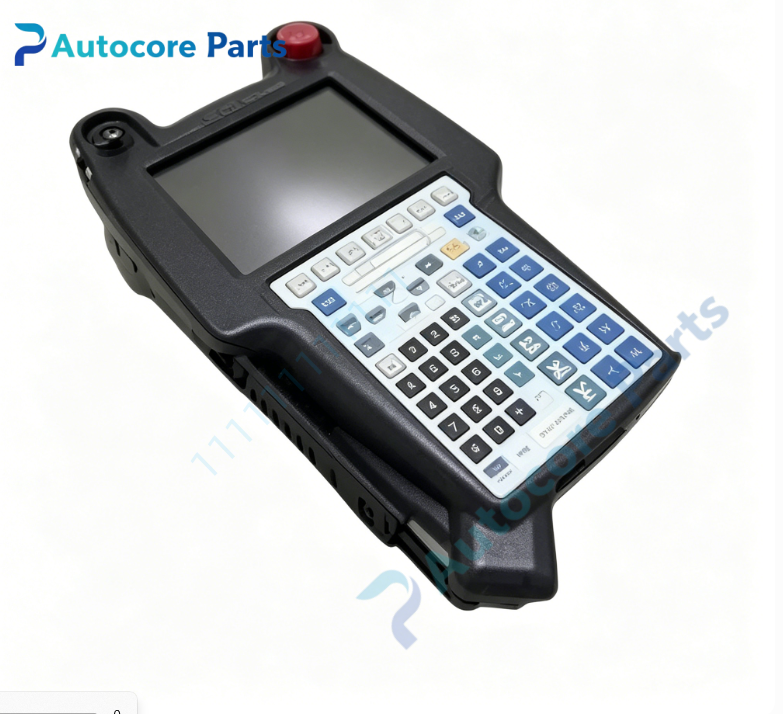

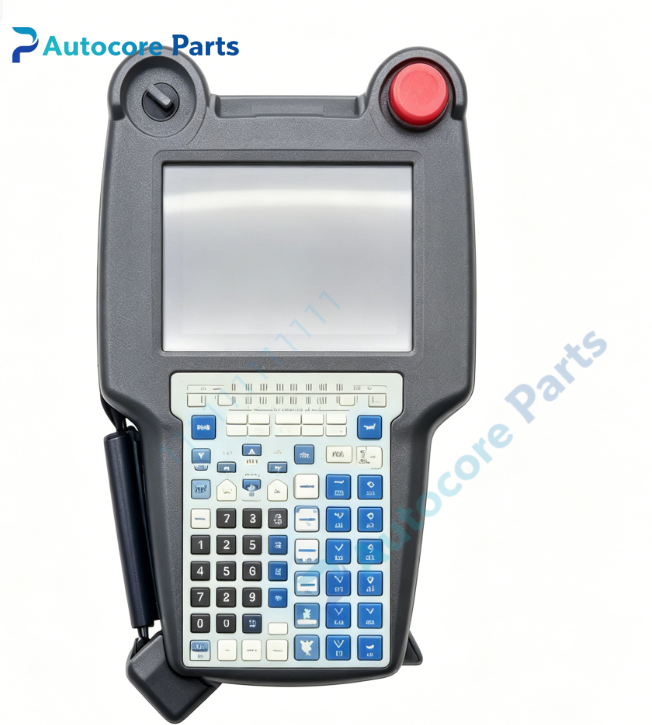

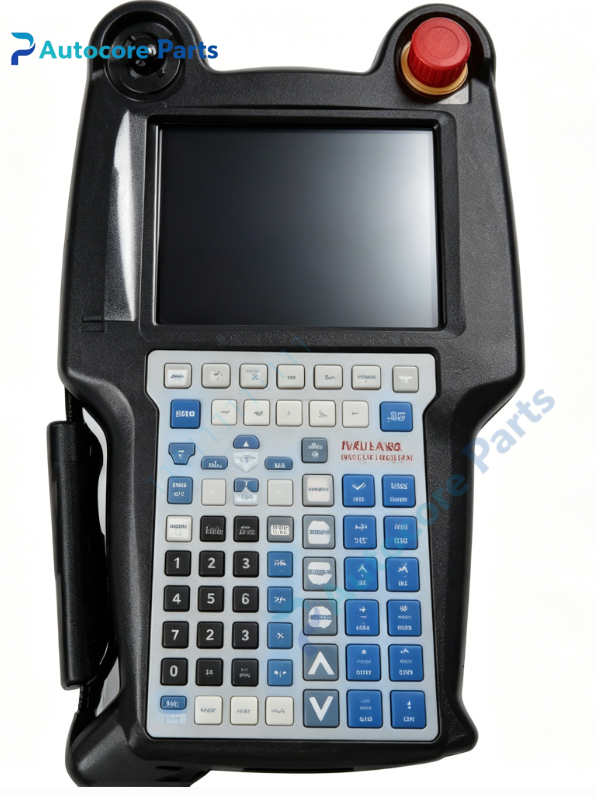

FANUC iPendant Robot Teach Pendant P/N A05B-2518-C204

Technical Specifications

Model:A05B-2518-C204

Brand:FANUC

System compatibility:iPendant teach pendant for FANUC R30iA robot controller,mainly for material handling robots. Different suffix (#SGL/#EMH) defines language and function version. Connected to robot cabinet with dedicated teach pendant cable.

Function:Handheld robot operation and programming terminal. Realizes robot axis jog,teaching point recording,program editing,parameter setting and alarm diagnosis. Equipped with red emergency stop button and three-position deadman safety switch for manual teaching safety. Keypad operation,non-touch screen design.

Installation:Handheld portable unit,connect to robot controller via dedicated teach pendant cable.

Interface:

‑Teach pendant communication connector

‑Color LCD display

‑Membrane keypad

‑3-position deadman safety switch

‑Red emergency stop pushbutton

‑Running status LED indicators

Circuit feature:Keyboard scanning circuit,hardwired safety circuit,anti-drop and vibration resistant design for workshop environment.

Feature:Legacy FANUC R30iA teach pendant for material handling robot. Non-touch screen type. Common faults:keypad wear,display screen aging,deadman switch fatigue,connector pin damage. Confirm suffix code and robot controller model before replacement.

Diagnostic:Damaged pendant triggers teach pendant communication alarm on robot controller;screen shows robot operating status and fault information.

Power supply:24VDC,supplied by robot controller

Protection class:IP54

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑80% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:0.92kg

Dimensions:245mm ×165mm ×60mm

Certification:CE

Built‑in function

A05B-2518-C204 iPendant teach pendant acts as human-machine interface for FANUC R30iA robot,completes manual jogging,program teaching and fault diagnosis. Widely used for FANUC robot spare‑part replacement.

Product Brief

A05B-2518-C204 belongs to FANUC A05B robot spare parts family,R30iA material handling robot non-touch iPendant. Verify robot controller and teach pendant cable compatibility before ordering. Check emergency stop,deadman switch and keypad function during commissioning. Widely applied for robot equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
