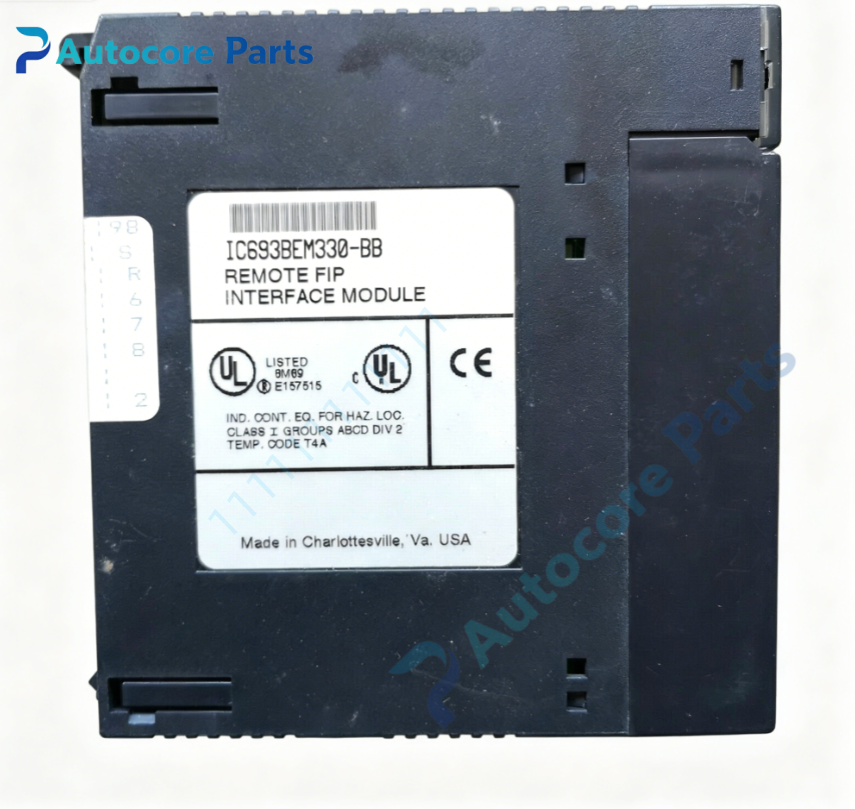

GE Fanuc IC693BEM330-BB FIP Remote I/O Scanner Module

Technical SpecificationsModel：IC693BEM330-BB Brand：GE Fanuc Product Type: Single-slot plug-in FIP remote I/O scanner module for Series90-30 PLC rack

Module Feature:Function: FIP remote I/O scanner module, connect Series90-30 PLC to FIP fieldbus remote I/O nest,real-time data exchange between local CPU and distributed FIP I/O modules. Bus speed:1MHz Ports:2 × 9-pin D-sub FIP bus connectors for redundant bus connection; external synchronization signal port Max I/O modules supported:Up to 19 I/O modules on dual baseplates DIP switch:Select FIP or WorldFIP protocol LED indicators:CD1,CD2 carrier detection; TEN1,TEN2 transmit enable status lights Support input filtering and chatter detection; pulsed / blink output function Hardware self-diagnosis:bus carrier detection, communication timeout, module internal error Backplane bus communication with Series90-30 CPU Must install in slot 1 of main rack

Electrical ParametersBackplane supply:+5VDC, power consumption 0.609A FIP bus:External bus power supply

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 main rack slot 1 Protection class:IP20 Weight:0.21kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibilityIC693BEM330-BB belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 CPU and I/O modules. Widely used for factory automation, automotive production line and process control FIP distributed I/O system.

FunctionIC693BEM330-BB is dedicated FIP remote I/O scanner manufactured by GE Fanuc for Series90-30 PLC. It scans FIP bus remote I/O nest, exchange digital and analog I/O data with PLC main CPU. Dual FIP ports support redundant bus wiring to improve system reliability. Sync interface can receive external synchronization trigger signal. Built-in signal filtering eliminates input chatter. Front panel LED indicators show bus carrier and transmit status for fast troubleshooting.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power and FIP bus power. Insert IC693BEM330-BB into main rack slot 1 and lock retention latch. Connect dual FIP bus cables and synchronization wiring if needed. Set FIP/WorldFIP via DIP switch, configure hardware in programming software. Power on and verify bus online and I/O data exchange.

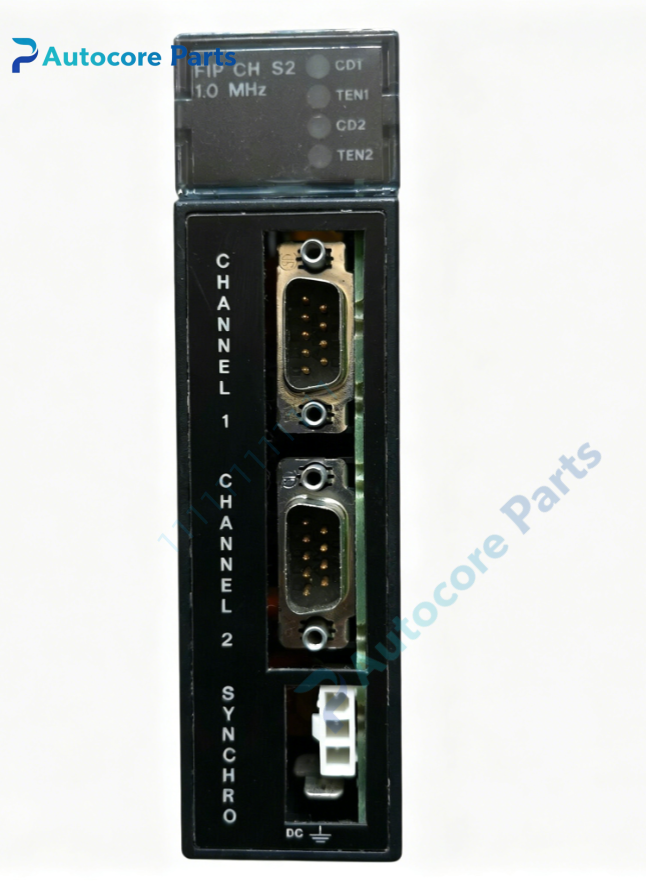

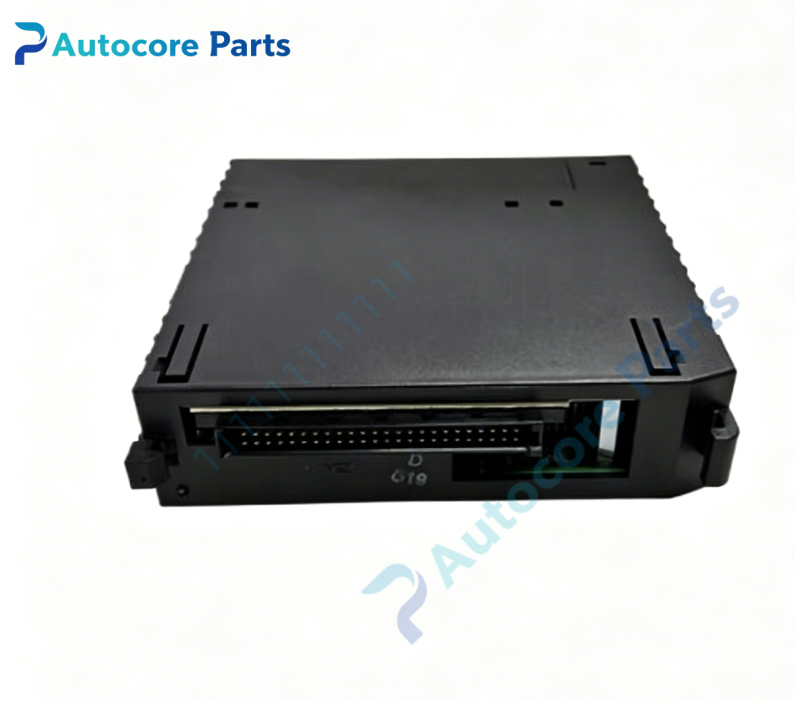

InterfaceSeries90-30 backplane gold-edge connector,dual 9pin D-sub FIP bus port,sync signal terminal,on-board status LED indicators,DIP switch for GE Fanuc IC693BEM330-BB.

DiagnosticCD LED off:No FIP bus carrier,check bus power,cable and termination. Intermittent I/O dropout:Inspect cable shielding,ground potential and DIP switch protocol setting. Module communication fault:Check module slot position,backplane power and firmware version matching.

Product BriefIC693BEM330-BB is GE Fanuc legacy Series90-30 FIP remote I/O scanner module,with redundant dual FIP 1MHz bus ports for distributed fieldbus I/O system,discontinued fieldbus spare card.
