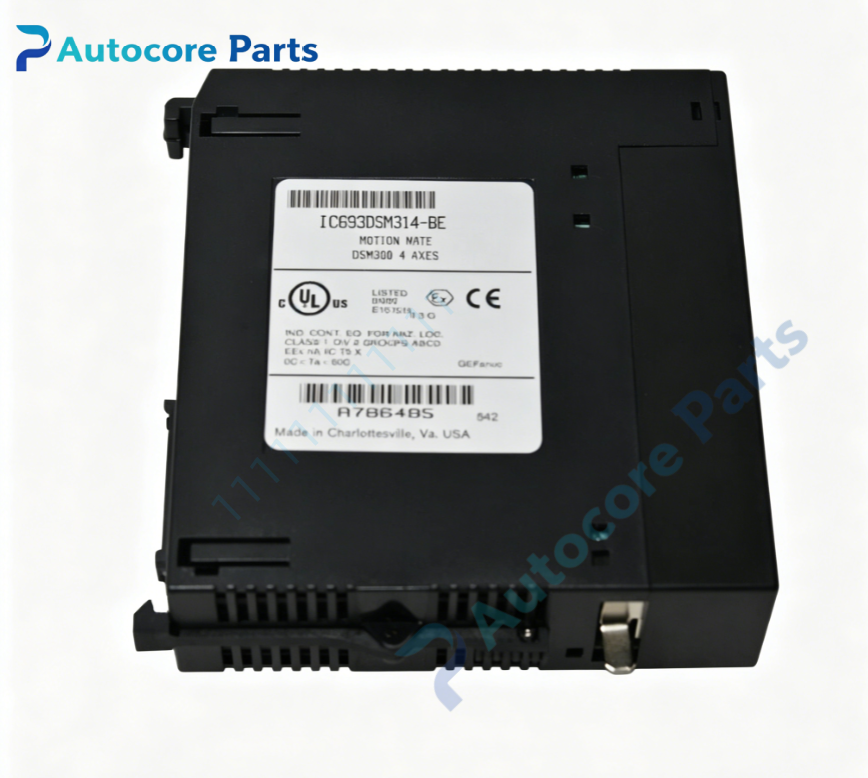

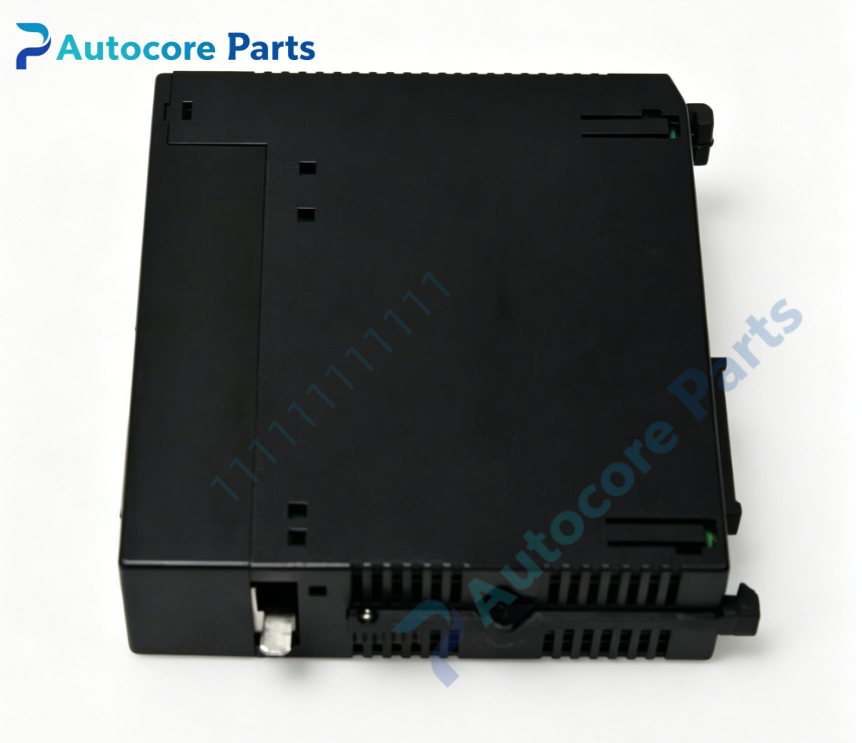

GE Fanuc IC693DSM314-BE Digital Servo Motion Module

Technical SpecificationsModel：IC693DSM314-BE Brand：GE Fanuc Product Type: Single-slot plug-in Motion Mate digital servo motion module for Series90-30 PLC rack

Module Feature:Function: Multi-axis servo motion control module with independent DSP processor, execute closed-loop servo algorithm locally, offload motion tasks from Series90-30 CPU. Max axes: Up to 4 analog servo axes or mixed digital/analog servo configuration Motion function: Point-to-point positioning, linear/circular interpolation, electronic gearing, electronic cam, registration capture, jog, homing Encoder interface: Differential quadrature encoder input for each axis I/O terminals: Axis enable, fault reset, home, positive/negative overtravel limit, registration input Programming: Motion function blocks within Ladder Diagram; motion profile stored onboard module LED indicators: Module OK, Axis status, Fault alarm indicators Hardware self-diagnosis: encoder loss, overtravel, servo amplifier fault, output short, module internal error Backplane bus communication with Series90-30 CPU Support axis synchronization and high-speed registration for cutting/printing applications

Electrical ParametersBackplane supply:+5VDC, power consumption 1.0A Encoder signal:5V differential line driver Field I/O power:External 24VDC for limit, home and registration signals

Mechanical & Structure:Mounting:Plug-in installation into Series90-30 rack slot Protection class:IP20 Weight:0.80kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibilityIC693DSM314-BE belongs to GE Fanuc Series90-30 PLC family. Compatible with Series90-30 CPU, backplane, power supply and I/O modules. Widely used for packaging machinery, material handling, printing equipment and automated assembly lines.

FunctionIC693DSM314-BE is Motion Mate multi-axis digital servo module manufactured by GE Fanuc for Series90-30 PLC. It uses onboard DSP to run high-speed servo loops independently of PLC scan cycle. It controls up to four analog servo drives, supports electronic cam and electronic gearing for synchronized motion. Registration input can capture mark signal for cut-to-length applications. Built-in fault detection protects mechanical equipment. Front LEDs display module health and each axis online/fault status.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power and field 24VDC power. Insert IC693DSM314-BE into vacant rack slot and lock retention latch. Connect servo analog command cables, encoder feedback cables and limit/home/registration wiring. Configure axis parameters and motion programs. Power on, perform motor tuning and test homing and synchronized motion.

InterfaceSeries90-30 backplane gold-edge connector,multi-axis servo command terminal block,quadrature encoder ports,digital I/O terminals,on-board status LED indicators for GE Fanuc IC693DSM314-BE.

DiagnosticAxis cannot enable:Check field 24V,enable signal,servo amplifier power and axis parameter setup. Synchronization error:Inspect encoder cable shielding,registration sensor and cam/gear parameters. Module fault LED active:Troubleshoot encoder loss,overtravel,short circuit or firmware fault.

Product BriefIC693DSM314-BE is GE Fanuc legacy Series90-30 Motion Mate multi-axis digital servo module,with onboard DSP for synchronized motion,electronic cam and gearing,discontinued motion control spare card.
