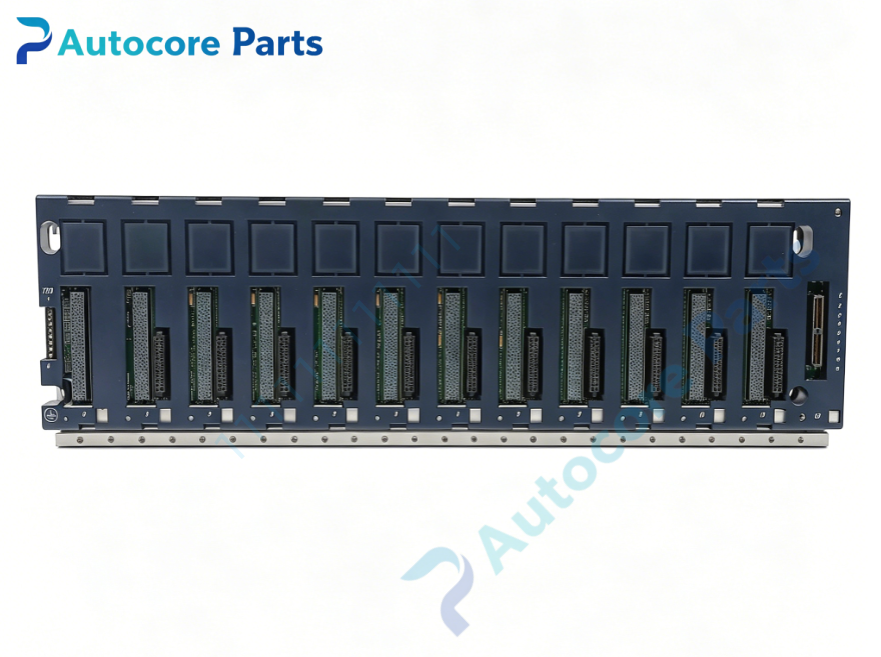

GE Fanuc IC695CHS012-BA Universal Backplane

Technical SpecificationsModel：IC695CHS012-BA Brand：GE Fanuc Product Type: 12-slot universal dual-bus backplane for PACSystems RX3i PLC rack

Module Feature:Function: Dual-bus universal backplane, provides PCI bus and serial expansion bus for RX3i system, serves as mechanical mounting and communication backbone for CPU, power supply and I/O modules. Slots: Total 12 slots. The rightmost slot supports IC695LRE001 serial expansion module. Bus type: Dual bus, PCI bus for IC695 modules; serial bus for IC694 / Series90-30 I/O modules Hot swap: Support hot-swap replacement of I/O modules under qualified system configuration Built-in: Isolated 24V terminal strip, integrated grounding bar for shield and module ground, serial expansion connector, slot number marking Hardware revision BA: Early hardware revision of 12-slot RX3i universal backplane Backplane self-check: Bus integrity monitoring, grounding inspection

Electrical ParametersBackplane consumption:600mA @3.3VDC, 240mA @5VDC Field 24V isolated terminal for external wiring

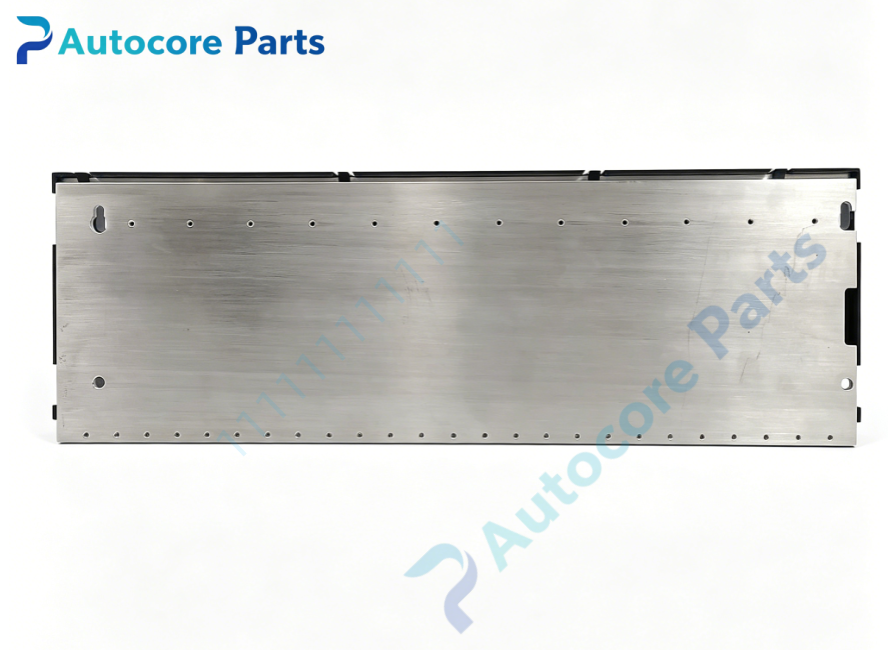

Mechanical & Structure:Mounting: Cabinet rack mount Dimension:457.2mm ×141.4mm ×147.3mm Weight:3.0kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695CHS012-BA belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i IC695 CPU, power supply, IC694 and Series90-30 I/O modules. Widely used in power plant, chemical, water treatment and factory automation control racks.

FunctionIC695CHS012-BA is 12-slot dual-bus universal backplane for RX3i PACSystems. It integrates PCI and serial bus, so users can mix IC695, IC694 and Series90-30 modules on one rack. The built-in grounding bar optimizes EMC performance. The serial expansion port can connect additional remote backplanes. Hot-swap function reduces system downtime during module maintenance. BA represents the early hardware revision of this 12-slot baseplate.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Mount backplane inside control cabinet rack. Install power supply, CPU and I/O modules into corresponding slots. Connect 24V isolated terminal and shield ground to the integrated grounding bar. Connect serial expansion cable if needed. Configure hardware in Proficy Machine Edition. Power on and verify all modules online.

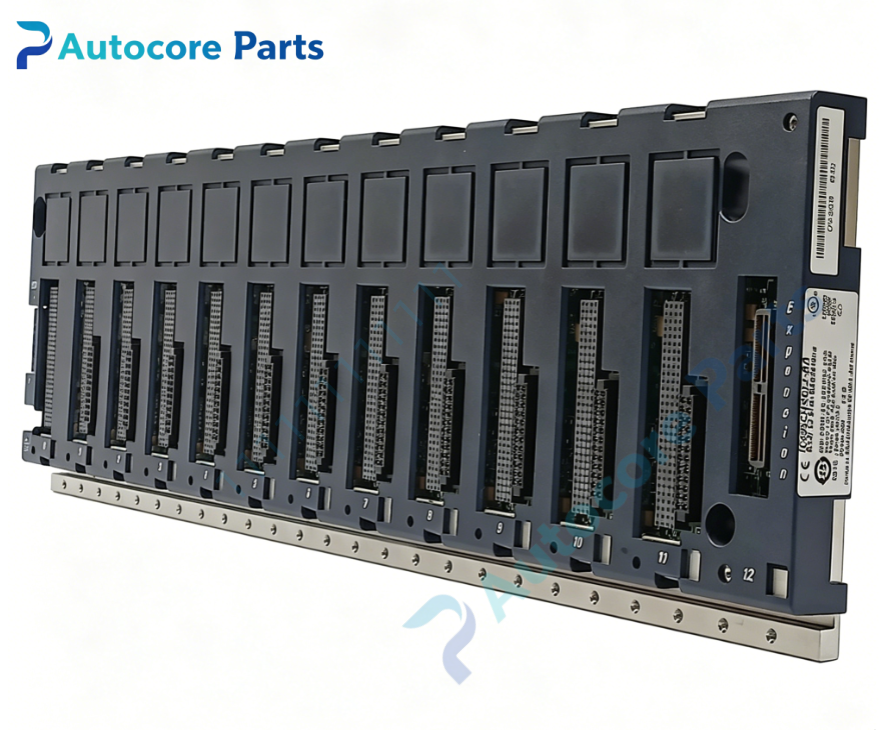

InterfaceRX3i backplane gold-edge connector,isolated 24V terminal block,serial expansion port,grounding bar,slot marking for GE Fanuc IC695CHS012-BA.

DiagnosticModule cannot online:Check module fully seated into backplane slot,connector contact condition. Intermittent communication:Inspect backplane ground connection, cabinet grounding and module retention clip. Expansion rack offline:Check serial expansion cable and IC695LRE001 module configuration.

Product BriefIC695CHS012-BA is GE Fanuc legacy PACSystems RX3i 12-slot universal dual bus backplane,supports mixed IC695/IC694/Series90-30 modules and hot swap,discontinued PLC rack baseplate spare.
