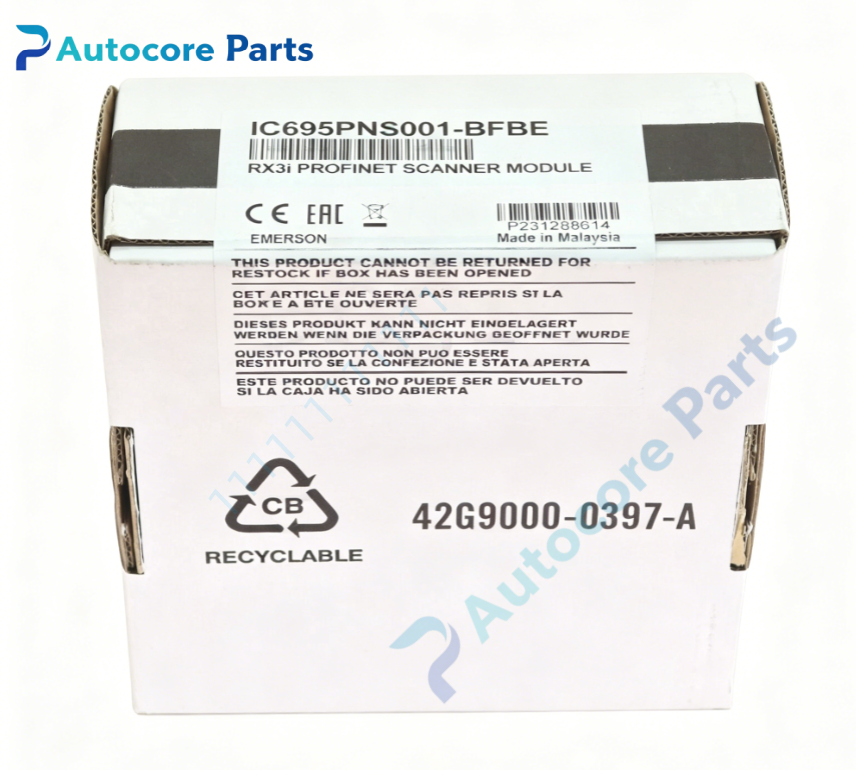

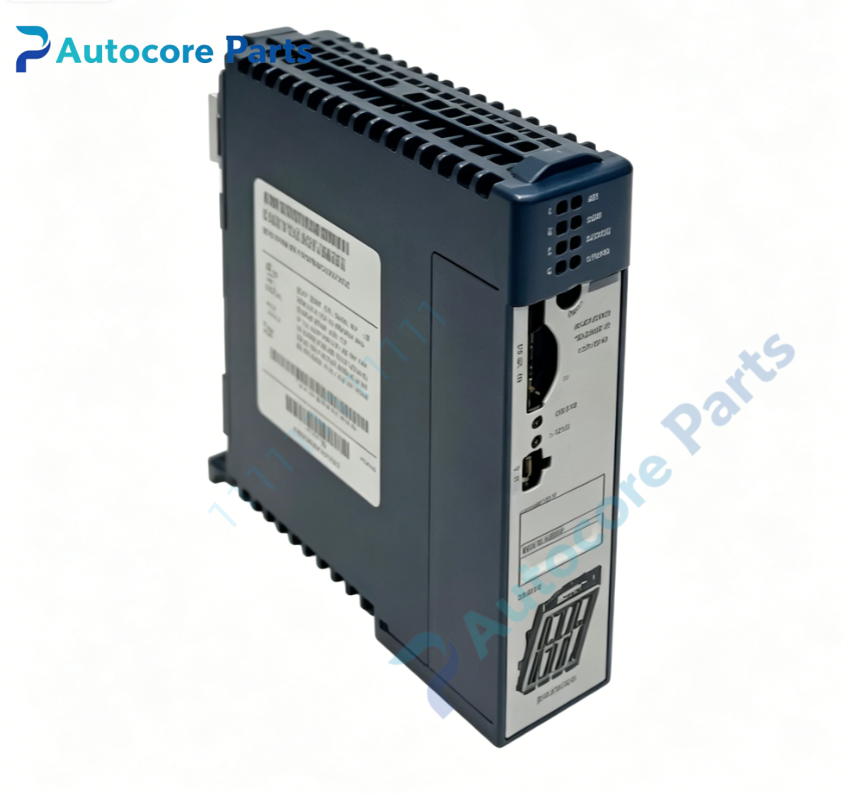

GE Fanuc IC695PNS001-BF PROFINET Scanner Module

Technical SpecificationsModel：IC695PNS001-BF Brand：GE Fanuc Product Type: Single-slot plug-in PROFINET Scanner module for PACSystems RX3i universal backplane

Module Feature:Function: PROFINET IO scanner module, connects RX3i remote I/O rack to PROFINET IO controller, exchanges cyclic I/O data between PROFINET master and local RX3i/Series90-30 I/O modules. Ports: 4 switched Ethernet ports, 2 × RJ45 copper, 2 × SFP fiber slots Speed: 10/100/1000 Mbps auto negotiation; PROFINET IO operates at 100Mbps or 1Gbps Max I/O data: 1440 bytes input,1440 bytes output per rack Topology support: Star, linear and ring topology SD card slot: SD card for firmware and hardware configuration backup USB micro port: For local firmware upgrade LED indicators: MODULE OK, LAN, STATUS diagnostic lights Hot-swap capable under qualified system configuration Hardware self-diagnosis: link fault, network interruption, module internal error, I/O watchdog monitoring Programming software: Proficy Machine Edition BF = hardware revision BF

Electrical ParametersBackplane supply:+5VDC, power consumption 4.2W

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Protection class:IP20 Weight:0.42kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695PNS001-BF belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i CPU, power supply, RX3i and Series90-30 I/O modules. Widely used in automotive, packaging, water treatment and process automation to integrate RX3i rack into PROFINET IO network.

FunctionIC695PNS001-BF is PROFINET IO scanner for GE Fanuc RX3i PACSystems. It acts as PROFINET IO device, scans all I/O modules inside local RX3i rack and exchanges real-time I/O data with PROFINET IO controller. Dual RJ45 and dual SFP ports support copper or fiber media and flexible network topology. SD card saves configuration backup for quick module replacement. Front LED indicators show module health and network running status.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695PNS001-BF into vacant RX3i slot and lock retainer. Connect RJ45 Ethernet or SFP fiber cable. Configure PROFINET device name, update cycle and failsafe parameters in Proficy Machine Edition. Power on and verify network link and cyclic I/O data exchange.

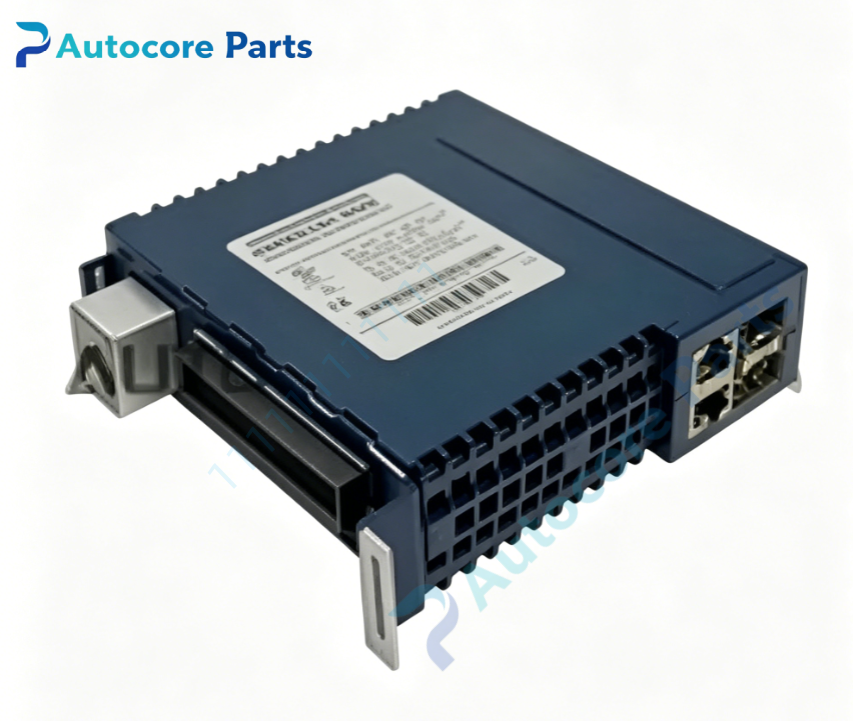

InterfaceRX3i backplane gold-edge connector,2×RJ45 port,2×SFP slot,micro USB port,SD card slot,on-board MODULE OK / LAN / STATUS LED indicators for GE Fanuc IC695PNS001-BF.

DiagnosticModule cannot online:Check backplane power,module seating and backplane contact condition. PROFINET link lost:Inspect Ethernet / fiber cable,device name matching and network switch. STATUS fault alarm:Watchdog timeout,I/O configuration mismatch or module internal hardware error.

Product BriefIC695PNS001-BF is GE Fanuc legacy PACSystems RX3i PROFINET IO scanner module with 4-port switch (2RJ45+2SFP),used to connect RX3i I/O rack to PROFINET controller,discontinued fieldbus spare card.
