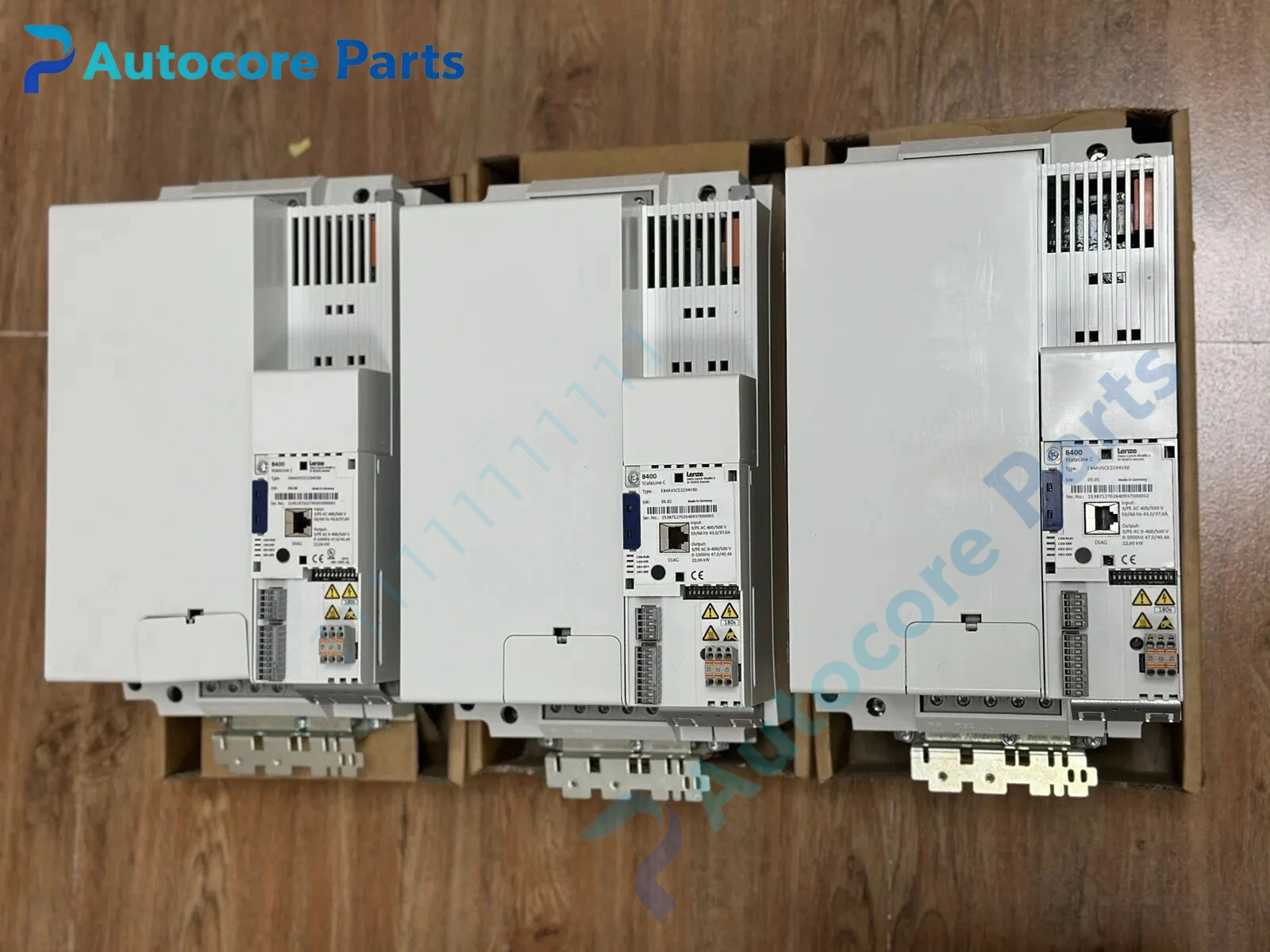

Lenze E84AVSCE2234VX0 8400 StateLine C Frequency Inverter Unit

Module Feature

E84AVSCE2234VX0 is a rack-mounted variable frequency drive of Lenze L-force 8400 StateLine C series.

It is built with conformal coated circuit board for dusty, humid industrial environments. It supports asynchronous motor vector control and V/F control. Integrated EMC filter, brake chopper interface and STO safe torque off are standard. It has internal function block for simple logic without external PLC, supports preset speeds and PID closed-loop process control. It is widely stocked as spare for material handling, water treatment, packaging machine and HVAC control cabinets.

Working principle

Three-phase AC input is rectified to DC bus, then IGBT inverter outputs adjustable voltage and frequency.

The main control board samples voltage, current and motor status continuously, adjusts output according to setpoint. Regenerative energy during deceleration can be dissipated via external braking resistor. The STO circuit cuts off drive pulse safely for emergency stop requirements. It monitors overcurrent, overvoltage, overheat, earth fault and motor loss, and sends alarm via digital output or fieldbus.

Onboard components

Input rectifier assembly, IGBT power module, coated main control PCB, voltage & current sensing circuit, built-in EMC filter, cooling fan, front keypad, STO safety circuit and metal chassis.

LED indicators

Front LEDs indicate power, run, fault, alarm and communication status.

Hardware self‑diagnosis

Drive continuously monitors heat sink temperature, DC bus voltage, output current and STO circuit integrity. Parameters can be modified on local keypad or PC software.

Programming software

Lenze EZ-Software / L-force Engineer, used for motor parameter setup, I/O mapping, communication configuration, fault trace and firmware upgrade.

Electrical & Process Parameters

Model: E84AVSCE2234VX0 Brand: Lenze Device type: 8400 StateLine C variable frequency drive Function: Motor speed regulation, torque control, safety STO and process PID regulation

Mechanical & Structure

Mounting: Panel mounting inside control cabinet Protection class: IP20 Housing: Metal chassis with cooling fan

Environmental

Operating temperature: 0℃ ~ +45℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification: CE Status: Original Lenze automation spare

Installation

Cut off three-phase main power before replacement.

Secure drive firmly on cabinet backplate, connect main power cable, motor cable and braking resistor if used, wire I/O and STO safety circuit, configure motor nameplate data, test speed control, STO and alarm function after commissioning.

Interface

3-phase power terminals, motor output terminals, brake resistor terminals, analog/digital I/O, STO safety terminals, CANopen / Modbus communication port, keypad socket.

Diagnostic

Overcurrent fault: Motor short circuit, cable insulation damage or ramp time too short. Overheat alarm: Fan blocked, dust accumulation or insufficient cabinet airflow. STO trip: Safety circuit open or emergency stop activated.

Product Brief

E84AVSCE2234VX0 inverter, Lenze 8400 StateLine C 22kW coated VFD spare for harsh-environment conveyor, pump and fan variable speed control replacement.
