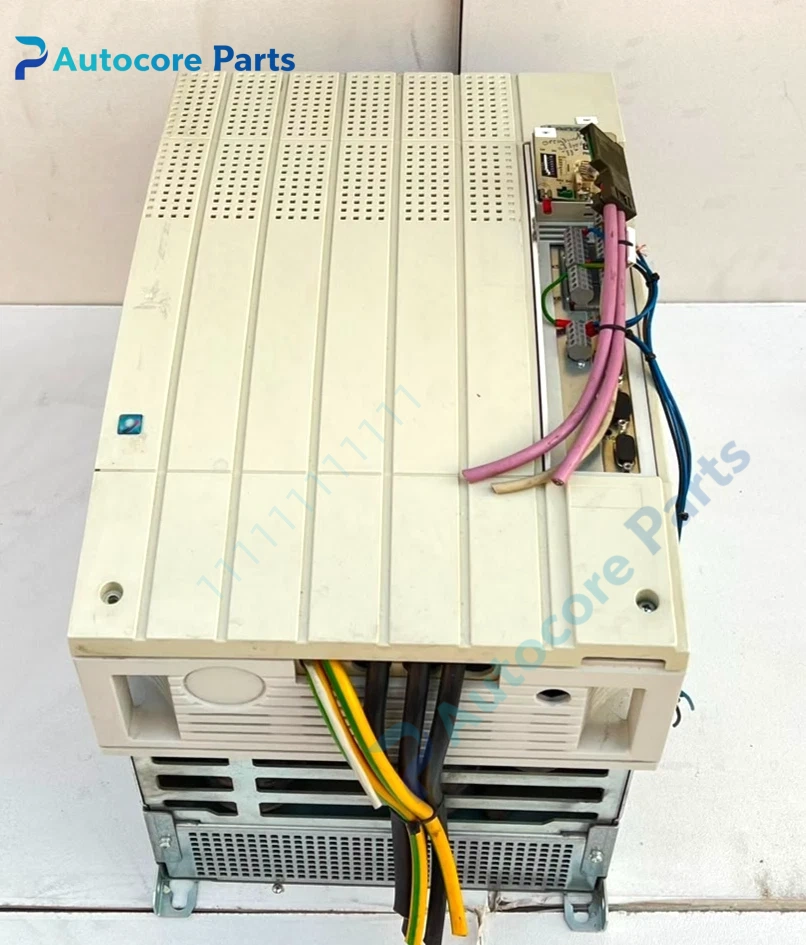

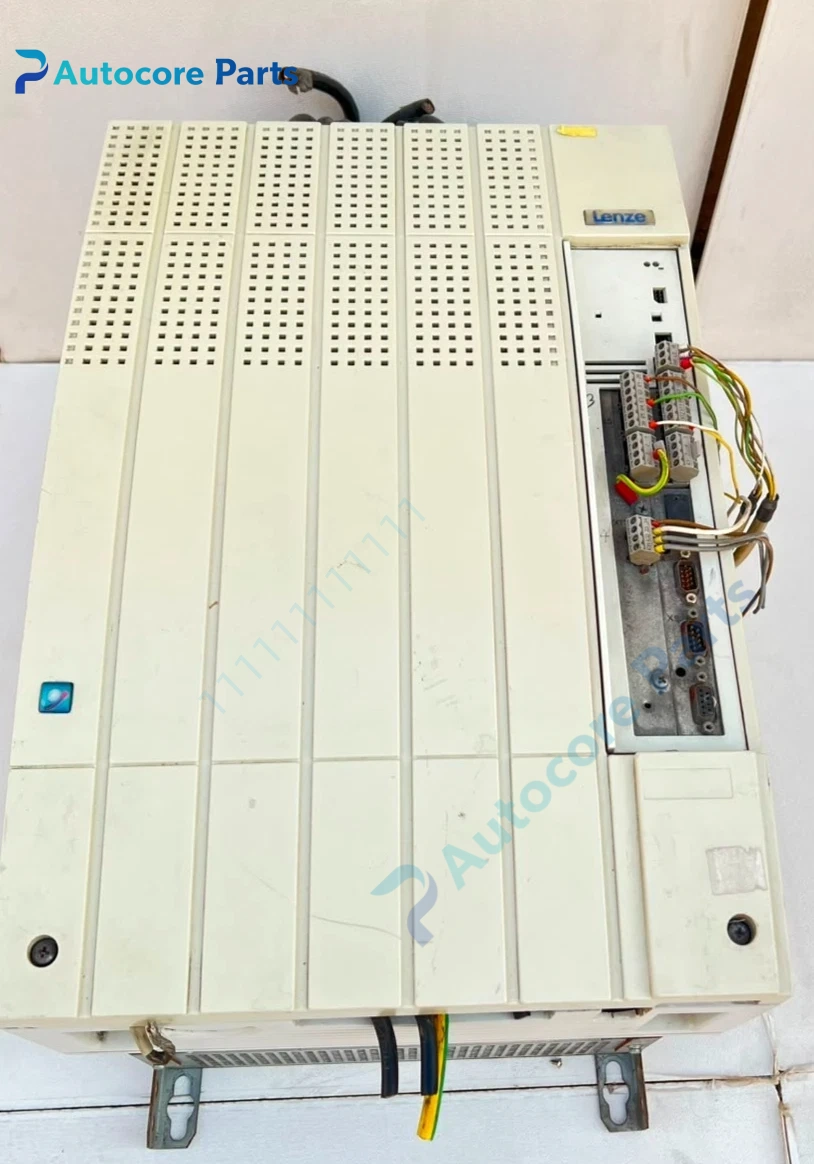

Lenze EVF9330-EVV004 9300 Vector Inverter Unit

Module Feature

EVF9330-EVV004 is Lenze 9300 Vector series vector frequency inverter, rated power 45kW, 3-phase 400V model. This series adopts fully digital vector control architecture, supports closed-loop encoder feedback for asynchronous motors, with high starting torque and dynamic speed regulation performance.

Multiple sets of digital and analog I/O interfaces can be configured, Profibus, CANopen and other communication modules are optional. Built-in brake transistor interface, external brake resistor can be connected for fast stop. Strong overload capacity, suitable for continuous heavy load and periodic impact load scenarios, widely used in extruders, large fans, pumps, conveyor lines and textile equipment main drives.

Working principle

The rectifier unit converts three-phase AC into DC bus voltage. The IGBT power bridge outputs driving waveforms with adjustable frequency and voltage according to vector algorithm. The encoder feedback signal is sent to the control board to correct flux and torque in real time for high-precision speed and torque control.

The drive monitors bus voltage, output current and module temperature in real time, and triggers protective shutdown when abnormal. Parameters and fault records can be read and written via Lenze commissioning software.

Onboard components

3-phase rectifier bridge, IGBT power module, drive board, current sampling transformer, main control CPU board, cooling fan, brake circuit, I/O terminal block, communication expansion slot.

LED indicators

Status LEDs are integrated on the drive panel, indicating power ready, running, fault and communication status respectively.

Hardware self‑diagnosis

The drive performs automatic self-check on power-up. It can detect phase loss, overcurrent, overvoltage, undervoltage, overtemperature, encoder disconnection, communication timeout and other faults, and store fault codes.

Programming software

Lenze Engineer / L-force Engineer, used for motor identification, parameter configuration, curve debugging, fault diagnosis and firmware upgrade.

Electrical & Process Parameters

Model:EVF9330-EVV004 Brand:Lenze Device type:Vector Frequency Inverter Power:45kW Voltage:3×400V AC Control:Vector / V/F Function:Asynchronous motor speed, torque closed-loop regulation

Mechanical & Structure

Mounting:Cabinet vertical installation Protection class:IP20 Housing:Metal chassis with forced air cooling

Environmental

Operating temperature:0℃ ~ +45℃ (derate above 40℃) Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, UL optional Status:Lenze original drive spare

Installation

Install vertically inside the control cabinet and reserve upper and lower ventilation space. Separate power cables and shielded encoder cables. Complete motor auto-tuning, then set control mode, acceleration/deceleration curve and protection threshold. Clean heat sink dust and check fan operation periodically.

Interface

3-phase main power terminals, motor output terminals, 24V control power, analog/digital I/O, encoder feedback port, communication bus terminals, brake resistor terminals.

Diagnostic

Overcurrent: Motor short circuit, earth fault, mechanical jam, excessive parameter gain. Overtemperature: Fan stop, blocked air duct, excessive ambient temperature. Encoder fault: Broken feedback cable, poor shield grounding. Communication loss: Missing bus terminating resistor, address conflict, damaged cable.

Product BriefLenze EVF9330-EVV004 vector inverter, 45kW 400V, closed loop vector control, used for extruder, fan and conveyor heavy-duty motor speed regulation.
