Molex AFR-00340 Fiber Splice Cassette Unit

Module Feature

AFR-00340 belongs to Molex modular splice cassette product line.

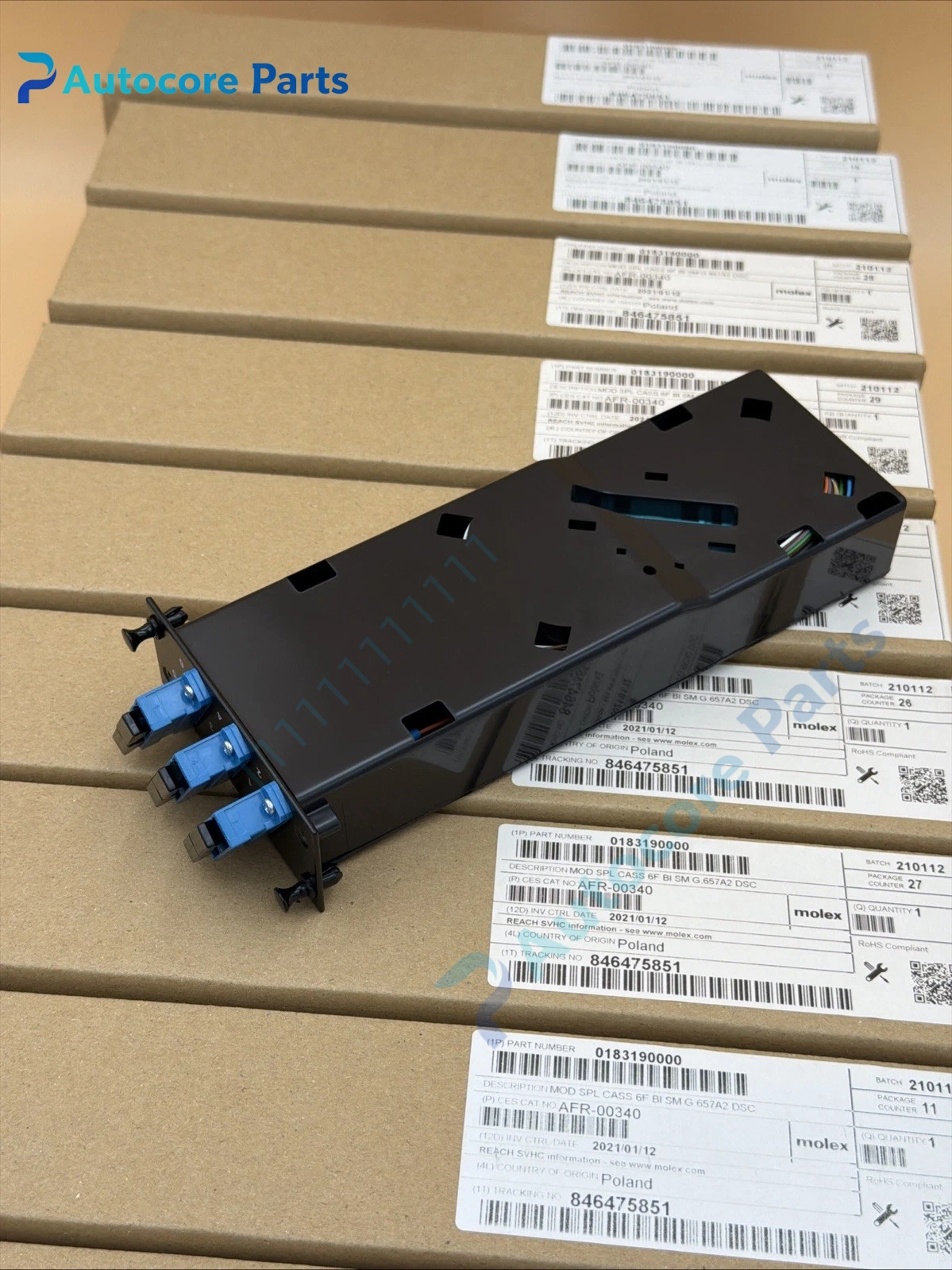

It is pre-configured for 6 singlemode optical fibers, fitted with 3 sets of SC duplex adapters. It adopts hinged ABS plastic housing, built-in fiber routing ribs to maintain minimum bend radius, with dedicated space for fusion splice sleeves and slack fiber coiling. It can be stacked and installed inside Molex rack fiber enclosures, supports upgrade and reconfiguration, widely deployed in enterprise data rooms, telecom communication cabinets and industrial optical automation systems.

Working principle

Fiber pigtails pass through the adapter plate and connect with external patch cords.

The fusion splice joints are fixed inside the cassette, and surplus fiber length is neatly stored in the internal routing area. The cover shields splice points from dust, accidental pulling and crushing damage, stabilizing optical transmission performance for long-term operation.

Onboard components

ABS cassette base, hinged protective cover, SC duplex adapter plate, splice holder slots, fiber routing guides, slack storage cavity.

LED indicators

Not applicable, passive fiber management component.

Hardware self‑diagnosis

No built-in electronic self-diagnosis. Inspection uses optical power meter or OTDR to test insertion loss and detect breakage, excessive bending or dirty end faces.

Programming software

Not applicable.

Electrical & Process Parameters

Model:AFR-00340 Brand:Molex Device type:Modular fiber splice cassette Function:Fiber termination, splice protection and cable routing management for optical distribution system

Mechanical & Structure

Mounting:Installed inside Molex specification-grade fiber enclosure Protection class:IP20 when installed in matched cabinet Housing:ABS engineering plastic shell

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:ISO/IEC 11801, RoHS

Status:Original Molex fiber management spare

Installation

Secure the adapter plate and splice holders inside the cassette.

Arrange splices and coil slack fiber following routing guides, close the cover, insert the cassette into fiber enclosure slot.

Interface

SC duplex adapter ports, fiber inlet routing opening, splice fixing slots.

Diagnostic

High optical insertion loss: Fiber bent below minimum radius, splice offset or connector contamination.

Intermittent signal: Fiber squeezed by cassette cover, loose adapter fixing or pigtail crack.

Product Brief

Molex AFR-00340 splice cassette, 6-fiber singlemode SC duplex fiber management spare for data center and telecom optical distribution cabinet replacement.
