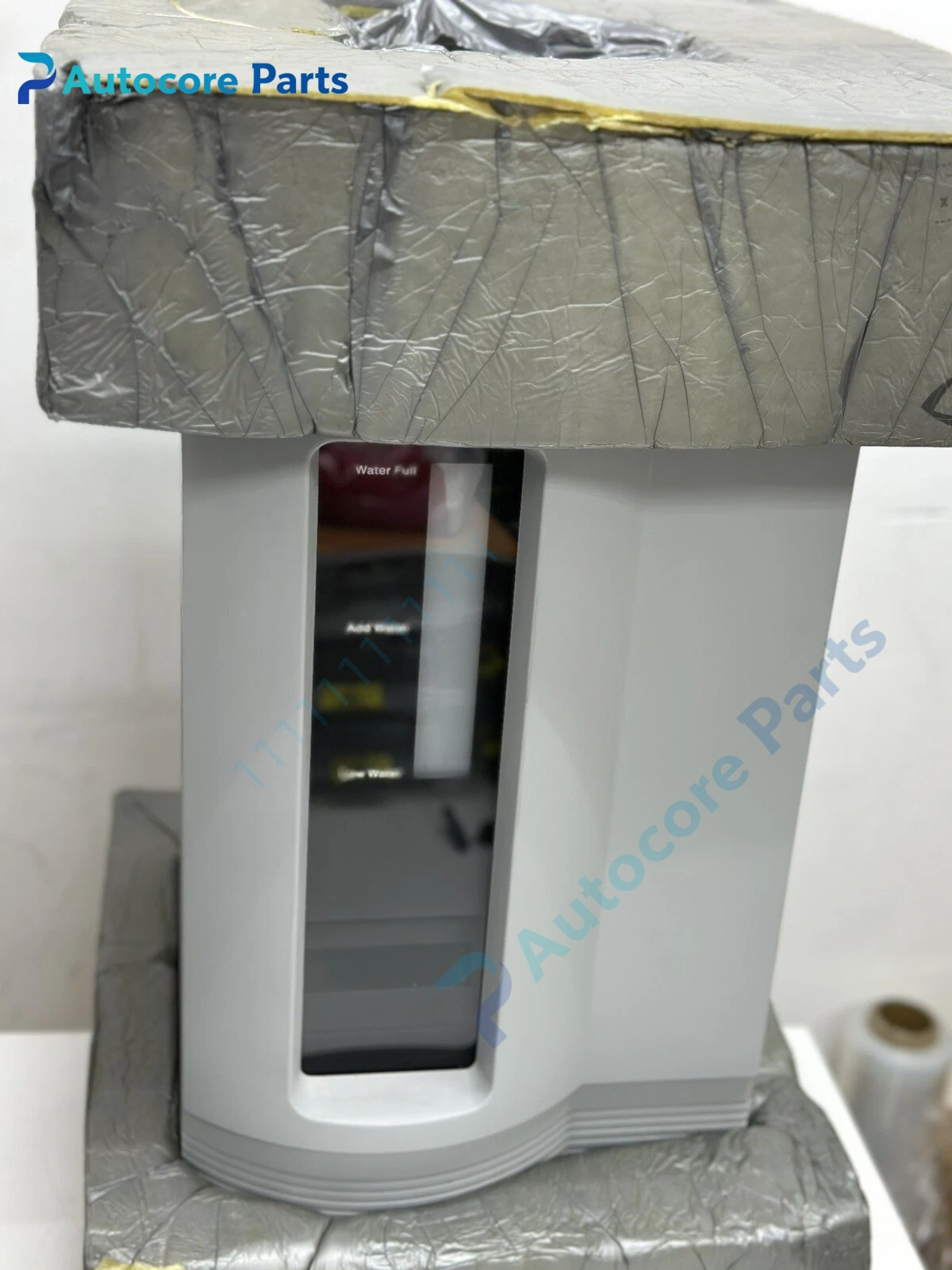

Parker Balston H2PD-300-220 Hydrogen Generator Unit

Module Feature

H2PD-300-220 is Parker Balston H2PD series ultra-high purity hydrogen generator, specially designed for laboratory gas chromatography analysis. It adopts proton exchange membrane electrolysis and palladium alloy membrane purification technology, which can remove oxygen and impurity efficiently.

It outputs stable 300ml/min hydrogen with purity up to 99.99999%. The 220V version is equipped with IEC power connector. It has automatic water replenishment, pressure control and leakage safety interlock functions. It replaces high-pressure hydrogen cylinder, improving operation safety. Widely matched with GC FID flame ionization detector, trace hydrocarbon analyzer and other analytical equipment.

Working principle

Deionized water enters electrolytic cell and is decomposed into hydrogen and oxygen under electric field.

Crude hydrogen flows through palladium purification membrane, only hydrogen molecules can penetrate the membrane to realize deep purification. The built-in pressure sensor stabilizes outlet pressure. Once leakage or overpressure is detected, the system stops hydrogen production and triggers alarm.

Onboard components

PEM electrolytic cell, palladium purification module, pressure regulating valve, liquid level sensor, water storage tank, safety solenoid valve, control mainboard, status display panel.

LED indicators

Front panel LEDs indicate power on, hydrogen generating, pressure normal, low water level and system fault status.

Hardware self‑diagnosis

Self-check covers water shortage, overpressure, internal leakage, electrolyzer abnormality and membrane module failure. Fault alarm and shutdown protection will be activated automatically.

Programming software

Not applicable. Local panel for pressure setting and status viewing.

Electrical & Process Parameters

Model:H2PD-300-220 Brand:Parker Balston Device type:Hydrogen Generator Flow:300 ml/min Purity:≥99.99999% Supply:220V AC Outlet pressure:0.7~4.1 bar adjustable Function:On-demand ultra-pure hydrogen supply for GC analytical detector

Mechanical & Structure

Mounting:Bench top placement Protection class:IP40 Housing:Light grey metal and plastic integrated cabinet

Environmental

Operating temperature:5℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, CSA, NFPA, OSHA compliant Status:Parker Balston original analytical gas generator spare

Installation

Place the generator on stable and ventilated laboratory bench. Connect 220V AC power and fill qualified deionized water.

Connect hydrogen outlet port to GC gas pipeline, complete air purge and pressure setting. Check gas leakage regularly and replenish deionized water. Replace consumable parts according to maintenance cycle.

Interface

220V AC power inlet, hydrogen gas outlet, deionized water filling port, drain port.

Diagnostic

No hydrogen output: Water shortage, internal pressure protection triggered or electrolyzer failure.

Purity decline: Palladium membrane damaged, deionized water quality unqualified.

Continuous alarm: Gas pipeline leakage, pressure sensor drift.

Product BriefParker Balston H2PD-300-220 hydrogen generator, 300ml/min, 99.99999% ultra-pure hydrogen, 220V power, used for GC FID detector laboratory gas supply.
