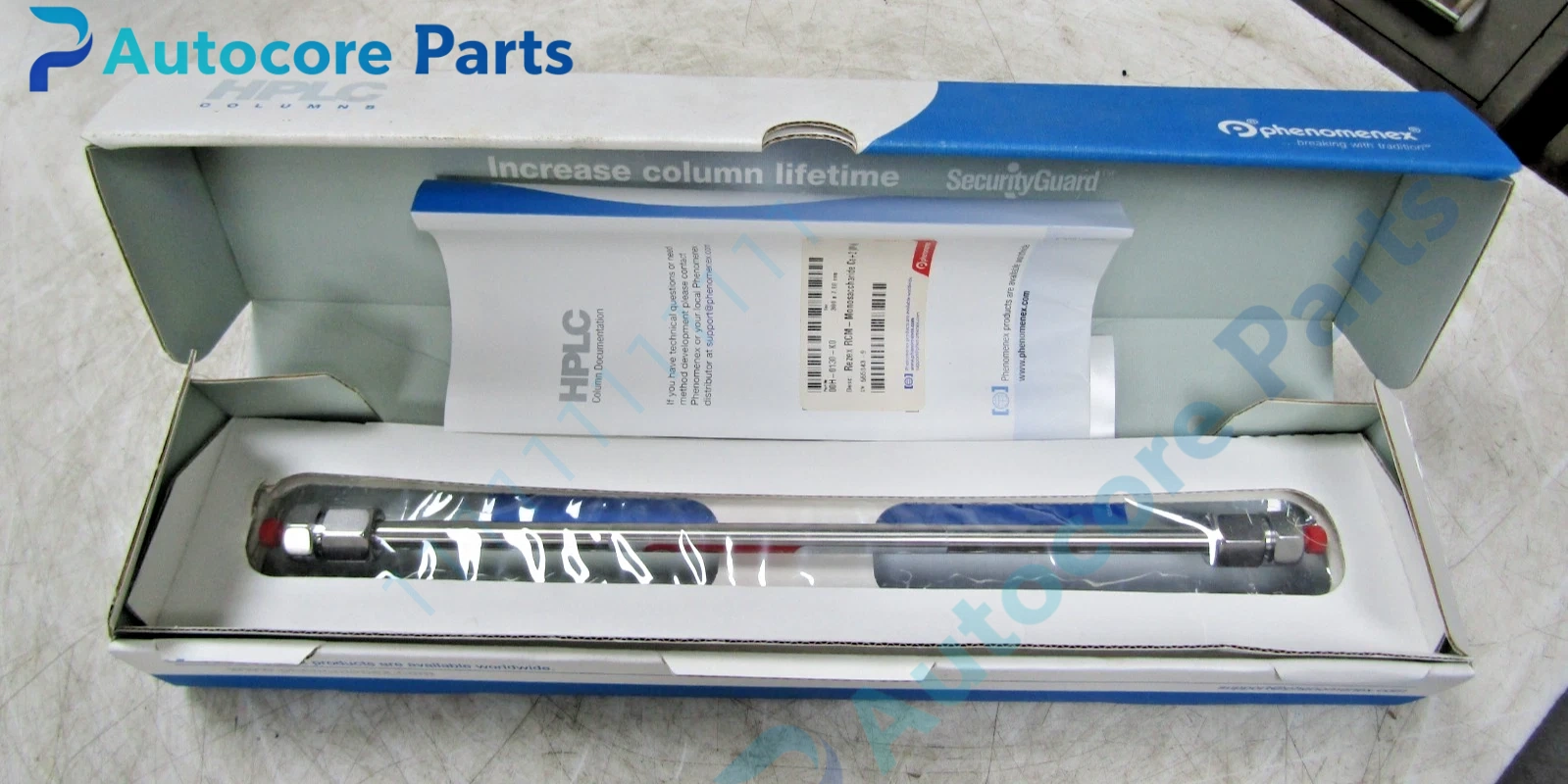

Phenomenex 00H-0130-K0 Liquid Chromatography Column

Module Feature

00H-0130-K0 is Phenomenex Rezex RCM-Monosaccharide Ca+2 (8%) HPLC analytical column. It adopts calcium-form ion exclusion stationary phase, specially designed for carbohydrate separation. It achieves reliable classification and separation of monosaccharides, sugar alcohols, disaccharides, trisaccharides and tetrasaccharides. Stable resin packing matrix, excellent reproducibility for sugar sample testing, widely applied in food, beverage, fermentation and bio-industry sugar composition analysis.

Working principle

Separation relies on ion exclusion and size exclusion mechanism. Analyte molecules interact with calcium ion stationary phase, different carbohydrates show different retention time according to molecular structure and solubility difference. Mobile phase flows through packed bed, components elute sequentially and are detected by HPLC detector to complete qualitative and quantitative analysis.

Onboard components

Stainless steel column tube, cross-linked resin stationary phase (Ca+2 form), inlet frit, outlet frit, column end fittings, protective sealing caps.

LED indicators

No onboard LED indicators. Separation status and peak performance are judged by HPLC workstation chromatogram.

Hardware self-diagnosis

Check column backpressure stability, inspect peak shape distortion, verify retention time drift, check leakage from end fittings, confirm contamination accumulation at inlet frit.

Programming software

No built-in configuration software. Analysis parameters are set on external HPLC chromatography workstation software.

Electrical & Process Parameters

Model:00H-0130-K0 Brand:Phenomenex Device type:HPLC Analytical Column Separation Mode:Ion Exclusion Stationary Phase:RCM-Monosaccharide Ca+2 (8%) Dimension:300 mm × 7.8 mm Particle Size:8 µm Function:Sugar, sugar alcohol and oligosaccharide separation analysis

Mechanical & Structure

Mounting:Inline HPLC fitting connection Protection class:IP40 Housing:Stainless steel column body

Environmental

Operating temperature:Ambient ~ 85℃ Storage temperature:2℃ ~ 40℃ Ambient humidity:5~90% non-condensing Certification:Analytical laboratory chromatography compliant Status: Phenomenex original Rezex series HPLC column

Installation

Flush HPLC system pipeline before installation. Connect column inlet and outlet following marked flow direction. Use suitable mobile phase to equilibrate column until baseline is stable. Do not exceed maximum allowable backpressure.

Interface

HPLC standard threaded compression fittings, inlet port, outlet port.

Diagnostic

High abnormal backpressure: inlet frit blocked or sample precipitate accumulated. Peak tailing or splitting: contaminated stationary phase or overloaded injection. Retention time shifting: insufficient column equilibration or mobile phase composition change. External leakage: loose fitting or damaged ferrule.

Product Brief

Phenomenex 00H-0130-K0 Rezex calcium form ion exclusion HPLC column, used for reliable separation and quantitative analysis of monosaccharides, sugar alcohols and oligosaccharides in analytical laboratories.
