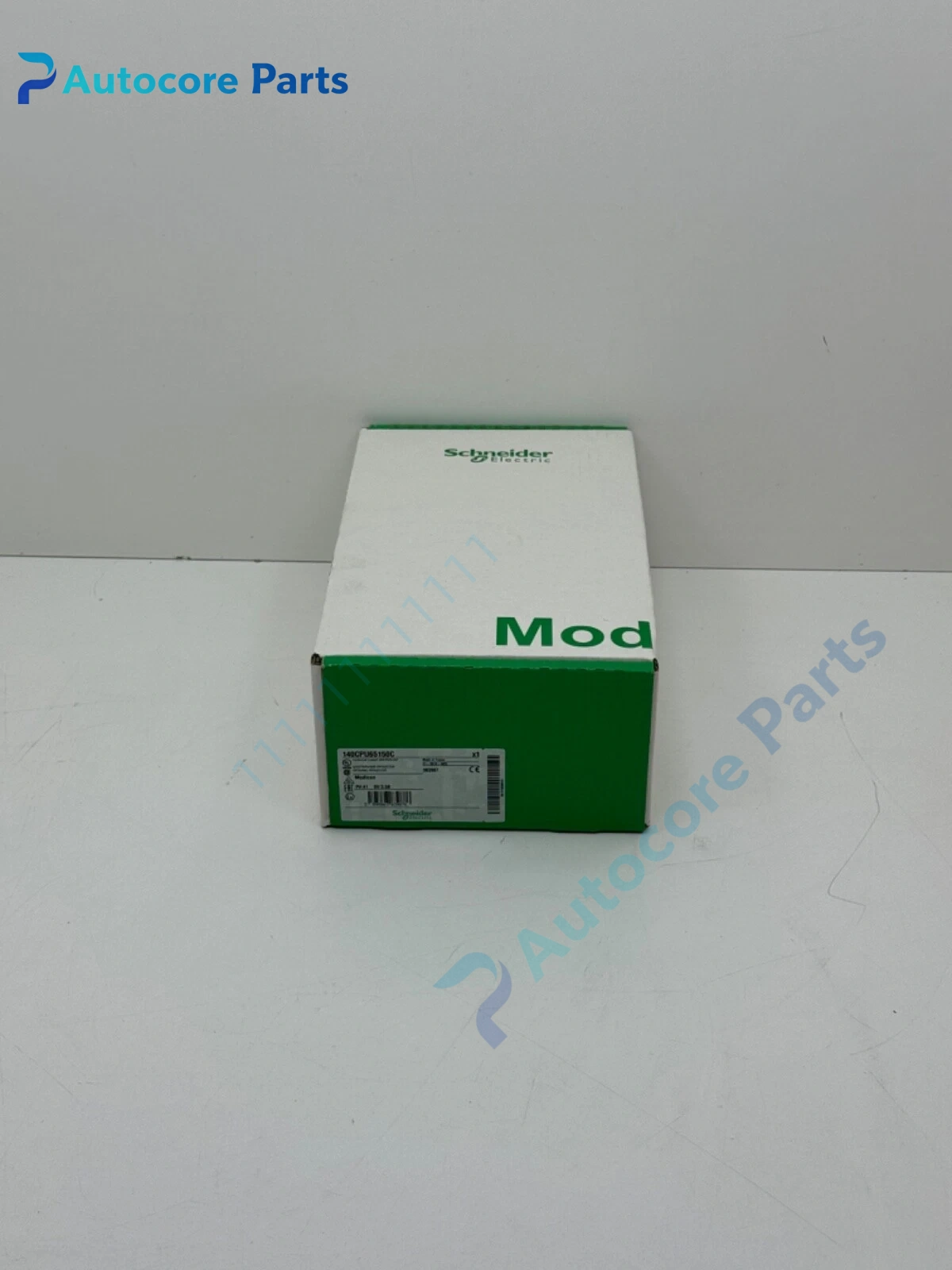

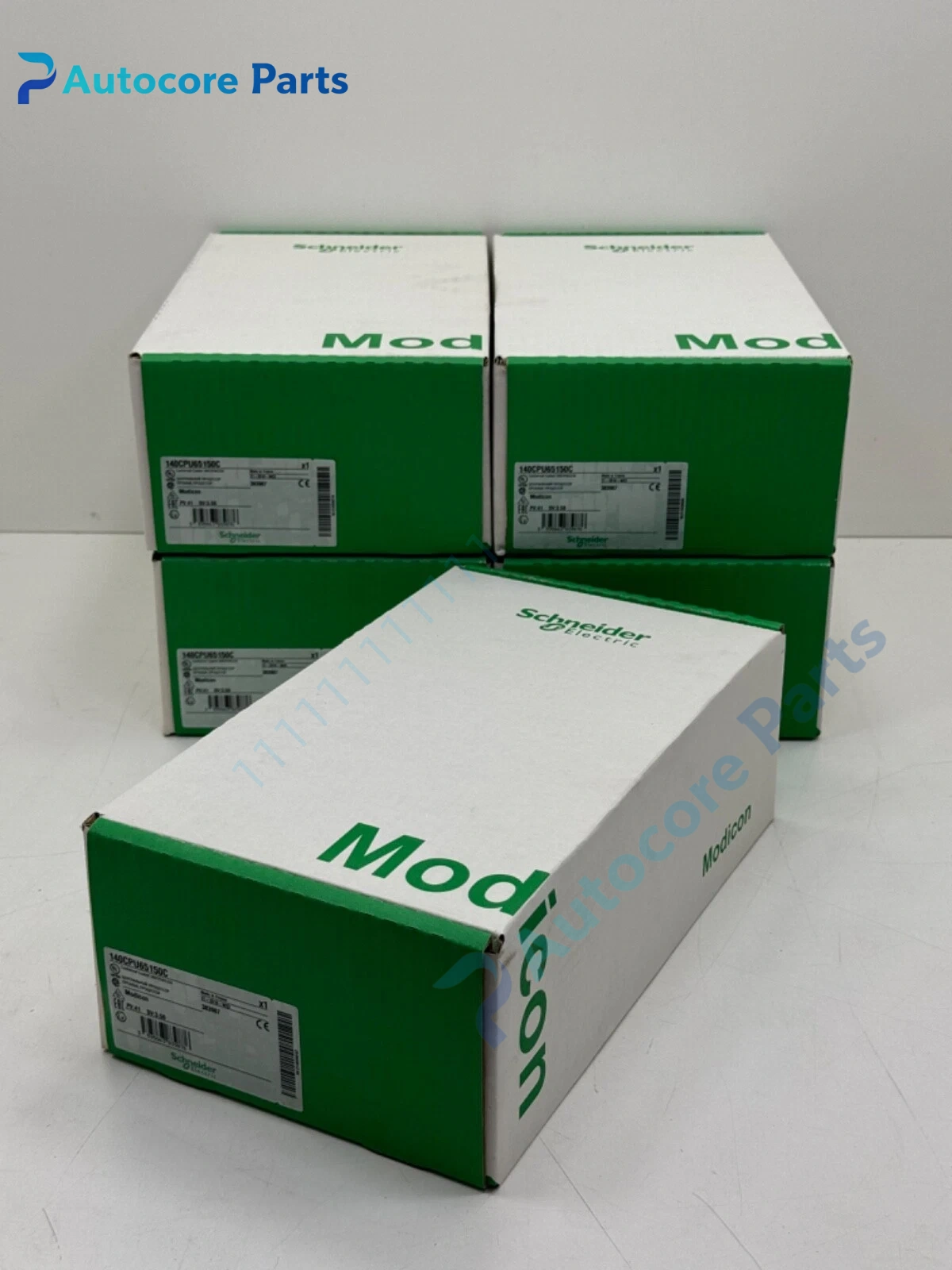

Schneider 140CPU65150C Modicon Quantum Unity CPU Unit

Module Feature

140CPU65150C is a discontinued Unity CPU processor for Schneider Modicon Quantum PLC rack system. It runs Unity Pro programming software, supports multiple IEC61131-3 programming languages. It features built-in Modbus Plus and Ethernet communication interface, can manage local I/O racks, S908 remote I/O and distributed Modbus Plus stations. It supports program backup by memory battery, provides watchdog protection and online program modification. Widely stocked as spare for power plant, pulp & paper, chemical and metallurgy automation control cabinets.

Working principle

The CPU scans user control program cyclically, reads input status from backplane and remote I/O stations. It executes logic calculation, arithmetic operation and communication exchange, then writes output command to I/O modules. It exchanges data with HMI, SCADA and other controllers via Ethernet or Modbus Plus. Internal watchdog circuit will trigger fault stop if program execution is abnormal. Fault code and diagnostic information are stored in CPU memory.

Onboard components

Main microprocessor, program & data memory, backup battery, Ethernet transceiver, Modbus Plus communication circuit, backplane bus interface, status LED array, display panel and metal rack housing.

LED indicators

Front LEDs indicate power, run, fault, communication and battery low status.

Hardware self‑diagnosis

CPU continuously monitors backplane bus, I/O channel, communication link, battery voltage and program integrity. PLC program and IO mapping parameters can be downloaded and uploaded.

Programming softwareUnity Pro XL, used for program editing, offline simulation, parameter download and fault diagnostic log viewing.

Electrical & Process Parameters

Model: 140CPU65150C Brand: Schneider Electric Device type: Quantum Unity PLC CPU Clock speed: 166 MHz Memory: 768 kB Communication: Modbus Plus, Ethernet Function: IEC61131-3 program execution, I/O management and upper system communication

Mechanical & Structure

Mounting: 16-slot Quantum rack backplane mounting Protection class: IP30 Housing: Standard Eurocard rack module enclosure

Environmental

Operating temperature: 0℃ ~ +60℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification: CE, UL Status: Original Schneider automation spare

Installation

Cut off rack power before replacement. Align CPU with Quantum backplane slot and insert, lock fixing screws, connect Modbus Plus and Ethernet cables, install backup battery, download Unity program, test program run and communication function after commissioning.

Interface

Backplane rack connector, Modbus Plus terminal, Ethernet RJ45 port, battery holder, front display panel.

Diagnostic

Fault LED on: Program error, I/O bus fault or configuration mismatch. Battery alarm: Backup battery voltage low, risk of program loss. Communication offline: Ethernet / Modbus Plus cable break or node address conflict.

Product Brief

140CPU65150C processor, Schneider Modicon Quantum Unity CPU spare for power, chemical and pulp paper industrial PLC control system replacement.
