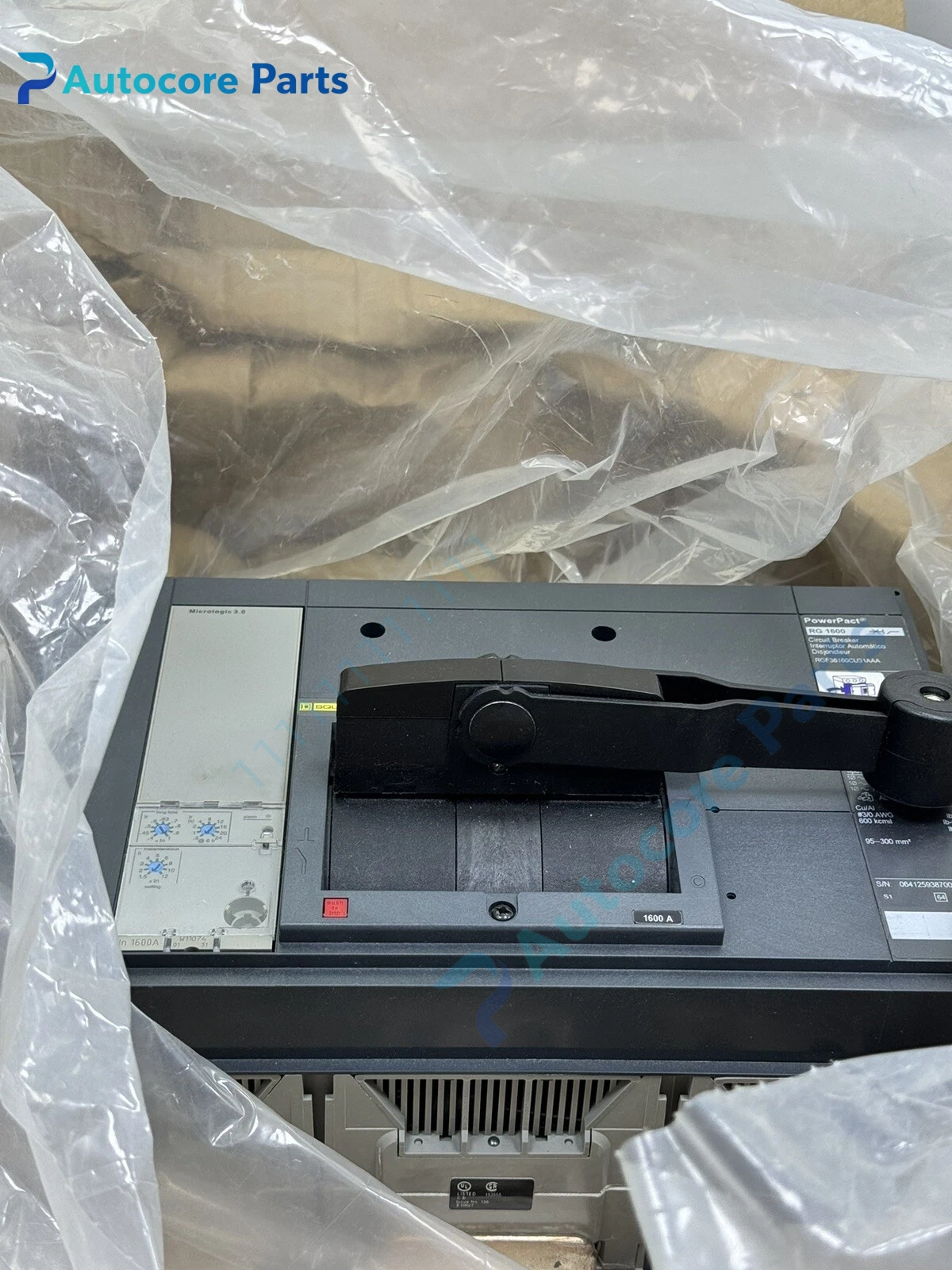

Schneider Electric RGF36160CU31AAA PowerPacT R Circuit Breaker Unit

Module Feature

RGF36160CU31AAA is a 3-pole molded case circuit breaker belonging to Schneider Electric PowerPacT R series. It is equipped with Micrologic 3.0 electronic trip unit for adjustable long-time overload and instantaneous short-circuit protection. It adopts busbar type terminal connection, rated 1600A continuous current, suitable for main distribution feeders and large non-motor loads. Auxiliary switches, shunt trip and undervoltage release accessories can be installed. It complies with UL489 and CSA standards, widely used in factory switchgear, commercial building main distribution panels and substation auxiliary power systems.

Working principle

Current sensing transformers inside the breaker monitor line current continuously. The Micrologic trip unit compares measured current against configured protection thresholds. When overload or short-circuit condition is detected, the trip mechanism releases the contact assembly to open the main contacts and isolate the fault circuit. Protection parameters can be adjusted locally on the trip unit.

Onboard components

Main contact and arc extinguishing chamber assembly, current sensor group, Micrologic 3.0 trip unit, operating handle, trip mechanism, busbar terminal base, accessory mounting interface.

LED indicators

LED status lights on trip unit indicate power supply, pre-alarm overload and fault trip.

Hardware self‑diagnosis

The electronic trip unit performs continuous self-check. It detects internal power loss, sensor abnormality and hardware fault, and provides trip indication.

Programming software

PowerLogic software for protection parameter review and event log access (with communication option installed).

Electrical & Process Parameters

Model:RGF36160CU31AAA Brand:Schneider Electric Device type:Molded Case Circuit Breaker Rated current:1600A Pole:3P Rated voltage:600V AC Trip unit:Micrologic 3.0 Interrupt rating:18kA @ 600V Function:Overload and short-circuit protection for power distribution circuits

Mechanical & Structure

Mounting:Switchgear fixed installation Protection class:IP20 enclosure Housing:High strength thermoset molded case

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:UL489, CSA, IEC compliant Status:Schneider Electric original power distribution spare

Installation

Install breaker vertically inside switch cabinet. Torque busbar connection to specified value. Set overload pickup and instantaneous trip parameters according to distribution design. Test trip function after installation. Inspect contact temperature and arc chamber periodically.

Interface

Main busbar terminals, trip unit status window, auxiliary contact terminals, shunt trip / UVR accessory terminals.

Diagnostic

Unintended trip: Overload condition, incorrect protection setting, loose connection causing overheating. No trip on short circuit: Trip unit failure, mechanism jammed. Trip unit no display: Auxiliary power missing or trip unit damaged.

Product BriefSchneider Electric RGF36160CU31AAA PowerPacT R 1600A 3P MCCB, Micrologic 3.0 trip, busbar connection, used for industrial and commercial main power distribution protection.
