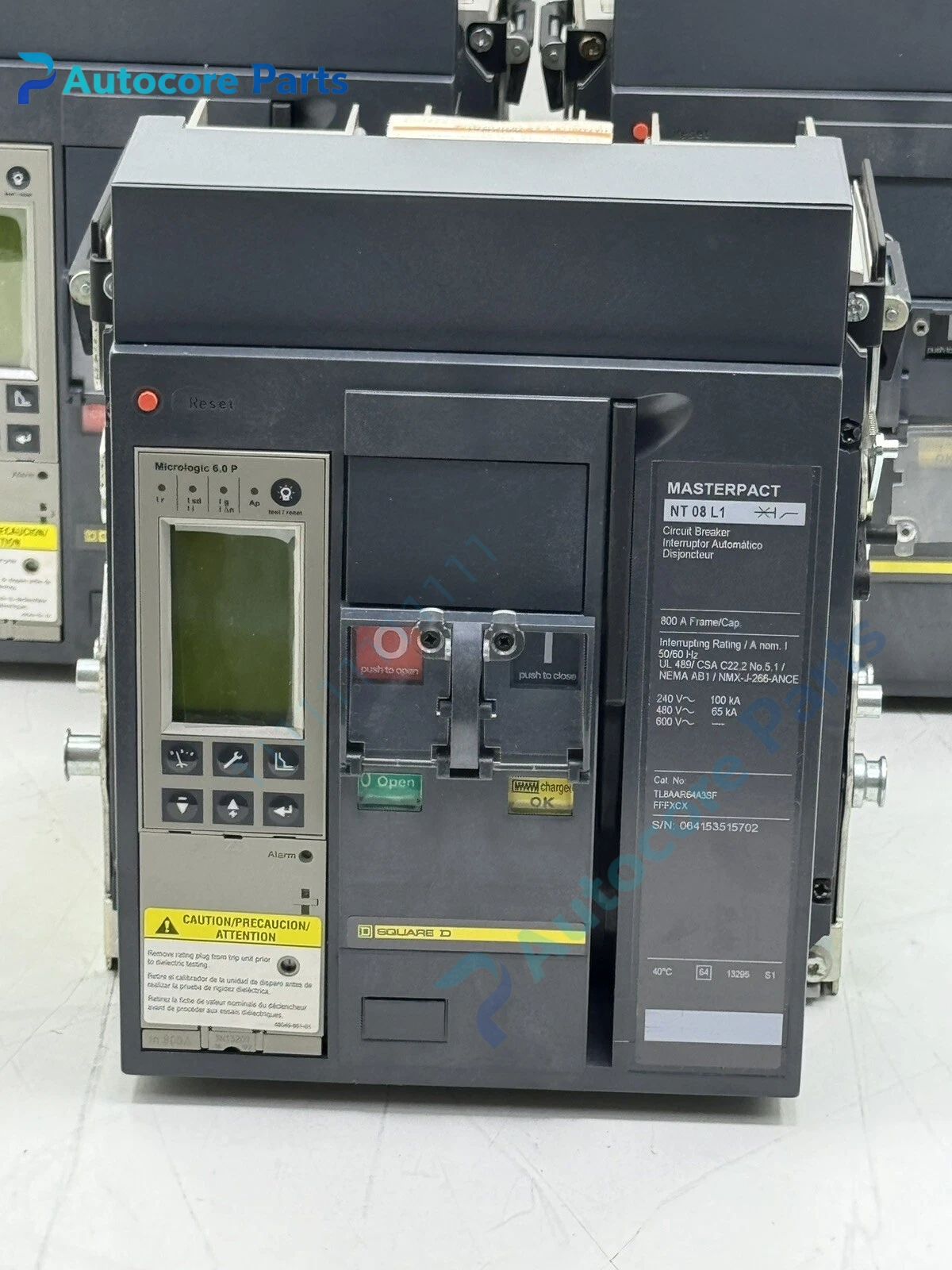

Schneider TL8AAR64A3SFFFFXCX Drawout ACB Unit

Module Feature

TL8AAR64A3SFFFFXCX belongs to Schneider Masterpact NT08H series draw-out air circuit breaker, compared with fixed type TL3AAR64A3SFFFFXCX, this model adopts drawer extractable chassis structure.

It is rated 800A three-pole, equipped with Micrologic 6.0P protection controller, supports overload, short time delay, instantaneous short-circuit and earth fault protection. Built-in LCD display for real-time electrical parameter reading and fault record query, integrated Modbus communication interface for remote SCADA monitoring. Draw-out design allows live rack test, isolation and easy maintenance without full power cut of the cabinet. It can be fitted with motor charging mechanism, shunt release, undervoltage release and anti-condensation heater, widely used for important power incoming cabinet of chemical, mining and water treatment projects.

Working principle

When the load current exceeds the protection threshold, Micrologic 6.0P controller sends trip command to release mechanism.

The stored-energy spring mechanism drives main contacts to separate, arc chute extinguishes electric arc rapidly to cut off fault circuit. Drawer chassis has three positions: connected, test and isolated, which can realize visual electrical isolation for maintenance. Electrical closing, remote opening and status signal uploading can be realized through auxiliary circuit and communication bus.

Onboard components

Main contact assembly, arc quenching chamber, spring energy storage operating mechanism, Micrologic 6.0P trip unit, LCD display, drawer chassis, motor charging module, shunt / UV release coil, position auxiliary switch set, communication terminal block.

LED indicators

Front LEDs indicate spring charged, breaker closed, breaker open, pre-alarm warning and protection trip fault status.

Hardware self‑diagnosis

Built-in supervision detects current sensor imbalance, trip unit power loss, communication interruption and internal electronic abnormality. Fault codes and historical event logs can be checked on local LCD or uploaded to EcoStruxure Power host.

Programming software

EcoStruxure Power Commission software, used for protection curve setting, fault log export, Modbus address configuration and breaker function debugging.

Electrical & Process Parameters

Model:TL8AAR64A3SFFFFXCX Brand:Schneider Electric Device type:3-pole draw-out air circuit breaker Function:Main incoming and feeder fault protection for low voltage power distribution cabinet

Mechanical & Structure

Mounting:Draw-out chassis installation inside LV switchgear compartment Protection class:IP30 front panel Housing:Insulated reinforced frame with metal drawer chassis

Environmental

Operating temperature:-25℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC 60947-2, UL

Status:Discontinued legacy Schneider low voltage distribution spare

Installation

Install matched drawer base in switchgear compartment and complete reliable grounding.

Push breaker to connected position after wiring inspection, set protection coordination parameters before power-on commissioning, verify test and isolation position interlock function.

Interface

Main L1/L2/L3 power contact set, auxiliary control terminal block, Modbus communication port, shunt / undervoltage release wiring terminals.

Diagnostic

Protection trip: Overload, short circuit or earth fault on downstream side, check trip record to confirm fault category.

Unable to rack in/out: Mechanical interlock locked, breaker not at open position or chassis foreign matter jamming.

Communication offline: Bus wiring loose, station address conflict or trip controller failure.

Product Brief

Schneider TL8AAR64A3SFFFFXCX air circuit breaker, Masterpact NT08H 3P 800A drawout ACB spare for industrial and substation main power distribution cabinet replacement.
