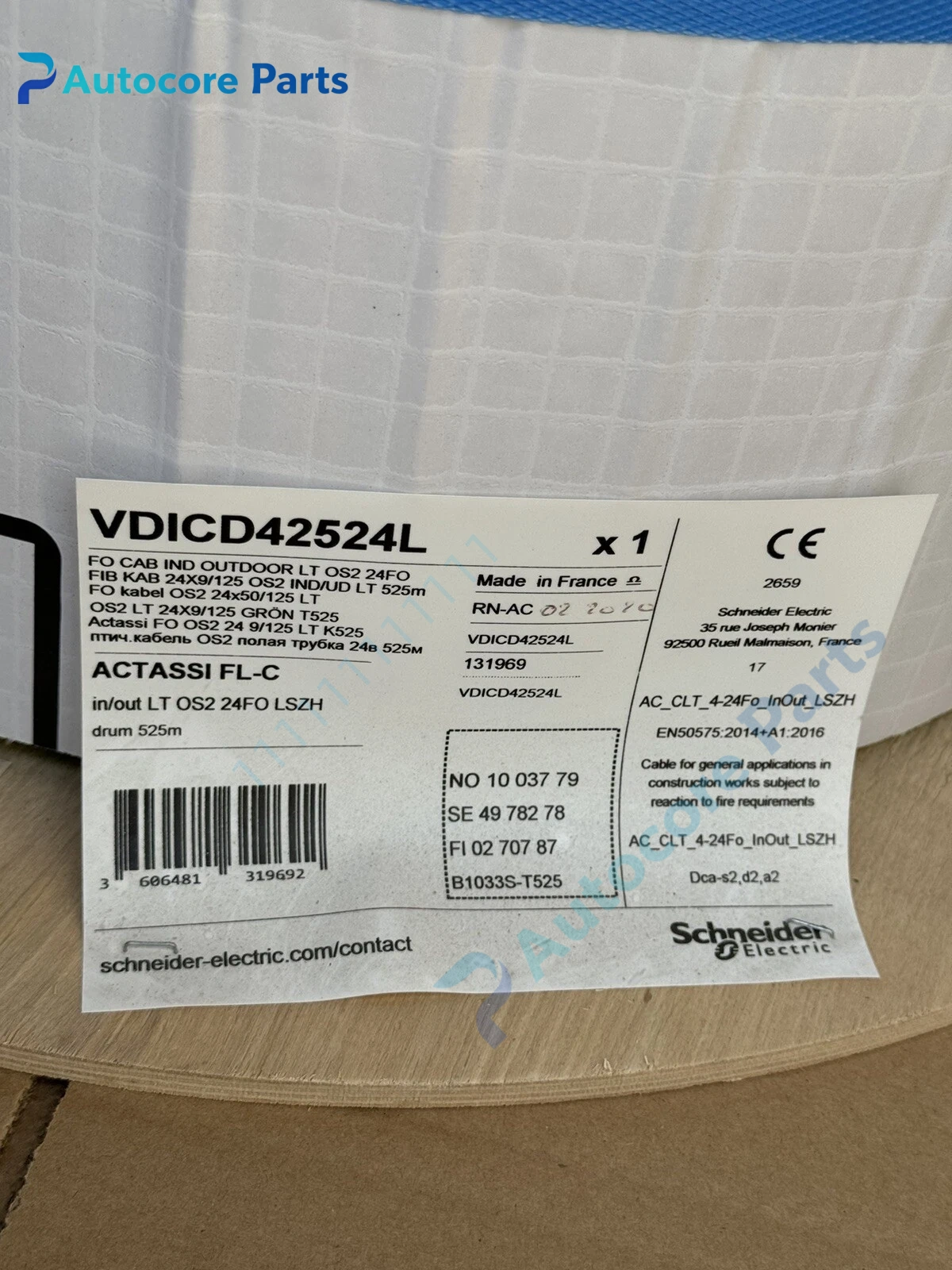

Schneider VDICD42524L Actassi Fiber Optic Cable Unit

Module Feature

VDICD42524L is a loose tube single-mode optical fiber cable of Schneider Actassi series.

It contains 24 OS2 9/125μm optical fibers, compliant with CPR-D fire classification. The loose tube structure isolates optical fiber from mechanical stress and moisture. Dual-purpose design supports both indoor and outdoor laying. It is widely used for industrial network, data center and building backbone communication.

Working principle

Light signal transmits inside the core of single-mode optical fiber by total internal reflection.

The outer loose tube, aramid yarn and outer sheath provide mechanical protection and moisture isolation. The optical signal carries network data for long-distance transmission between switches, servers and industrial control equipment.

Onboard components

OS2 single-mode optical fiber, loose buffer tube, water-blocking material, aramid tensile yarn, outer LSZH protective sheath.

LED indicators

No built-in LED indicator.

Hardware self‑diagnosis

Test fiber attenuation and continuity by optical time domain reflectometer. No local adjustment function.

Programming software

Not applicable, passive optical transmission cable.

Electrical & Process Parameters

Model: VDICD42524L Brand: Schneider Electric Device type: Loose tube optical fiber cable Function: Long-distance optical data transmission for industrial and building communication network

Mechanical & Structure

Mounting: Duct, aerial or direct burial laying Protection class: Waterproof, rodent resistant Housing: LSZH outer sheath

Environmental

Operating temperature: -40℃ ~ +70℃ Storage temperature: -40℃ ~ +70℃ Ambient humidity: 5~95% non‑condensing

Certification: CE Status: Original Schneider communication spare

Installation

Avoid sharp bending and excessive pulling force during laying.

Route cable along pre-planned path, terminate fiber with splice box or patch panel, test optical attenuation after commissioning.

Interface

Fiber core for fusion splicing, compatible with LC/SC/FC fiber connectors.

Diagnostic

High attenuation: Excessive bending, fiber crack or dirty connector end face. No light transmission: Fiber breakage inside cable. Signal unstable: Poor fusion splicing quality.

Product Brief

VDICD42524L cable, Schneider Actassi 24-core OS2 loose tube fiber optic cable spare for indoor and outdoor backbone communication network replacement.
