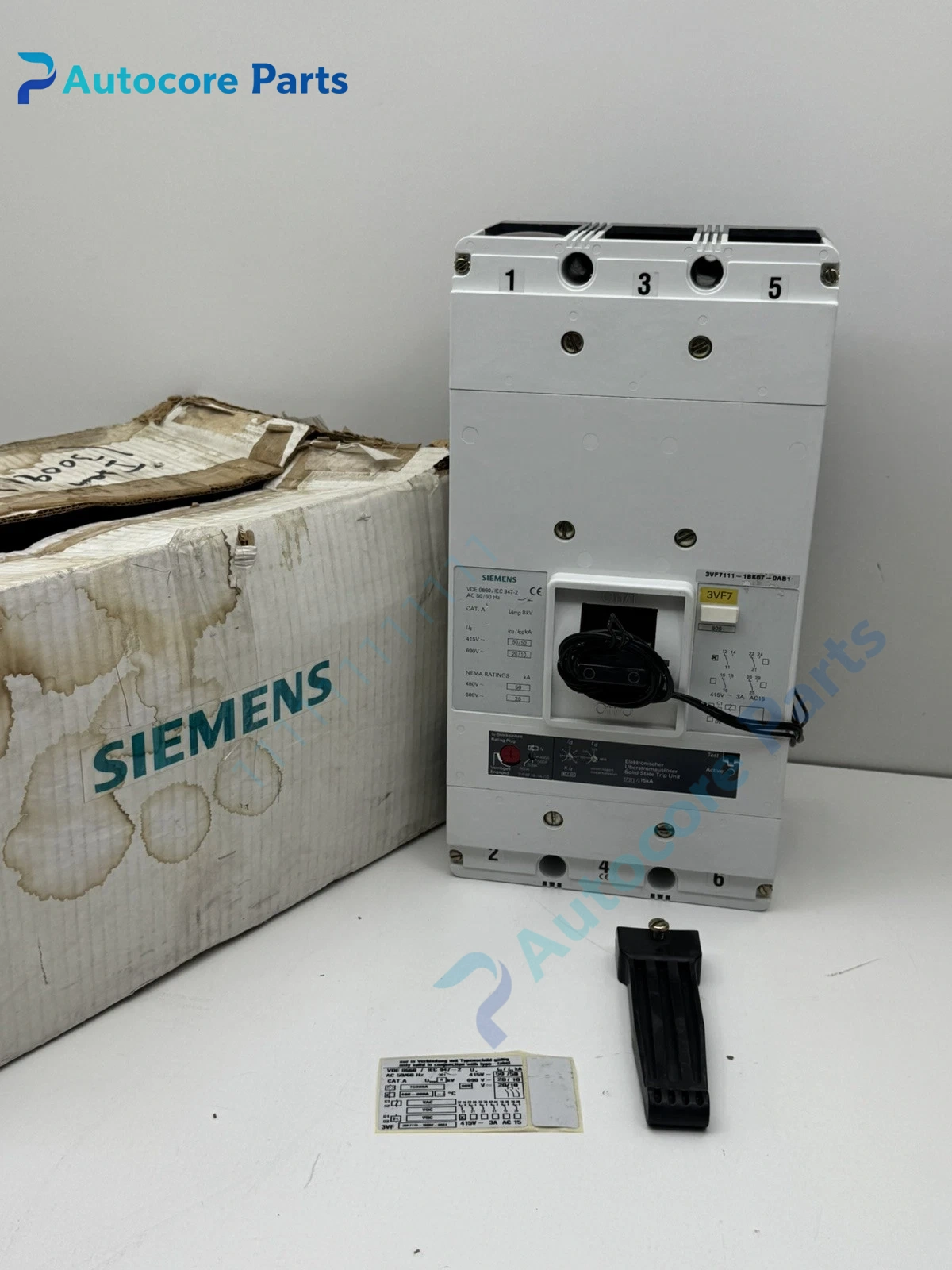

Siemens 3VF7111-1BK67-0AB1 MCCB Unit

Module Feature

3VF7111-1BK67-0AB1 belongs to Siemens 3VF molded case circuit breaker family. It is equipped with electronic LSI trip unit, supports adjustable long-time overload, short-time delay and instantaneous short-circuit protection. 3-pole design, compatible with optional accessories including auxiliary contact, alarm contact, shunt trip and undervoltage release. Widely stocked as spare for industrial low voltage switchgear, pump and motor control panels.

Working principle

Current transformers detect three-phase load current and transmit signal to electronic trip unit. The internal microprocessor compares measured current with preset protection curves. Overload triggers inverse time delay trip; short-time fault triggers adjustable delayed trip; heavy short-circuit triggers instantaneous trip. Auxiliary contacts provide breaker status feedback to PLC and SCADA.

Onboard components

Current transformer set, electronic trip unit, main contact assembly, arc quenching chamber, energy storage operating mechanism, operation handle and reinforced insulated housing.

LED indicators

Front status markers show ON, OFF and fault trip position.

Hardware self‑diagnosis

Trip unit monitors CT signal and internal power supply. LSI parameters can be adjusted locally on trip unit.

Programming software

Siemens power configuration software for parameter backup and fault log checking.

Electrical & Process Parameters

Model: 3VF7111-1BK67-0AB1 Brand: Siemens Device type: Molded case circuit breaker Pole: 3P Function: Overload, short-circuit protection for low voltage distribution and motor circuits

Mechanical & Structure

Mounting: Panel mounting inside low voltage switchgear Protection class: IP40 front panel Housing: Reinforced insulated plastic enclosure

Environmental

Operating temperature: -25℃ ~ +60℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification: CE, UL Status: Original Siemens distribution spare

Installation

Cut off upstream power supply before replacement. Secure breaker to busbar support, tighten connection bolts, wire auxiliary and trip accessories if fitted, set protection parameters, test close, open and trip action after commissioning.

Interface

Three-phase main power terminals, auxiliary contact terminals, shunt / undervoltage trip terminals.

Diagnostic

Overload trip: Load current exceeds long delay setting. Instant trip: Short circuit on downstream cable or load. Cannot close: Undervoltage coil de-energized or mechanism locked.

Product Brief

3VF7111-1BK67-0AB1 breaker, Siemens 3VF series MCCB spare for industrial low voltage feeder and motor circuit protection replacement.
