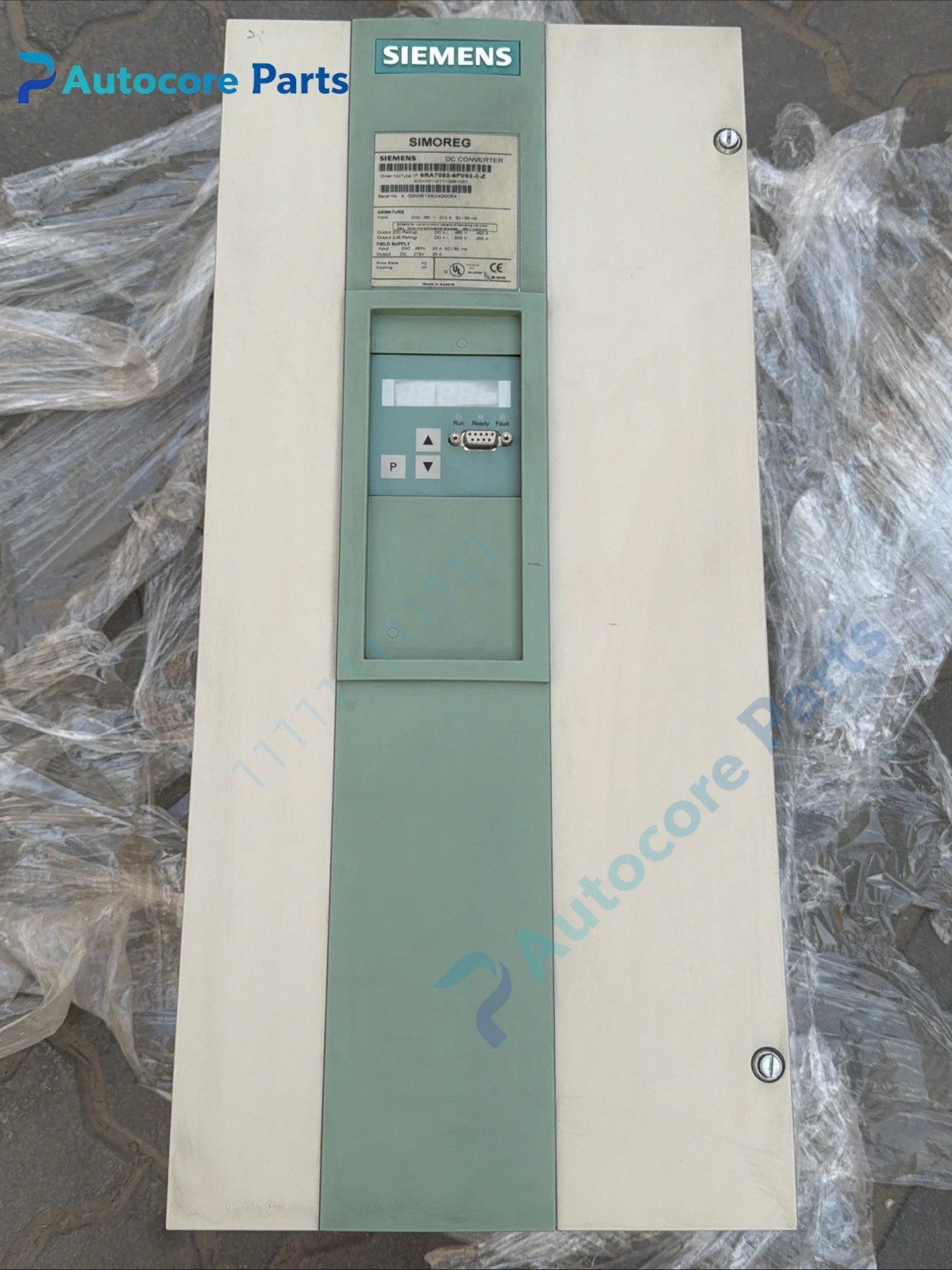

Siemens 6RA7082-6FV62-0-Z DC Drive Unit

Module Feature

6RA7082-6FV62-0-Z is a microprocessor-based line-commutated four-quadrant DC converter from Siemens SIMOREG DC Master platform.

It adopts thyristor bridge structure for armature and field regulation, supporting forward and reverse operation with regenerative braking. It integrates built-in PID, free function blocks, and multiple I/O channels. It supports optional PROFIBUS communication card and external operation panel, suitable for heavy-duty continuous operation in metal processing, paper machinery and mining equipment.

Working principle

Three-phase AC supply is rectified into adjustable DC voltage via thyristor stack.

Digital control board samples armature current, field current and encoder speed signal, executes closed-loop speed and current regulation. Four-quadrant bridge enables energy feedback back to AC grid during deceleration, achieving regenerative braking.

Onboard components

Thyristor power stack, field rectifier unit, digital control motherboard, pulse trigger board, current and voltage transformers, status LED array, cooling fan assembly.

LED indicators

Front LEDs indicate power ready, run status, fault alarm, field excitation and communication link.

Hardware self‑diagnosis

Built-in supervision detects overcurrent, overvoltage, field loss, overtemperature, phase failure and communication fault. Fault codes and parameter logs can be read through Siemens DriveWindow engineering software.

Programming software

Siemens DriveWindow, used for drive parameter setting, optimization, fault recording and firmware maintenance.

Electrical & Process Parameters

Model:6RA7082-6FV62-0-Z Brand:Siemens Device type:Four-quadrant digital DC converter Function:Closed-loop speed and torque control for DC motors with regenerative braking

Mechanical & Structure

Mounting:Cabinet rack installation Protection class:IP20 Housing:Steel enclosed power drive unit with forced air cooling

Environmental

Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC61800

Status:Original Siemens legacy DC drive spare

Installation

Confirm main power and control power isolation before installation.

Mount the unit with sufficient ventilation space, connect armature, field and encoder wiring, perform commissioning and motor optimization before formal operation.

Interface

Three-phase AC power terminals, DC armature terminals, DC field terminals, encoder signal port, digital/analog I/O terminal block, PROFIBUS interface.

Diagnostic

F001 overcurrent: Motor short circuit, cable insulation breakdown or trigger pulse loss. F004 field fault: Excitation cable open circuit or field rectifier damage. Speed unstable: Encoder signal interference, wrong pulse number setting or current loop oscillation.

Product Brief

Siemens 6RA7082-6FV62-0-Z DC drive, four-quadrant SIMOREG DC Master thyristor converter spare for industrial DC motor speed control cabinet replacement.
