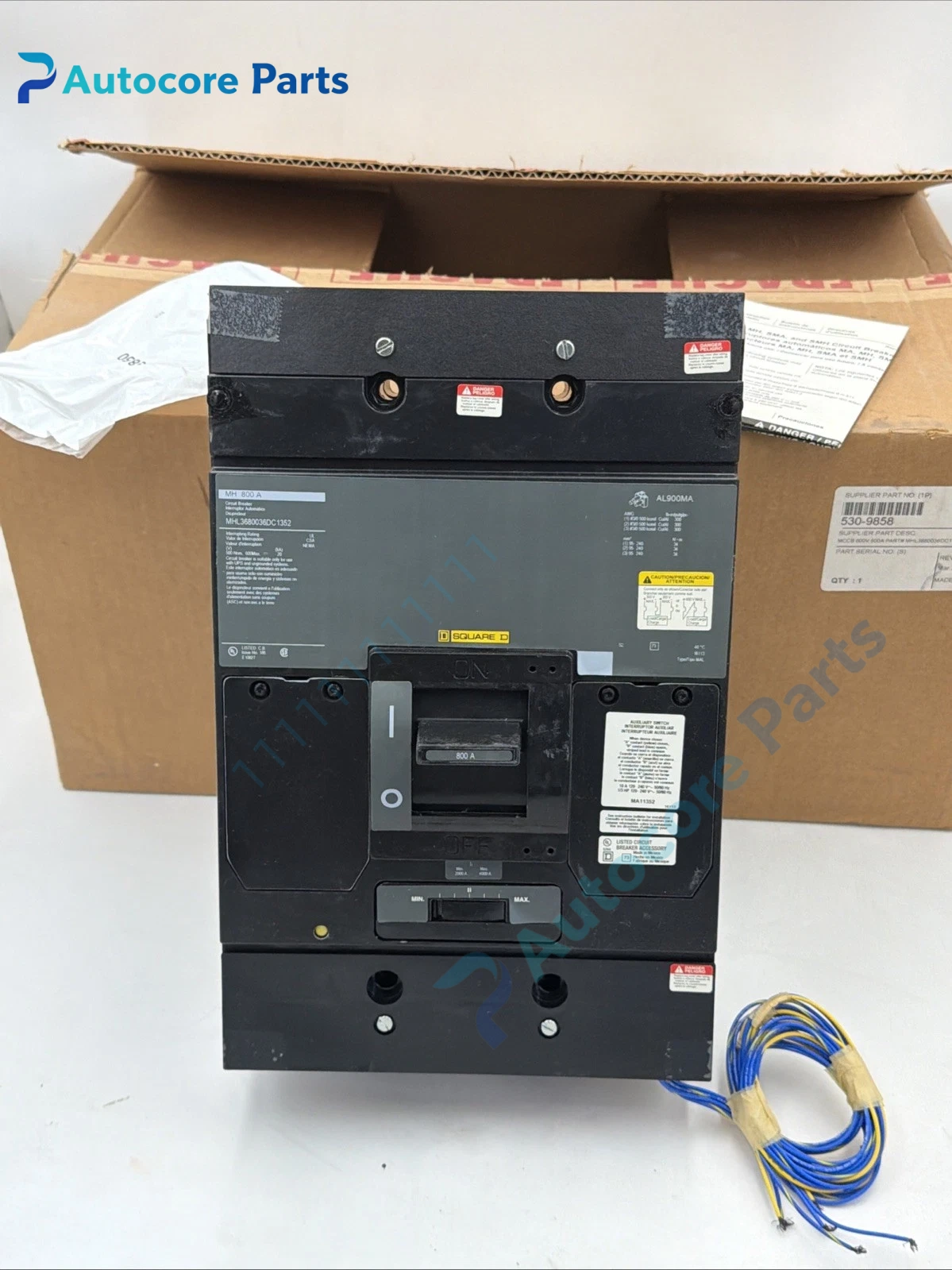

Square D MHL3680036DC1352 MCCB Circuit Breaker Unit

Module Feature

MHL3680036DC1352 belongs to Square D MHL series molded case circuit breaker for DC application.

It is 3-pole, 800A frame current, rated voltage 600VDC, LI trip unit (overload + instantaneous short circuit protection), feed-through terminal configuration. Designed for DC distribution loops, commonly applied for UPS output, battery bank, solar DC combiner cabinet and heavy industrial DC feeder protection. It can be equipped with auxiliary switch, shunt trip and undervoltage release accessories, high DC short-circuit withstand capability. This is a heavy-duty DC MCCB, widely stocked spare for data center and energy storage power distribution cabinet.

Working principle

When DC load current exceeds overload setting value, the thermal bimetallic element delays to trigger trip.

When short-circuit fault occurs, magnetic trip component acts instantly to separate main contacts and cut off DC fault current. Auxiliary contact provides breaker ON/OFF status signal to remote monitoring system. Mechanical interlock prevents accidental closing after tripping.

Onboard components

Main contact assembly, arc quenching chamber, thermal-magnetic trip unit, molded insulated case, feed-thru terminal lugs, status auxiliary switch set, shunt release / UV release coil (optional).

LED indicators

Not built-in LED; breaker position window shows open / close visual status.

Hardware self‑diagnosis

No built-in electronic self-diagnosis. Inspection items include contact overheating, insulation aging, trip function test and resistance measurement.

Programming software

Not applicable, thermal-magnetic fixed trip MCCB.

Electrical & Process Parameters

Model:MHL3680036DC1352 Brand:Square D Device type:3-pole DC molded case circuit breaker Function:Overload and short-circuit protection for DC power distribution, battery and UPS loop

Mechanical & Structure

Mounting:Fixed mounting inside DC distribution cabinet Protection class:IP20 Housing:Thermoset molded insulated housing

Environmental

Operating temperature:-25℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:UL489, CE

Status:Original Square D DC power distribution spare

Installation

Strictly follow DC polarity marking during wiring.

Tighten terminal torque according to specification, test trip function before energizing DC loop.

Interface

DC positive / negative feed-thru main terminals, auxiliary control wiring terminal block, shunt / undervoltage release terminals.

Diagnostic

Overload trip: Long-term load current exceeds rated value, check DC load condition. Instantaneous trip: DC short circuit or reverse polarity fault, inspect downstream cable and load. Cannot close: Mechanical latch damaged, trip not reset or interlock locked.

Product Brief

Square D MHL3680036DC1352 molded case circuit breaker, 3P 800A 600VDC MCCB spare for energy storage, UPS and DC power distribution cabinet replacement.
