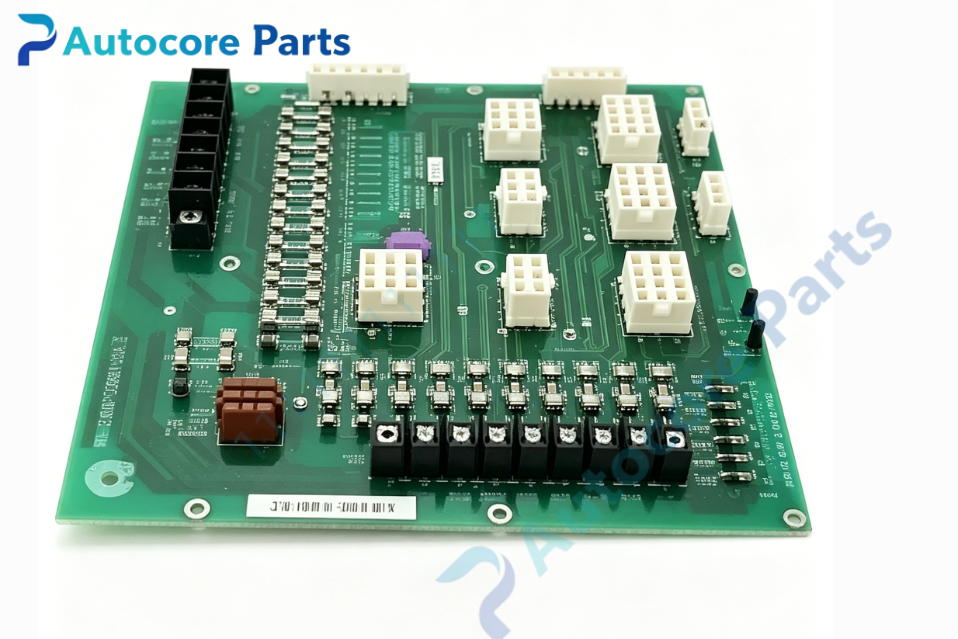

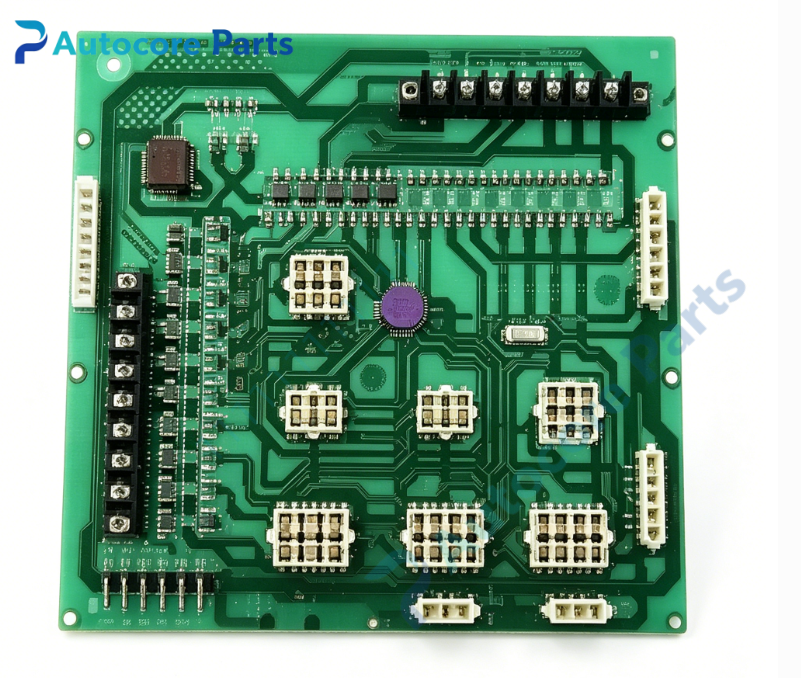

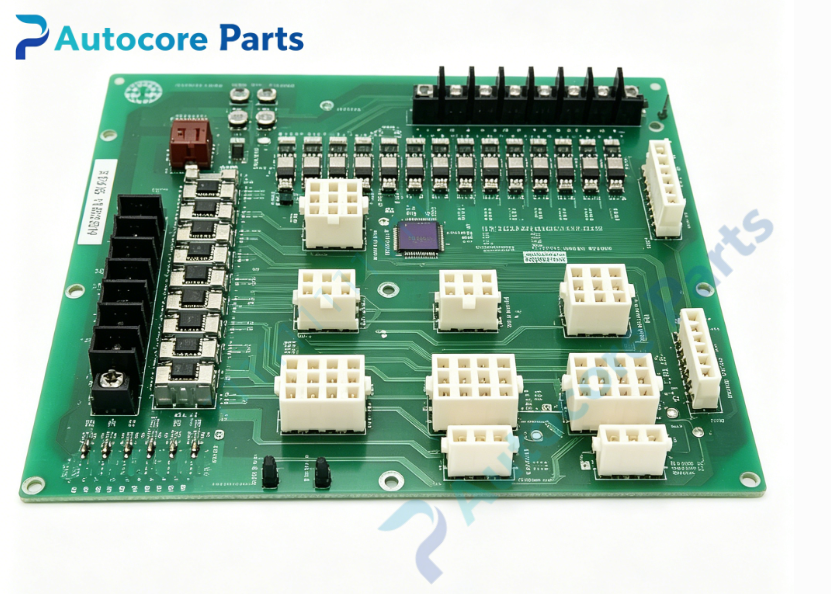

AMAT 0100‑00269 Controller Power Distribution PCB Assembly

Technical Specifications

Model：0100‑00269

Brand：AMAT Applied Materials

Product Type：Controller power distribution PCB assembly

Applicable System：AMAT Centura 200mm semiconductor process equipment

Supply Voltage：24VDC main input, output multiple regulated DC voltages

Interface：Multi‑pin power and signal connectors for controller module interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for each channel power status

Built‑in Function：System power input distribution,multi‑channel power output filtering,over‑current protection,power status monitoring,power supply isolation for controller subunits

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis internal fixed installation

Weight：0.48kg

Product Brief:

0100‑00269 is legacy controller power distribution PCB assembly manufactured by AMAT Applied Materials. It is responsible for receiving main DC power input and distributing filtered multi‑channel power for each subunit of equipment controller. It integrates over‑current protection circuit and power status LED indicators for each output channel. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
