Technical Specifications

Model：0100‑71224

Brand：AMAT Applied Materials

Product Type：Multi‑Serial Communication Interface PCB assembly

Applicable System：AMAT AKT series semiconductor process equipment

Supply Voltage：5V auxiliary DC power input

Interface：Multi‑channel RS232 / RS422 serial ports,SCSI interface,multi‑pin signal terminal

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for serial port activity and fault diagnostic status

Built‑in Function：Multi‑channel serial data transceiver,serial signal level conversion,host and peripheral device communication bridging,SCSI signal transmission,communication error detection and fault feedback to main control system

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis internal fixed installation

Weight：0.54kg

Product Brief:

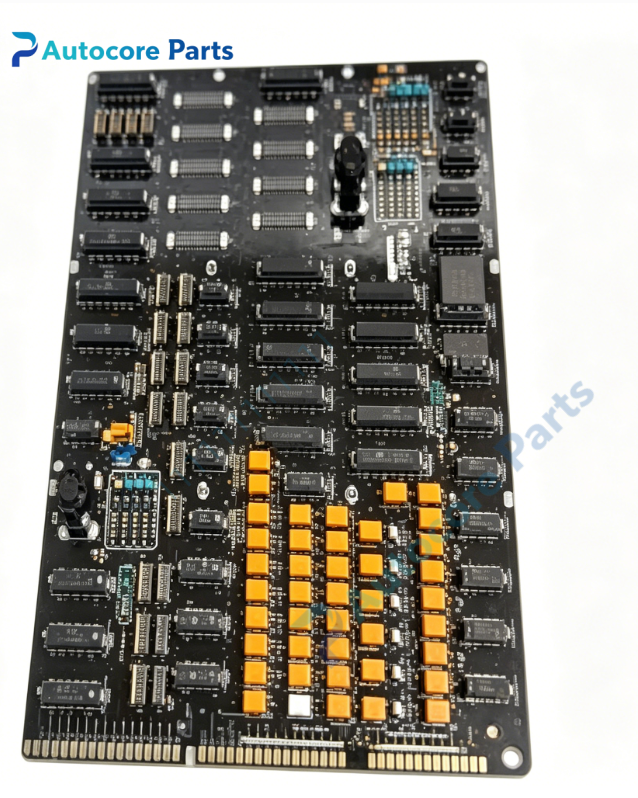

0100‑71224 is legacy multi‑serial communication interface PCB assembly manufactured by AMAT Applied Materials. It is multi‑channel serial port communication board dedicated for AKT semiconductor equipment. It realizes level conversion and data interaction between main controller and multiple peripheral devices via RS232, RS422 and SCSI interfaces. On‑board LED provides visual diagnosis for serial‑port running and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
