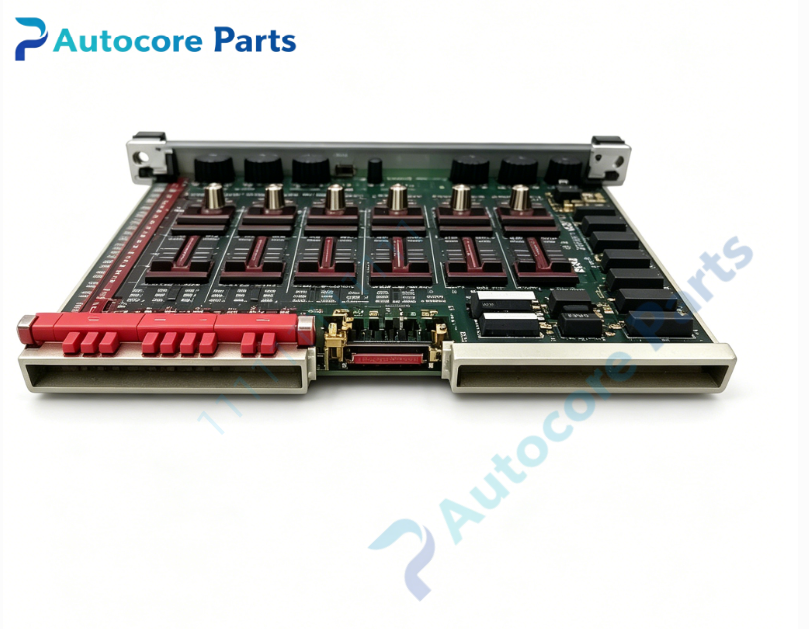

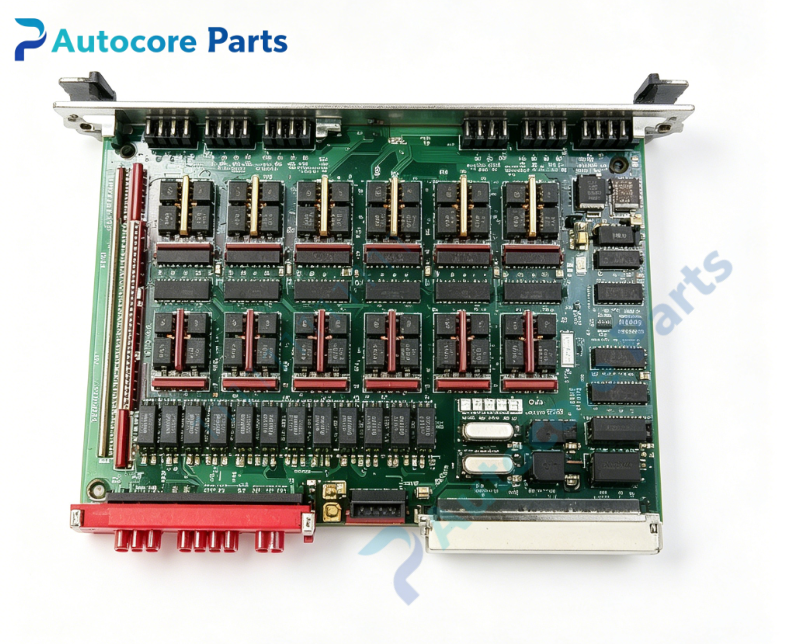

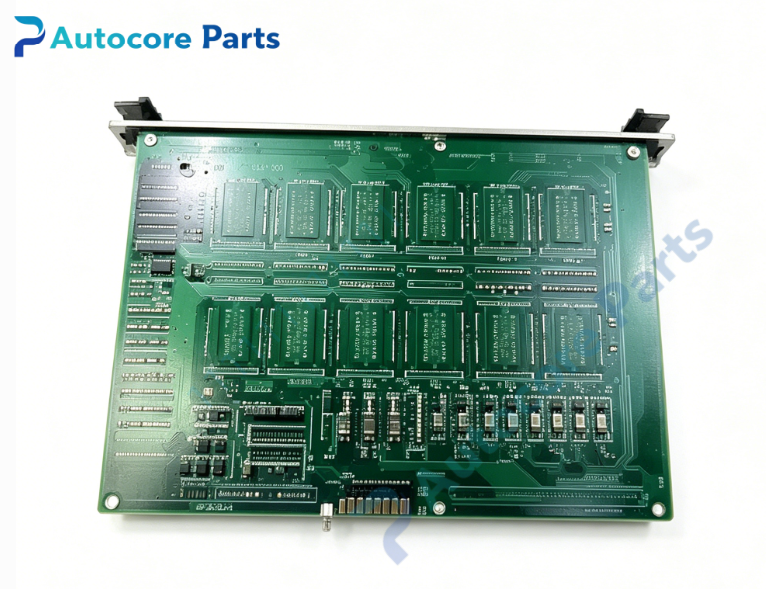

AMAT 0100‑76124 Digital I/O PCB Assembly

Technical Specifications

Model：0100‑76124，Alternate P/N:0110‑76124

Brand：AMAT Applied Materials

Product Type：Digital I/O PCB assembly

Applicable System：AMAT Centura, Endura, AKT series semiconductor process equipment

Supply Voltage：5V,24VDC auxiliary DC power input

Interface：VME bus edge connector,multi‑pin signal terminal blocks for valves,sensors and interlock devices interconnection

Common Revision：REV‑B,multiple hardware revisions available

Status Indicator：On‑board LED for channel working status and fault diagnostic status

Built‑in Function：Multi‑channel digital signal acquisition,digital output drive for solenoid valves and actuators,process safety interlock processing,optocoupler isolation protection,fault status feedback to main controller

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME card cage plug‑in installation

Weight：0.35kg

Product Brief:

0100‑76124 is legacy digital I/O PCB assembly manufactured by AMAT Applied Materials, alternate part number 0110‑76124. It is VME‑bus digital input‑output control board for Centura, Endura and AKT semiconductor equipment mainframe. It serves as signal bridge between system controller and field components, collects sensor signals and outputs drive signals for actuators, executes safety interlock logic with optocoupler isolation. On‑board LED provides visual diagnosis for channel and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
