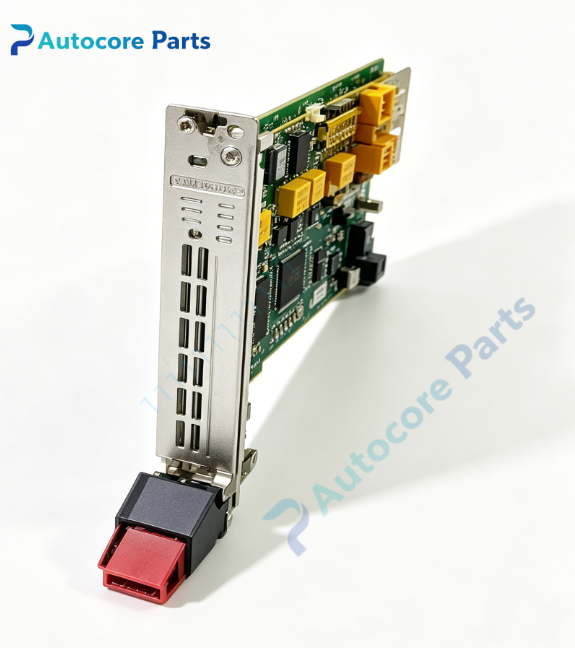

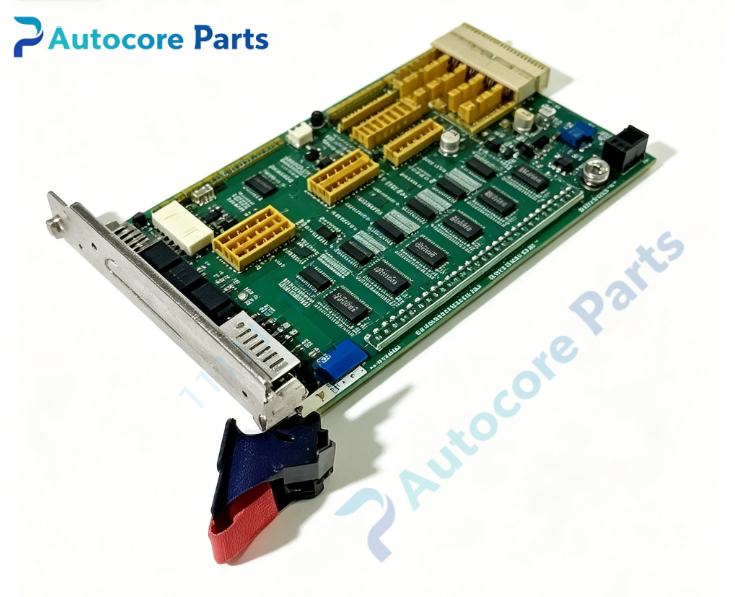

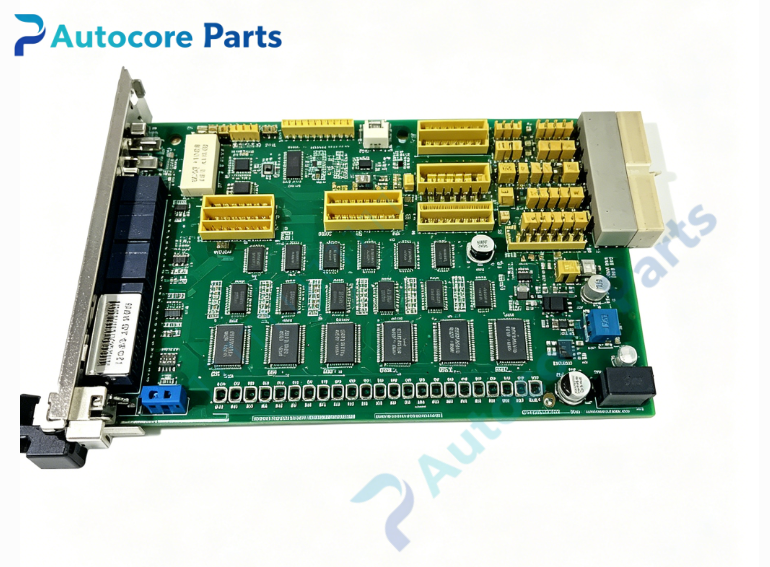

AMAT 0190‑02506 DeviceNet I/O Interface PCB Assembly

Technical Specifications

Model：0190‑02506，Sub‑Model:CDN491

Brand：AMAT Applied Materials

Product Type：DeviceNet I/O interface PCB assembly

Applicable System：AMAT Centura 200mm semiconductor process equipment

Supply Voltage：5V auxiliary DC power input

Interface：VME bus connector,DeviceNet field‑bus port

Common Revision：REV001,REV003,multiple hardware revisions available

Status Indicator：On‑board LED for bus link,activity and fault diagnostic status

Built‑in Function：DeviceNet field‑bus protocol processing,VME‑DeviceNet data gateway,communication with MFC,pressure transducer and digital valve,field device data collection,alarm signal transmission to main control system

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME card cage plug‑in installation

Weight：0.40kg

Product Brief:

0190‑02506 is legacy CDN491 DeviceNet I/O interface PCB assembly manufactured by AMAT Applied Materials. It acts as field‑bus gateway between VME main controller and on‑site field devices. It realizes protocol conversion and data interaction with MFC,pressure transducers and digital valves over DeviceNet bus. On‑board LED provides visual diagnosis for bus link,running and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
