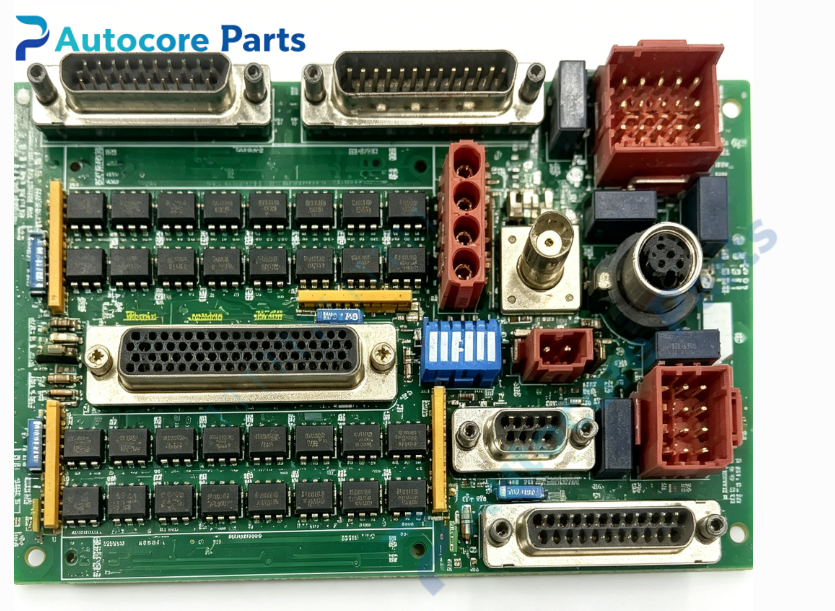

AMAT 0190‑04098 Factory Interface I/O Distribution PCB Assembly

Technical Specifications

Model：0190‑04098，Sub P/N:SBS900‑009‑27B

Brand：AMAT Applied Materials

Product Type：Factory interface I/O distribution PCB assembly

Applicable System：AMAT 300mm semiconductor process equipment,Factory Interface & EFEM wafer loading subsystem

Supply Voltage：5V,24VDC auxiliary DC power input

Interface：Multi‑pin D‑sub and power signal connectors for mainframe and EFEM module interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for channel status and fault alarm

Built‑in Function：Digital input‑output signal routing,signal distribution between equipment mainframe and EFEM wafer loader,signal conditioning,hardware circuit protection,status signal feedback to main control unit

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis standoff fixed installation

Weight：0.23kg

Product Brief:

0190‑04098 is legacy factory interface I/O distribution PCB assembly manufactured by AMAT Applied Materials. It acts as central digital signal distribution hub between equipment mainframe and EFEM front‑end wafer loading module. It routes and distributes mass digital I/O signals to realize reliable signal interaction for wafer transfer subsystem. On‑board LED provides visual indication for channel working and fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 300mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
