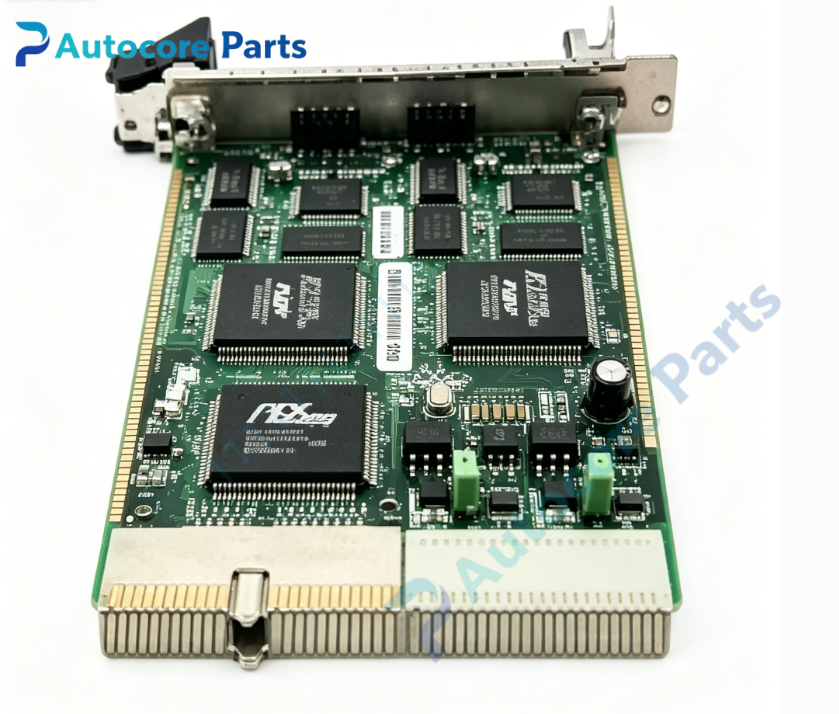

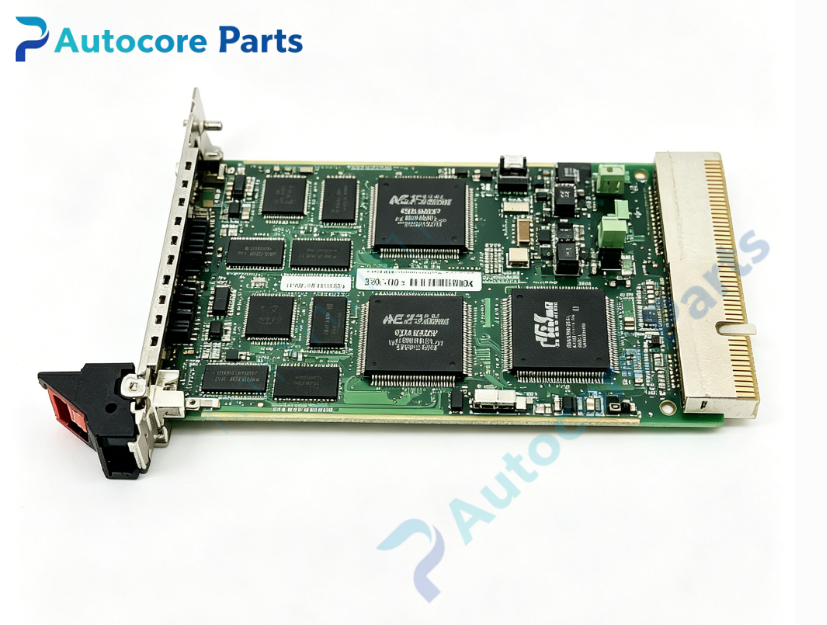

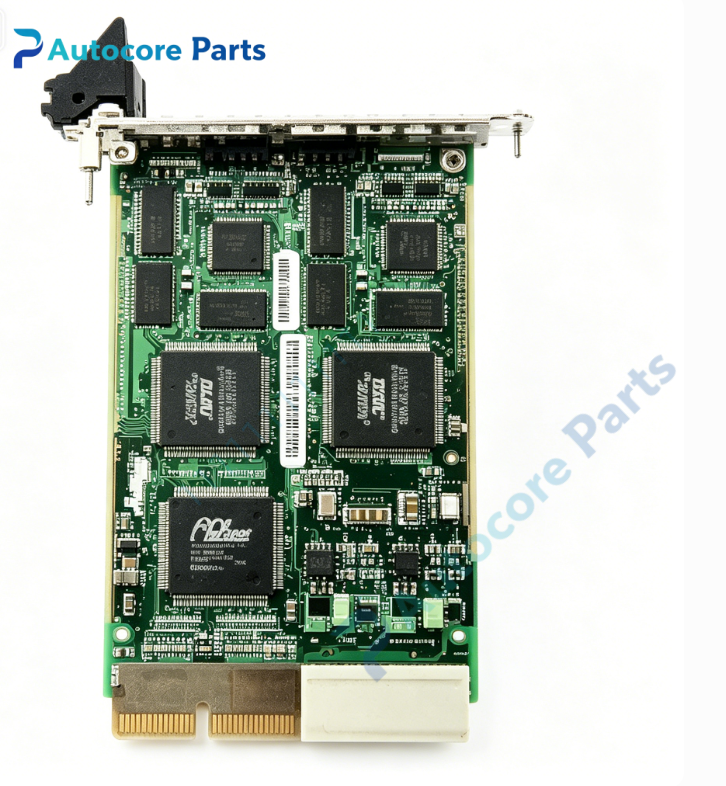

AMAT 0190‑05399 Chamber Analog Signal PCB Assembly

Technical Specifications

Model：0190‑05399

Brand：AMAT Applied Materials

Product Type：Chamber analog signal PCB assembly

Applicable System：AMAT Centura 200mm semiconductor process equipment

Supply Voltage：5V,±12V auxiliary DC power input

Interface：Multi‑pin analog signal and power connectors for chamber sensor interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power supply and channel fault status

Built‑in Function：Chamber multi‑channel analog signal collection,signal amplification and filtering,sensor signal conditioning,process parameter conversion,fault signal output to main control unit

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis internal fixed installation

Weight：0.53kg

Product Brief:

0190‑05399 is legacy chamber analog signal PCB assembly manufactured by AMAT Applied Materials. It serves as dedicated analog sensing and conditioning board for Centura process chamber subsystem. It collects multiple analog sensor signals inside the chamber,completes signal amplification,filtering and conversion,and transmits real‑time process parameters to main control system. On‑board LED provides visual diagnosis for power supply and channel fault state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
