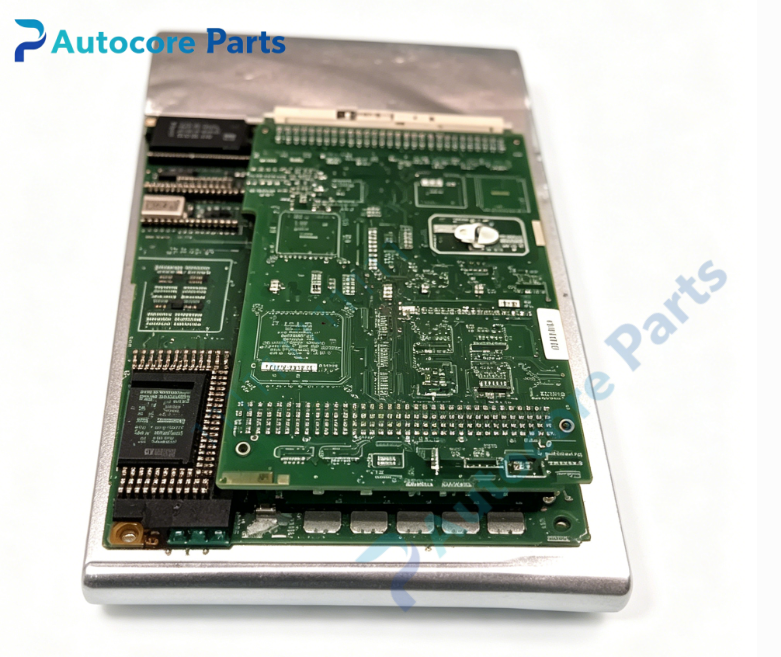

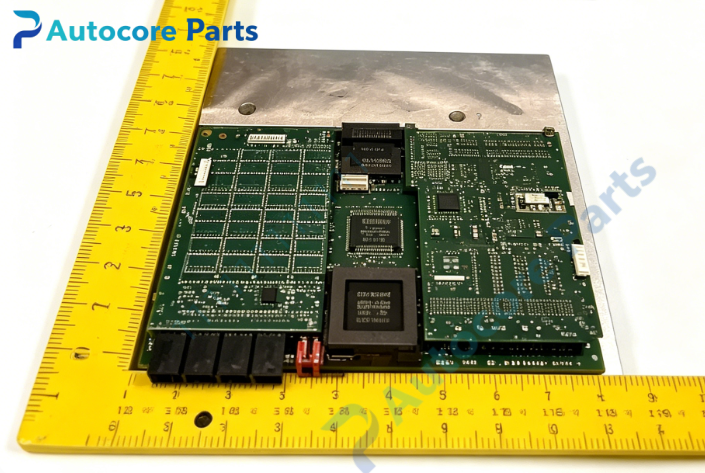

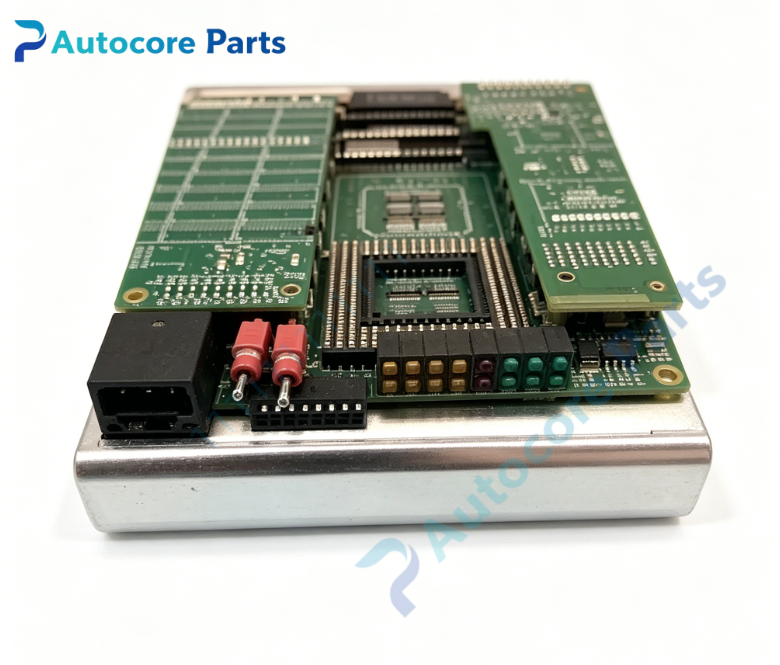

AMAT 0190‑76043 SBC Synergy 68040 Controller PCB Assembly

Technical Specifications

Model：0190‑76043

Brand：AMAT Applied Materials

Product Type：SBC Synergy 68040 controller PCB assembly

Applicable System：AMAT Centura 200mm semiconductor process equipment

Supply Voltage：5V,±12V auxiliary DC power input

Interface：VME bus connector,serial communication port,memory expansion interface

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power,run and fault diagnostic status

Built‑in Function：68040 CPU main logic operation,system program execution,VME bus communication control,process task scheduling,system hardware diagnosis,data interaction with each subsystem board

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME card cage plug‑in installation

Weight：0.62kg

Product Brief:

0190‑76043 is legacy SBC Synergy 68040 single‑board controller PCB assembly manufactured by AMAT Applied Materials. It is VME‑bus main control single‑board computer for Centura wafer fabrication equipment. It runs system firmware, schedules process tasks and completes high‑speed data interaction with each functional board through VME bus. On‑board LED provides visual diagnosis for power supply, running and fault status. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
