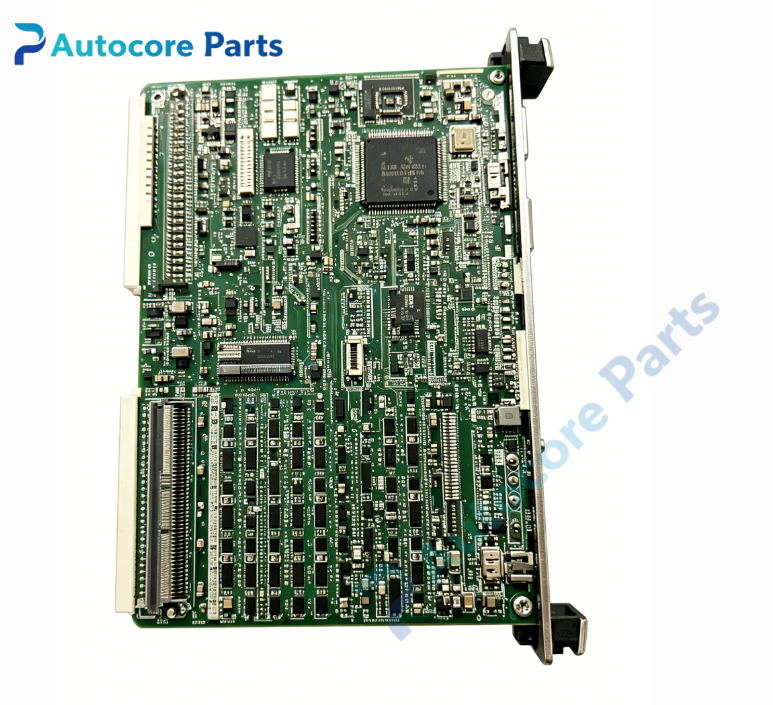

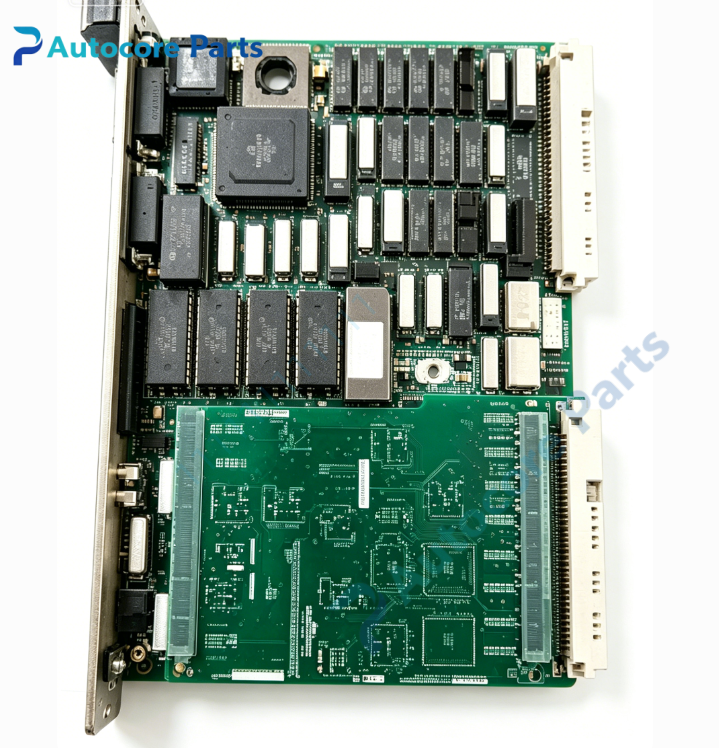

AMAT 0190‑09379 Synergy VME CPU Board

Technical Specifications

Model：0190‑09379 (Revision:V21)

Brand：AMAT Applied Materials

Product Type：VME‑bus Synergy CPU PCB assembly

Applicable System：AMAT Centura 5200,Precision 5000 semiconductor process equipment,200mm wafer platform

Supply Voltage：5V,±12V VME backplane power supply

Processor：MC68040 32‑bit embedded microprocessor

On‑board Memory：System SRAM,EPROM firmware storage

Bus Interface：VME64 backplane bus

Communication Interface：Serial diagnostic port

Status Indicator：Multi‑color LED for power,running status and module fault

Built‑in Function：Equipment process logic execution,real‑time data processing,peripheral board scheduling,system self‑diagnosis

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME slot plug‑in installation

Weight：0.70kg

Product Brief:

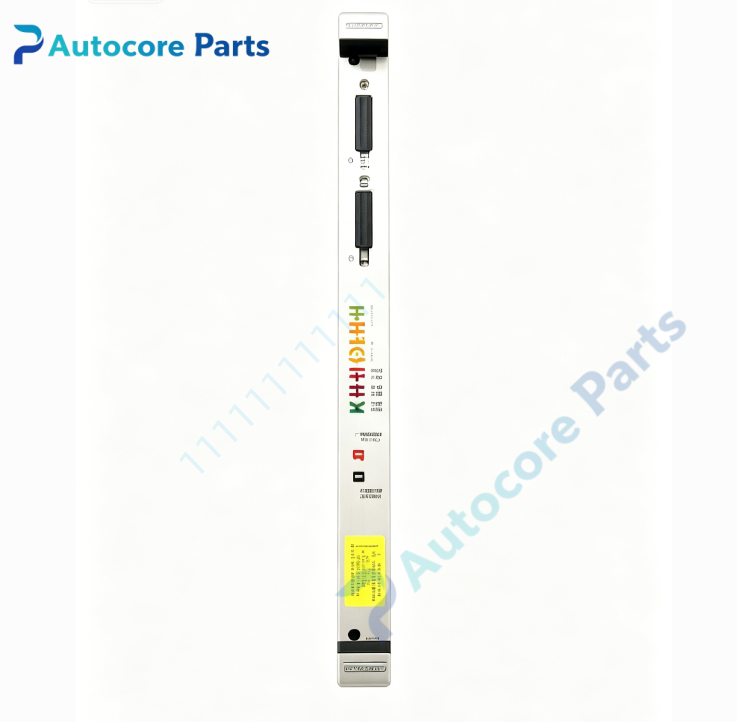

0190‑09379 is legacy Synergy V21 VME CPU PCB assembly manufactured by AMAT Applied Materials. It serves as main process control unit for Centura 5200 and Precision 5000 200mm wafer semiconductor equipment,covering etch,CVD,PVD process chambers. It adopts MC68040 processor to execute equipment control algorithm,process production real‑time data,and communicate with peripheral functional boards via VME backplane bus. Front‑panel LED indicators support quick on‑site running status check and fault diagnosis without extra testing tools. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision V21 and equipment model compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
