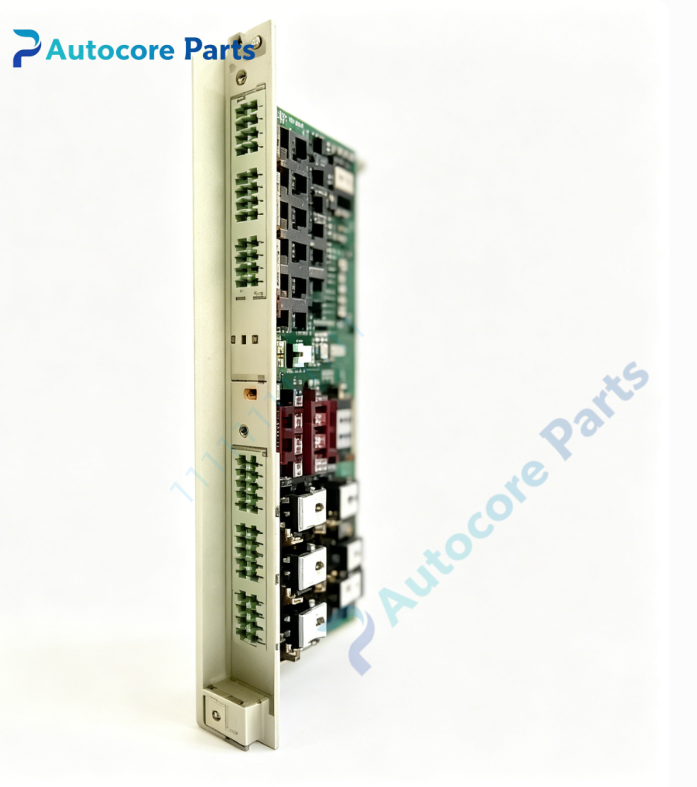

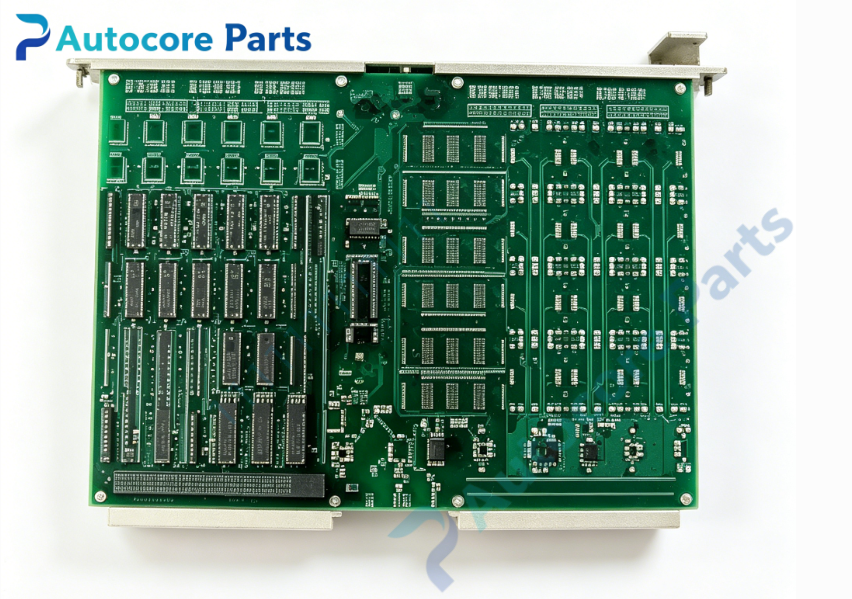

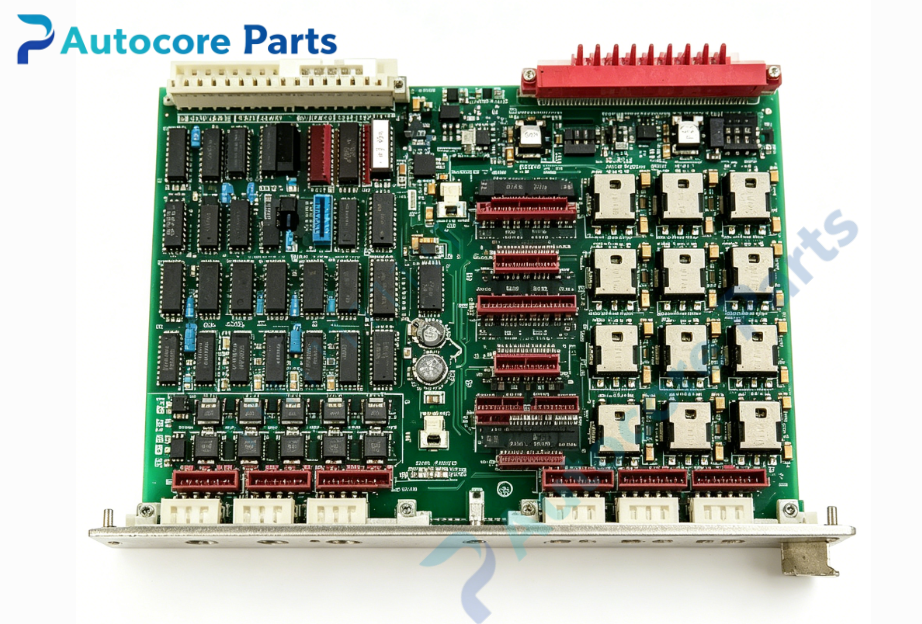

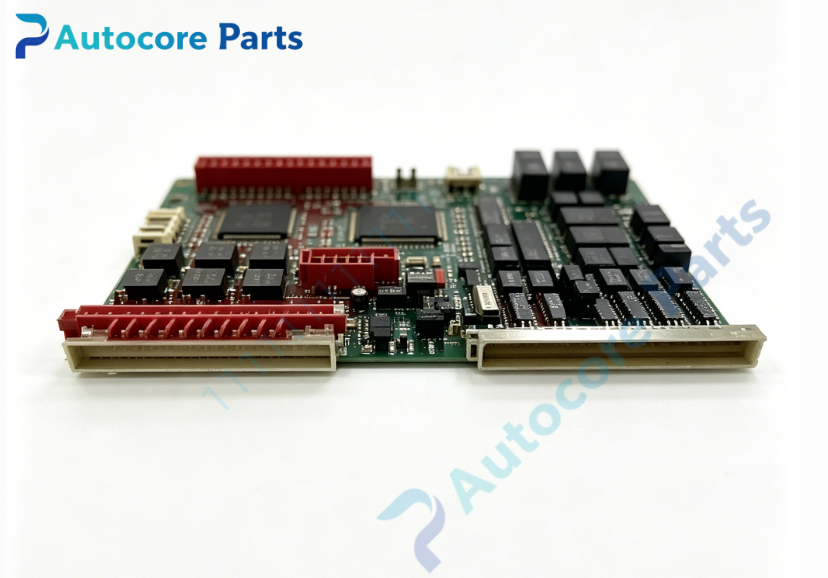

AMAT 0100‑11002 Digital I/O Interface Card

Technical Specifications

Model：0100‑11002（PCB reference number:0130‑11002）

Brand：AMAT Applied Materials

Product Type：VME‑bus digital I/O interface card

Applicable System：AMAT P5000,Centura series semiconductor process equipment,VME 6U chassis platform

Supply Voltage：5V,±12V VME backplane power supply,field signal 24V DC

Channel：Multi‑channel optically isolated discrete input and output

Bus Interface：VMEbus backplane interface

Revision：Common hardware revision:B,C,E,F

Status Indicator：On‑board multi‑color LED for each channel status indication

Built‑in Function：Discrete signal acquisition,solenoid valve and actuator drive,photoelectric isolation protection,channel fault diagnosis,data interaction with main CPU via VME bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME slot plug‑in installation

Weight：0.72kg

Product Brief:

0100‑11002 is legacy VME‑bus digital I/O interface card manufactured by AMAT Applied Materials. It serves as discrete signal interface unit for P5000 and Centura semiconductor wafer equipment. It collects sensor digital signals on‑site and outputs drive signals to control solenoid valves,actuators and other field components. Optoelectronic isolation design improves anti‑interference performance for 24‑hour continuous wafer manufacturing environment. Each channel is equipped with LED indicator for quick channel status check. It communicates with system main CPU through VME backplane bus. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm semiconductor equipment. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
