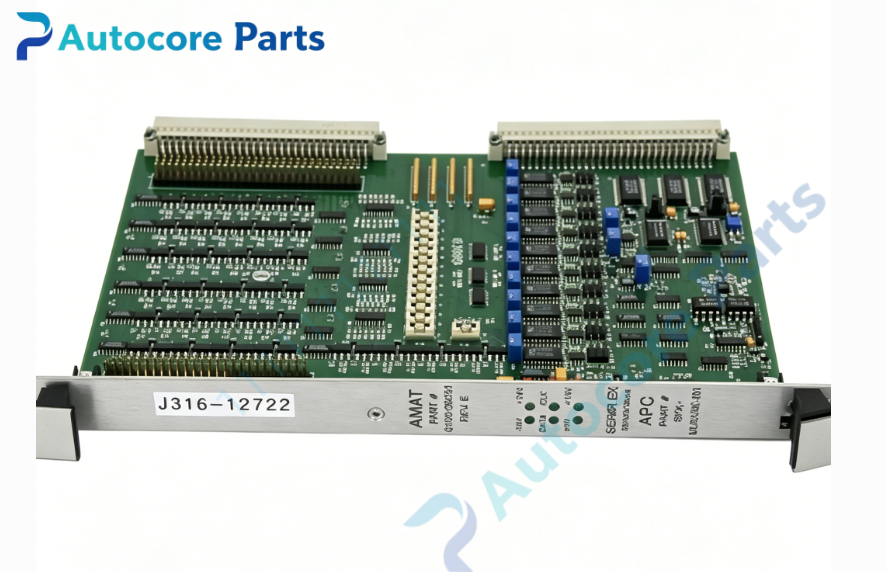

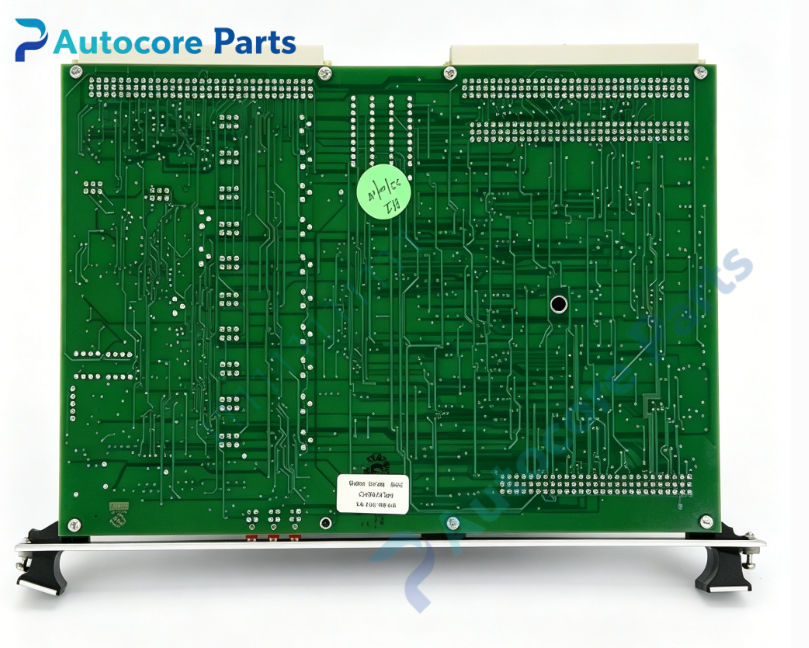

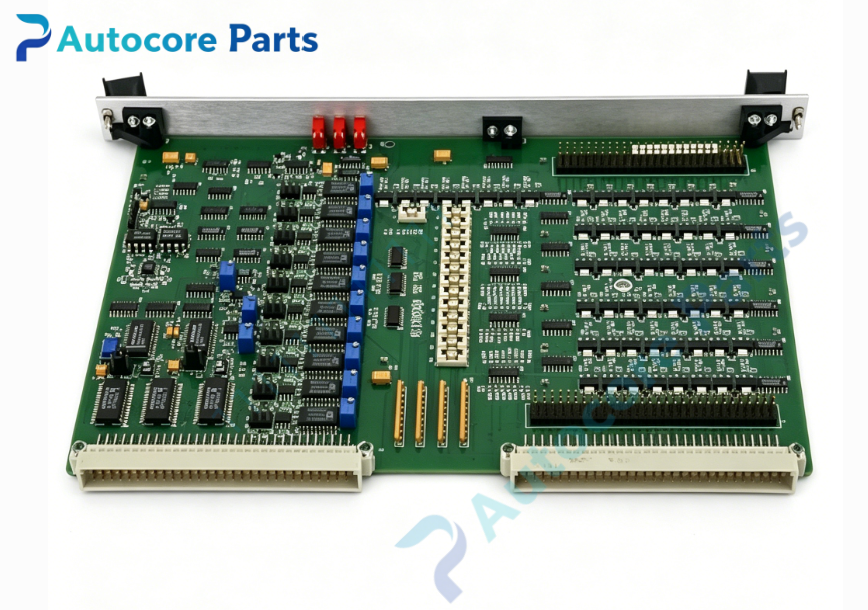

AMAT 0100‑09251 APC Seriplex Sensorbus Control Card

Technical Specifications

Model：0100‑09251

Brand：AMAT Applied Materials

Product Type：APC Seriplex sensorbus control PCB assembly

Applicable System：AMAT Centura,P5000 200mm wafer semiconductor equipment,VME 6U chassis

Supply Voltage：5V,±12V VME backplane power supply

Bus Interface：VMEbus backplane interface,Seriplex sensorbus field interface

Common Revision：Rev.E

Status Indicator：Multi‑color LED for power,bus activity and channel fault status

Built‑in Function：Seriplex sensorbus signal distribution,field sensor data acquisition,signal conditioning,channel diagnostic,data communication with main CPU via VME backplane bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME slot plug‑in installation

Weight：0.74kg

Product Brief:

0100‑09251 is legacy VME‑bus APC Seriplex sensorbus control card manufactured by AMAT Applied Materials. It serves as field sensor distribution interface for Centura and P5000 wafer fabrication equipment. It processes and distributes Seriplex sensorbus signals,collects status signals from multiple field sensors inside process chamber. Signal conditioning circuit ensures stable signal transmission under vacuum and plasma process environment. Front‑panel LED indicators support quick on‑site bus and channel fault diagnosis without extra testing tools. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm semiconductor equipment. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
