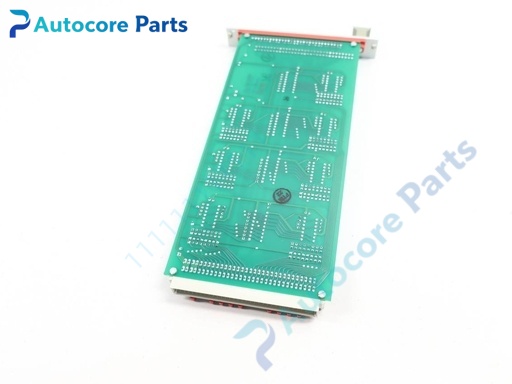

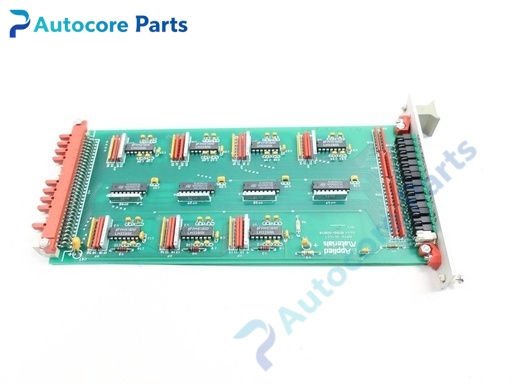

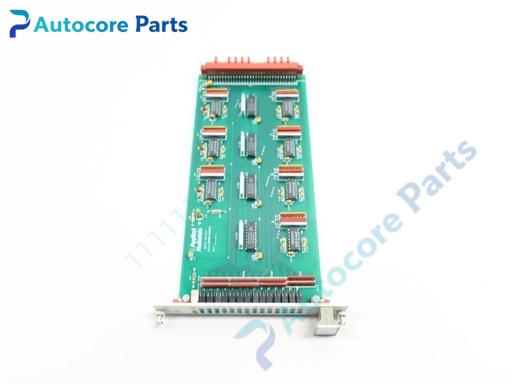

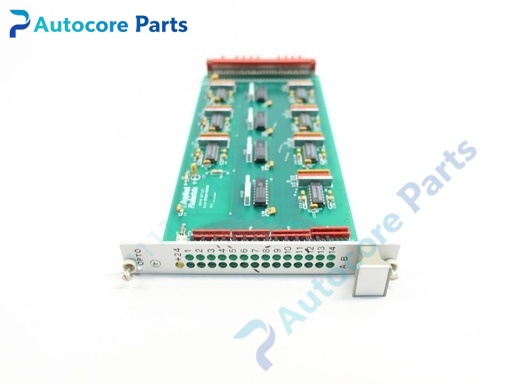

AMAT 0100‑00014 Analog Monitoring PCB Assembly

Technical Specifications

Model：0100‑00014

Brand：AMAT Applied Materials

Product Type：Analog monitoring signal conditioning PCB assembly

Applicable System：AMAT Centura,P5000,Endura 200mm wafer semiconductor equipment

Supply Voltage：5V,±12V VME backplane power supply

Signal Type：Multi‑channel analog input for pressure,temperature and flow sensors

Connector：High‑density terminal block for field sensor wiring

Bus Interface：VME backplane interface

Common Revision：Rev A,B,C

Status Indicator：On‑board multi‑color LED for power and channel fault alarm

Built‑in Function：Analog signal acquisition,signal filtering and amplification,signal conversion,process parameter monitoring,hardware self‑diagnosis,data transmission to main CPU via VME bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME slot plug‑in installation

Weight：0.76kg

Product Brief:

0100‑00014 is legacy analog monitoring PCB assembly manufactured by AMAT Applied Materials. It serves as analog sensor signal conditioning unit for Centura,P5000 and Endura semiconductor wafer equipment. It receives raw analog signals from pressure,temperature and flow sensors inside process chamber,executes filtering,amplification and signal conversion,and transmits processed data to system main CPU through VME backplane bus. On‑board LED indicators support quick on‑site channel fault diagnosis without extra testing tools. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
