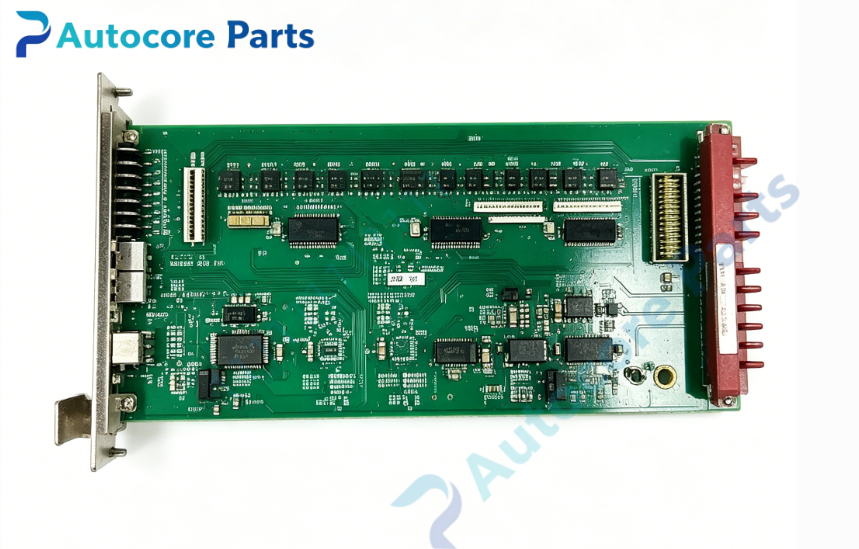

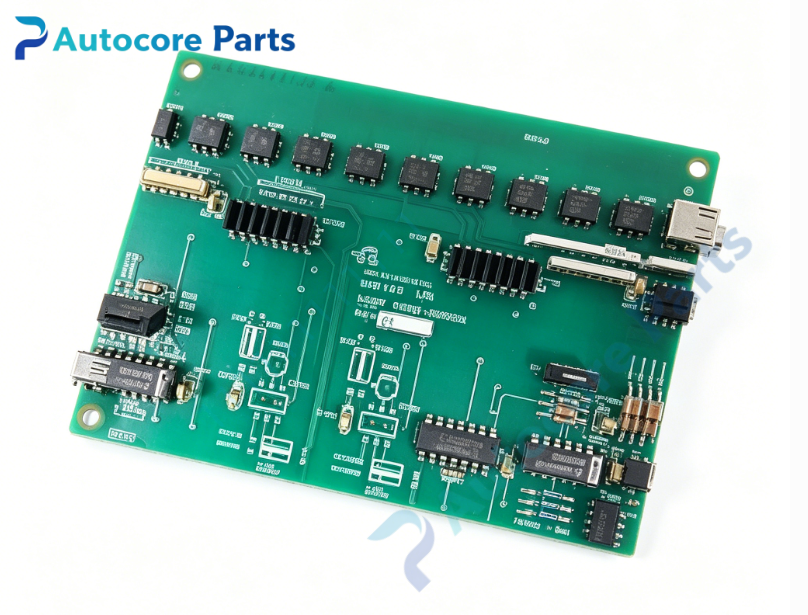

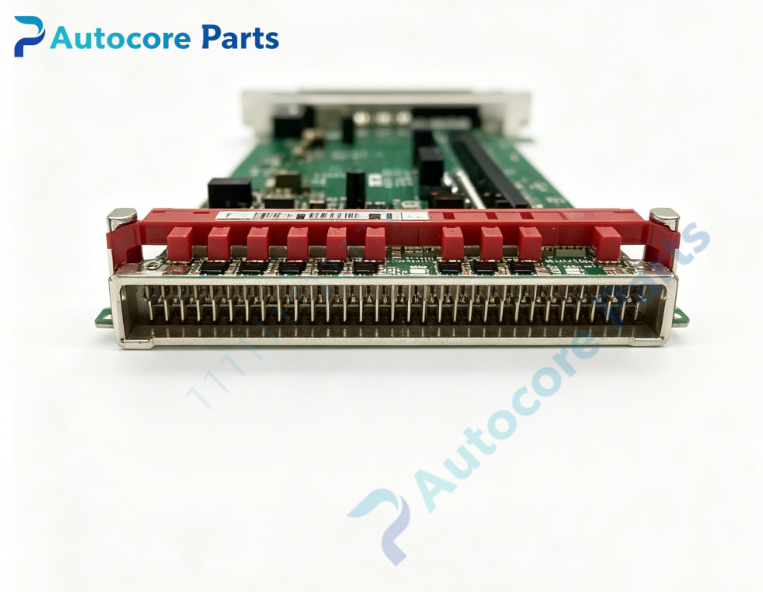

AMAT 0100‑09009 Buffer I/O PCB Card

Technical Specifications

Model：0100‑09009

Brand：AMAT Applied Materials

Product Type：Buffer I/O PCB card

Applicable System：AMAT Precision 5000(P5000) CVD and etch 200mm semiconductor equipment,VME 6U chassis

Supply Voltage：5V,±12V VME backplane power supply

Bus Interface：VMEbus backplane interface

Common Revision：Rev B,C

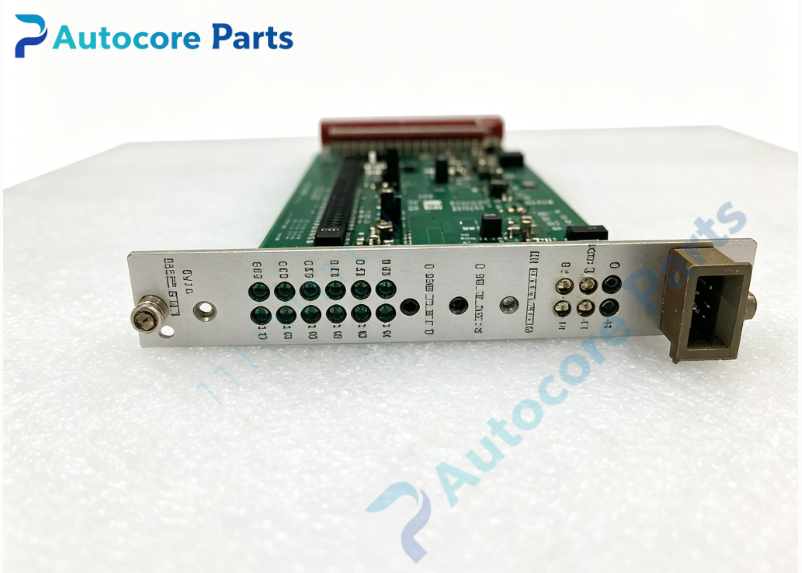

Status Indicator：Multi‑color LED for power,bus activity and channel fault status

Built‑in Function：Signal data buffering,data collision prevention,deterministic timing control,signal staging for peripheral I/O devices,hardware self‑diagnosis,data interaction with main CPU via VME bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：VME slot plug‑in installation

Weight：0.73kg

Product Brief:

0100‑09009 is legacy Buffer I/O PCB card manufactured by AMAT Applied Materials for Precision 5000 platform. It acts as data buffer between system main controller and peripheral I/O devices. It provides stable signal staging area for inbound and outbound signals,prevents data collision and guarantees deterministic timing required for complex CVD and etch semiconductor processes. Front‑panel LED indicators support quick on‑site bus and channel fault diagnosis without extra testing tools. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
