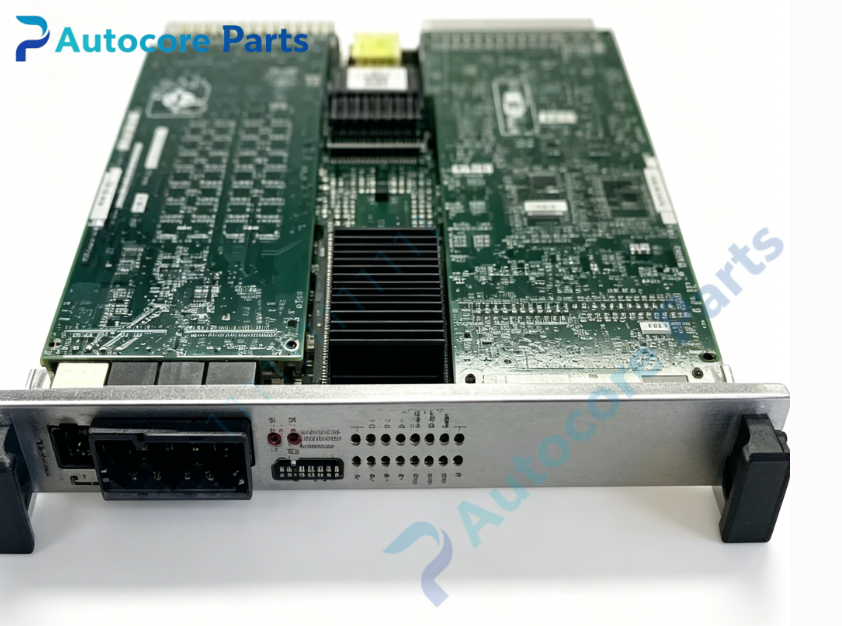

AMAT 9090‑01392 Interconnect Interface PCB Assembly

Technical Specifications

Model：9090‑01392

Brand：AMAT Applied Materials

Product Type：System interconnect interface PCB assembly

Applicable System：AMAT Centura,P5000 200mm semiconductor process equipment

Supply Voltage：5V,±12V auxiliary power supply

Interface：Multi‑pin signal connectors for cross‑module signal routing

Common Revision：Multiple hardware revisions available

Status Indicator：No on‑board LED,status feedback from connected functional boards

Built‑in Function：Cross‑module signal transition,signal routing and distribution,mechanical connection positioning,signal impedance matching,hardware interconnection between different sub‑systems

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Fixed installation inside equipment chassis

Weight：0.41kg

Product Brief:

9090‑01392 is legacy interconnect interface PCB assembly manufactured by AMAT Applied Materials. It serves as cross‑system signal transition and routing unit for Centura and P5000 semiconductor wafer equipment. It implements signal transfer and impedance matching between different sub‑modules and sub‑systems inside the equipment. Multi‑pin high‑reliability connectors guarantee stable signal transmission under long‑term production environment. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and system compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
