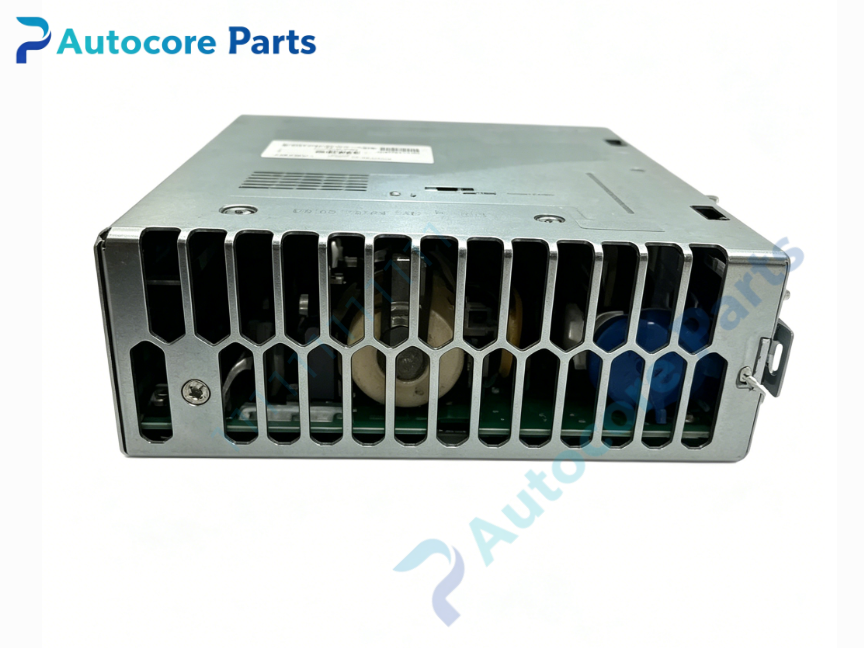

B&R 0PS1050.1 Industrial Switching Power Supply

Technical Specifications

Model:0PS1050.1

Brand:B&R

Product Type:Single‑phase switching power supply

Applicable System:B&R PLC, I/O modules, industrial cabinet control power supply

Input voltage:100‑240VAC wide‑range,47‑63Hz

Output:24VDC,5A,rated power 120W,adjustable 22.5‑29.5VDC

Efficiency:89% at rated load

Protection:Short‑circuit,overload,open‑circuit,over‑voltage protection,continuous short‑circuit withstand capability

Parallel connection:Support parallel operation for redundancy or power expansion,support series connection

Installation:DIN‑rail mounting,horizontal installation only

Degree of protection:IP20

Status indicator:Front‑panel green LED power status indicator

Working temperature:‑25℃ ~ +70℃,derating above 55℃

Storage temperature:‑40℃ ~ +85℃

Cooling:Natural convection,fan‑free design

Built‑in function:Wide‑range AC‑DC conversion,low‑ripple stable 24V output,surge suppression,EMI filtering,provides reliable DC power for PLC,remote I/O and field sensors

Product Brief

0PS1050.1 is B&R single‑phase industrial switching power supply, delivering 120W 24VDC 5A output, widely used for supplying power to B&R PLC controllers and distributed I/O stations.

It adopts 100‑240VAC universal wide‑range input, adapts to different industrial site power grid conditions. Fan‑free natural convection cooling structure reduces failure points, suitable for long‑term cabinet continuous operation.

This power supply supports parallel redundant configuration, improves power supply reliability for key automation equipment. Complete short‑circuit, overload and over‑voltage protection effectively protects rear‑end PLC and I/O modules from damage caused by field wiring faults.

This is EOL discontinued spare part, mainly used for maintenance and renovation of existing B&R automation control cabinets. Please confirm load current and installation space before purchase. Strict ESD protection shall be followed during installation.
