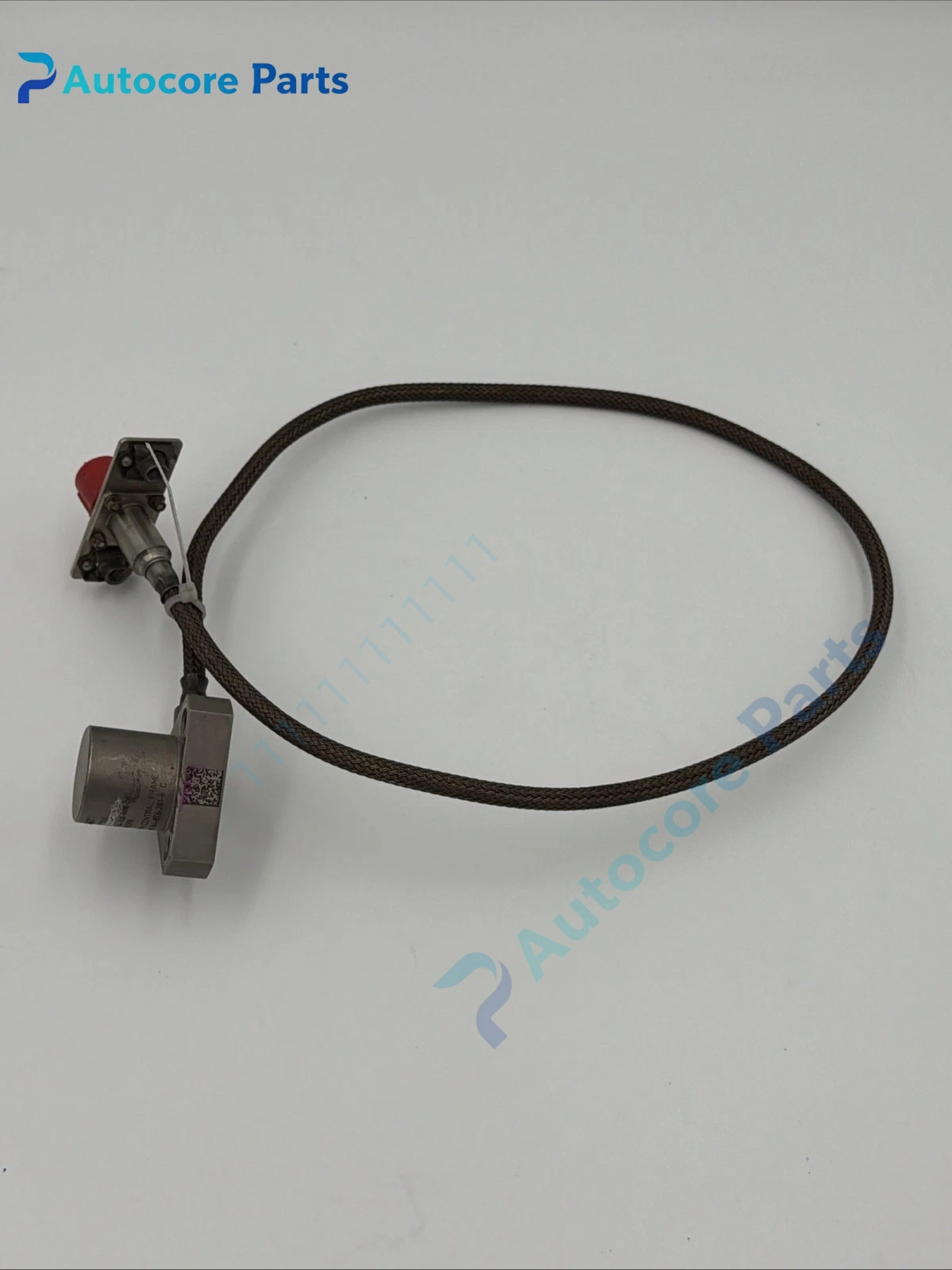

Meggitt 144-168-000-501 Vibration Accelerometer Unit

Module Feature

144-168-000-501 is a hermetically sealed piezoelectric accelerometer from Meggitt Vibro-Meter series.

It is engineered for vibration measurement on gas turbines and other high-temperature rotating equipment. The stainless steel sealed housing withstands extreme thermal environments. It outputs charge signal proportional to vibration acceleration and requires matching charge amplifier or monitoring module. Widely stocked as spare part for power generation and petrochemical machinery condition monitoring cabinet.

Working principle

The built-in piezoelectric crystal generates charge when subjected to vibration acceleration.

The charge signal is transmitted through low-noise shielded cable to signal conditioning unit. The monitoring system converts charge signal into vibration value, for real-time trend tracking, alarm triggering and fault diagnosis of turbomachinery.

Onboard components

Piezoelectric sensing crystal, insulating internal structure, hermetically sealed stainless steel housing, high-temperature connector and shielding assembly.

LED indicators

No built-in LED indicator.

Hardware self‑diagnosis

Check cable insulation, connector tightness and signal integrity by vibration monitoring host. No local adjustment function.

Programming software

Not applicable, charge output transducer, configured via matched machinery monitoring software.

Electrical & Process Parameters

Model: 144-168-000-501 Brand: Meggitt Vibro-Meter Device type: Piezoelectric vibration accelerometer Function: Vibration acceleration acquisition for gas turbine and rotating machinery condition monitoring

Mechanical & Structure

Mounting: Thread stud mounting on machine casing Protection class: Hermetically sealed Housing: Stainless steel hermetic housing

Environmental

Operating temperature: -55℃ ~ +260℃ Storage temperature: -60℃ ~ +280℃ Ambient humidity: 5~95% non‑condensing

Certification: CE Status: Original Meggitt monitoring spare

Installation

Cut off monitoring system power before replacement.

Screw the sensor onto cleaned mounting stud and lock firmly, connect low-noise charge cable, verify signal and vibration reading after commissioning.

Interface

Charge signal connector, shielded cable interface.

Diagnostic

No vibration signal: Cable broken, connector loose or internal crystal damaged. Signal noisy: Poor shielding, ground loop interference. Signal drift: Operating temperature exceeds sensor specification range.

Product Brief

144-168-000-501 transducer, Meggitt Vibro-Meter high-temperature piezoelectric vibration accelerometer spare for gas turbine and rotating equipment condition monitoring replacement.
