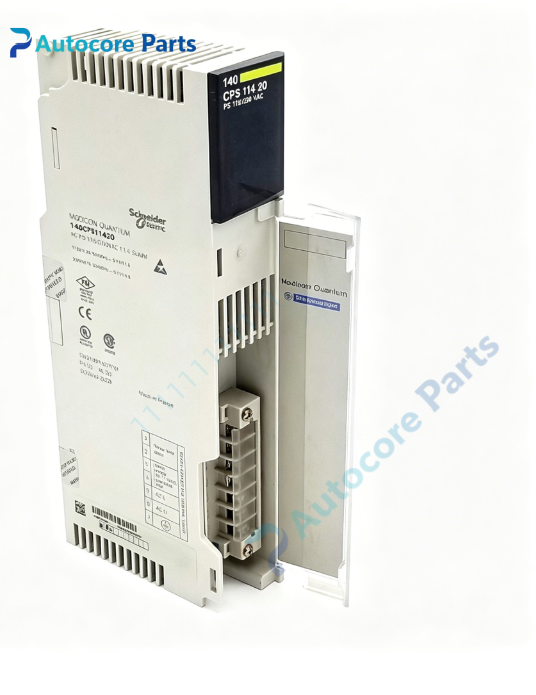

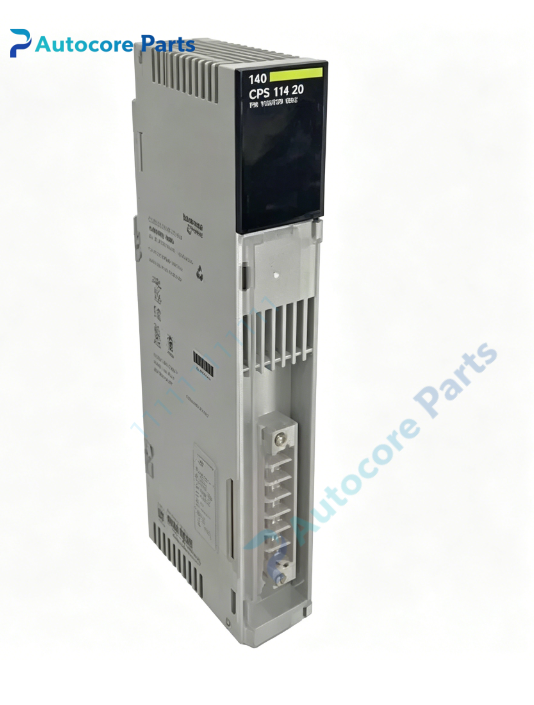

Schneider 140CPS11420 Modicon Quantum Summable AC Power Supply Module

Technical Specifications

Model：140CPS11420

Brand：Schneider

Product Type：Summable AC power supply module,Modicon Quantum automation platform

Input Voltage：93‑132VAC /170‑264VAC,115/230V range,47‑63Hz

Rated Input Power：160VA

Input Current：1.2A@115VAC,0.7A@230VAC

Backplane Output：5.1VDC

Standalone Output Current：11A@60℃

Summable Parallel Max Current：20A@60℃

Working Mode：Standalone / summable parallel,N+1 redundancy supported

Alarm Relay：1×Normally‑closed relay contact,6A 220VAC for power fault alarm

Status Indicator：Green PWR‑OK LED,battery low LED

Protection：Built‑in overvoltage,overload,short‑circuit protection

Battery Socket：Lithium battery slot for CPU memory backup

Mounting：Quantum backplane rack single‑slot installation

Weight：0.65kg

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE,FM Class1 Div2

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Max Operating Altitude：5000m

Application：Chemical industry,power plant,metallurgy,water‑treatment,medium‑large Quantum rack power supply maintenance and spare‑part replacement。

Product Details

140CPS11420 is summable‑type AC power supply for Schneider Modicon Quantum PLC racks,supplies stable 5.1VDC bus power for CPU,I/O and communication modules.

It supports 115/230VAC wide‑range mains input. Standalone mode delivers 11A; two units parallel summable up to 20A,supports N+1 redundant power configuration for medium‑large racks with many modules. Equipped with NC alarm relay contact for external power failure signal output; front panel has PWR‑OK and battery‑low indicator LED,also reserved lithium battery socket for CPU memory retention.

Built‑in overvoltage,overload and short‑circuit protection improves system reliability. Note:140CPS11420C is conformal‑coated version for corrosive harsh environment. This model is discontinued,widely used as replacement spare‑part for legacy Quantum automation systems.
