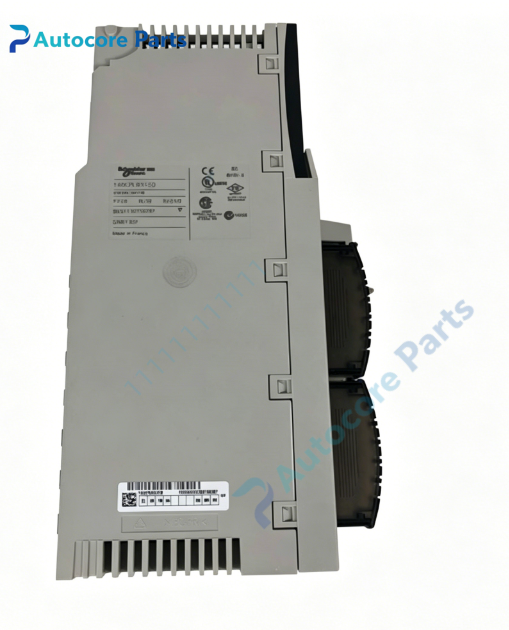

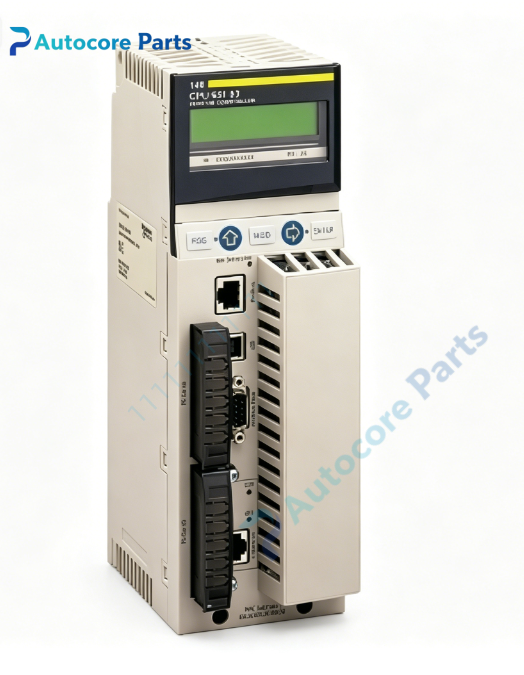

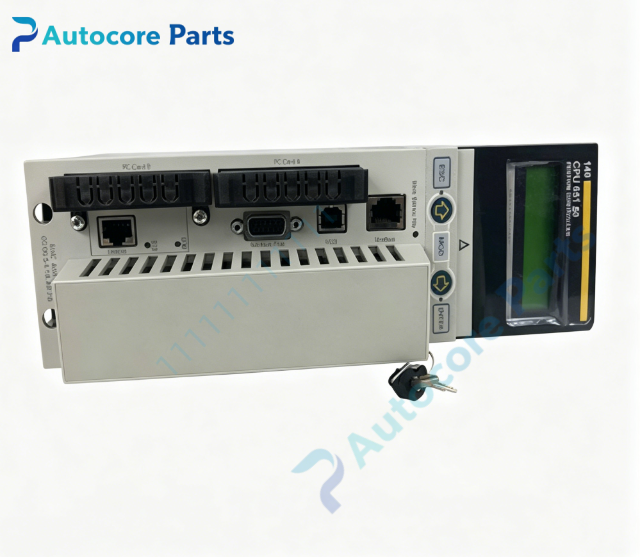

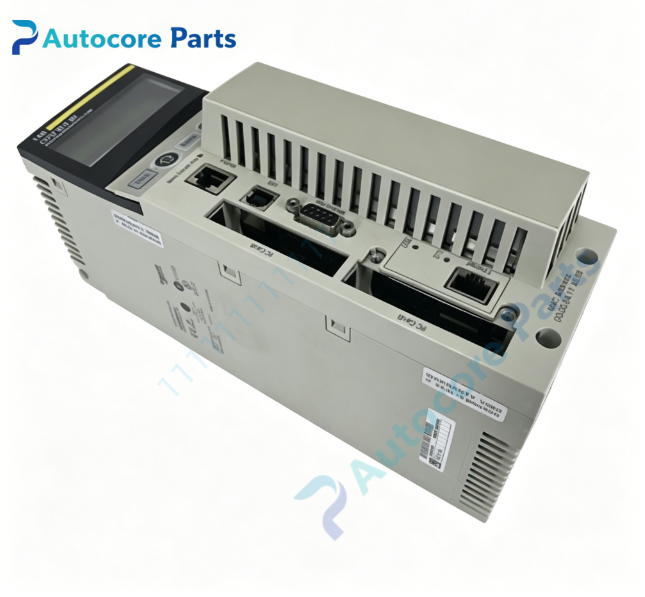

Schneider 140CPU65260 Modicon Quantum Unity Processor

Technical Specifications

Model：140CPU65260

Brand：Schneider

Product Type：Unity high‑performance CPU,Modicon Quantum automation platform

Clock Frequency：266 MHz

User Program Memory：4096 KB

Data Memory：3072 KB

Boolean Instruction Speed：0.12 μs per boolean instruction

Program Software：Unity Pro,EcoStruxure Control Expert

Local Racks：2 local racks

S908 RIO Drops：Max 31 remote stations

EIO Remote Drops：Max 31 remote stations

Discrete I/O(S908 RIO)：8000 inputs,8000 outputs

Integrated Interfaces：1×10/100Mbps RJ45 Ethernet,1×Modbus Plus SUB‑D9,1×Modbus RS232,1×USB

Redundancy：Support hot‑standby,fiber optic sync link(187.5kbps)

Watchdog Timer：Hardware watchdog

Display：Front‑panel LCD status display & function keys

Bus Current Consumption：1100mA

Weight：1.2kg

Mounting：Quantum backplane,occupies two adjacent slots

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE,FM Class1 Div2

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Max Operating Altitude：5000m

Application：Chemical industry,power plant,metallurgy,water‑treatment,large‑scale process control,redundant PLC system maintenance and spare‑part replacement。

Product Details

140CPU65260 is high‑performance Unity‑based CPU for Schneider Modicon Quantum platform,runs IEC61131‑3 programs with 266MHz processing core,4MB user program memory,optimized for large‑scale process control projects.

It occupies two slots on Quantum backplane. Native interfaces include 10/100Mbps Ethernet,Modbus Plus,Modbus RS232 and USB port. Supports hot‑standby redundant configuration via dedicated fiber synchronization link,realizes bumpless switch‑over between primary and standby CPU. Front‑panel LCD display provides direct status diagnosis without programming tool.

Compatible with S908 RIO and EIO EtherNet/IP remote I/O architecture. Note:140CPU65260C is conformal‑coated version for corrosive harsh environment. This model is discontinued; recommended replacement is BMEP584040 Modicon M580 CPU. Widely used as replacement spare‑part for legacy large‑size redundant Quantum control systems in chemical,power,metallurgy and water‑treatment industry。
