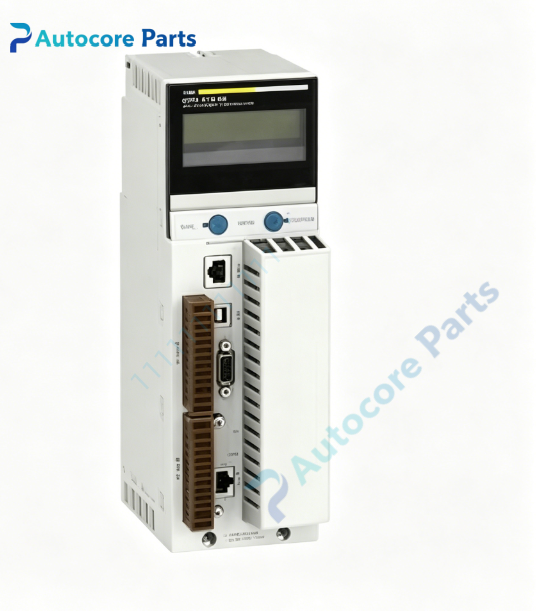

Schneider 140CPU67260 Modicon Quantum Multimode Unity Hot‑Standby Processor

Technical Specifications

Model：140CPU67260

Brand：Schneider

Product Type：Multimode Unity hot‑standby CPU,Modicon Quantum automation platform

Processor：PowerPC 604e 32‑bit RISC

Clock Frequency：266 MHz

Internal RAM：3072 KB（1536KB program,1536KB data）

Expandable Memory：PCMCIA card,max 7168KB program memory,8MB file storage

Boolean Instruction Speed：10280 boolean instructions / ms

Program Software：Unity Pro,EcoStruxure Control Expert

Local Racks：2 local racks

S908 RIO Drops：Max 31 remote stations

EIO Remote Drops：Max 31 remote stations

Distributed I/O Stations：Max 63 stations

Discrete I/O Max：31744 points

Analog I/O Max：1984 points

Integrated Interfaces：1×10/100Mbps RJ45 Ethernet,1×Modbus Plus SUB‑D9,1×Modbus RS232,1×USB,1×MT‑RJ multimode fiber hot‑standby sync port(max 4km)

Redundancy：Hardware hot‑standby,multimode fiber synchronization

Watchdog Timer：Hardware watchdog

Display：Front‑panel LCD status display & function keys

Bus Current Consumption：1150mA

Weight：1.3kg

Mounting：Quantum backplane,occupies two adjacent slots

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE,FM Class1 Div2

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Max Operating Altitude：5000m

Application：Chemical industry,power plant,metallurgy,water‑treatment,large‑scale process control,high‑reliability redundant PLC system maintenance and spare‑part replacement。

Product Details

140CPU67260 is high‑end multimode Unity hot‑standby processor for Schneider Modicon Quantum platform,PowerPC 604e 266MHz RISC architecture,designed for large‑scale high‑availability process‑control projects. It occupies two adjacent slots on Quantum backplane.

Built‑in MT‑RJ multimode fiber hot‑standby sync port realizes hardware hot‑standby redundancy for primary‑standby CPU,maximum fiber transmission distance up to 4km with bumpless switch‑over between master and standby; on‑board Ethernet,Modbus Plus,RS232 and USB interfaces; supports PCMCIA memory card for program and file storage expansion. Front‑panel LCD display supports local status check and fault diagnosis without programming tool.

Compatible with S908 RIO and EIO EtherNet/IP remote I/O architecture,supports up to 63 distributed I/O stations. Note:140CPU67260C is conformal‑coated version for corrosive harsh environment. This model is discontinued; recommended replacement is BMEH584040 Modicon M580 redundant CPU. Widely used as replacement spare‑part for legacy large‑size redundant Quantum control systems in chemical,power,metallurgy and water‑treatment industry。
