Schneider 140CRP31200 Modicon Quantum EtherNet/IP RIO Head Adapter

Technical Specifications

Model：140CRP31200

Brand：Schneider

Product Type：EtherNet/IP RIO head adapter,Modicon Quantum EIO bus platform

Partner Module：140CRA31200 remote drop adapter

Communication Protocol：EtherNet/IP,Modbus TCP

Port Quantity：4 × RJ45 ports(2 device‑network,1 interlink,1 service port)

EIO Bus Speed：20 Mbps ring‑network,RSTP ring recovery＜50ms

Max Remote Drops：31 remote I/O stations

Indicator：RUN green LED,Mod‑Status bi‑color LED,Net‑Status bi‑color LED,I/O fault red LED

Firmware Version：Exec V1.74

Hot‑Standby Support：Support Quantum CPU hot‑standby system

Bus Current Consumption：720mA

Weight：0.554kg

Mounting：Quantum backplane rack single‑slot installation

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE,C‑Tick

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑93% non‑condensing

Application：Chemical industry,power plant,metallurgy,water treatment,EIO main‑rack communication maintenance and spare‑part replacement。

Product Details

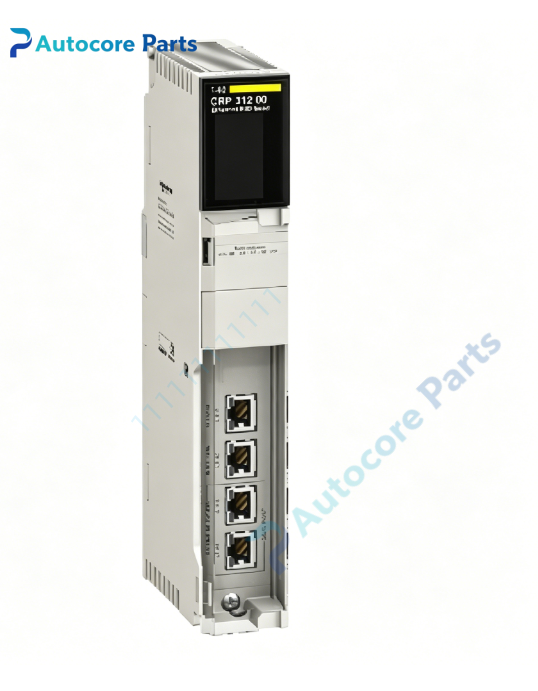

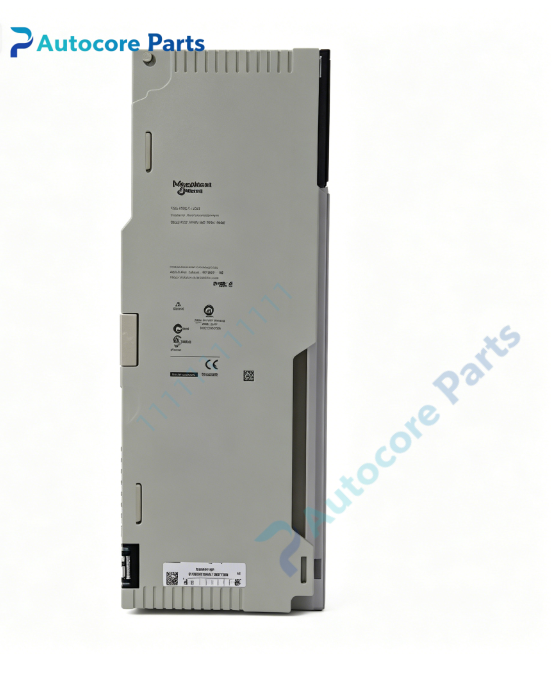

140CRP31200 is EIO bus main‑rack head adapter for Schneider Modicon Quantum platform,works cooperatively with remote drop adapter 140CRA31200 to build EtherNet/IP remote I/O ring network. It occupies one slot on main local rack.

Equipped with four RJ45 10/100Mbps Ethernet ports; two for EIO ring‑bus device network, one interlink port for distributed I/O extension, one service port for HMI, programming tool access. Adopt RSTP protocol, ring‑network fault recovery time less than 50ms, supports up to 31 remote I/O drops.

Multi‑LED indicators display module running, module fault, network status and I/O fault. Compatible with Unity Pro / EcoStruxure Control Expert programming software, supports Quantum hot‑standby redundant CPU system. Note:140CRP31200C is conformal‑coated version for corrosive harsh environment. This model is discontinued, widely used as replacement spare‑part for EIO main‑rack communication in chemical,power,metallurgy and water‑treatment projects.
