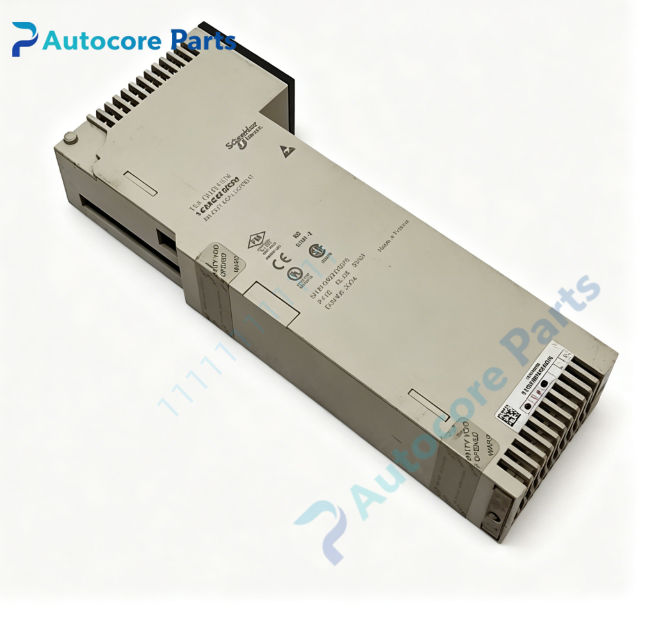

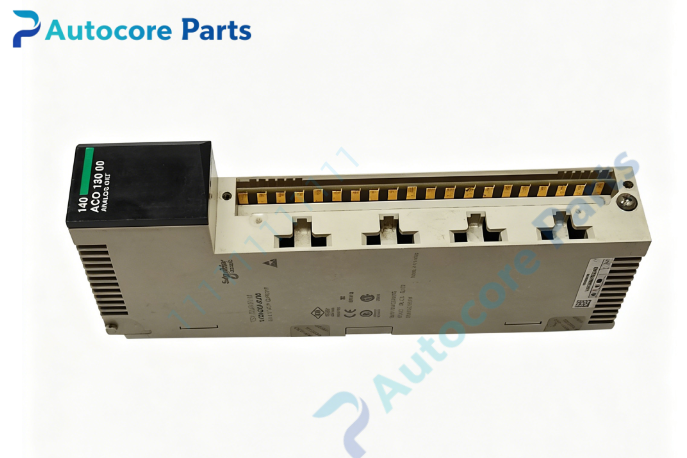

Schneider 140ACO13000 Modicon Quantum 8‑Channel Analog Output Module

Technical Specifications

Model：140ACO13000

Brand：Schneider

Product Type：Analog output module,Modicon Quantum automation platform

Channel Quantity：8 isolated current output channels

Output Ranges：4‑20mA,0‑20mA,0‑25mA configurable

Resolution：16‑bit

Accuracy：±0.1% full‑scale at 25℃

Temperature Drift：±0.015% /℃ typical

Loop Supply Voltage：6‑30VDC external field power

Max Load Resistance：720Ω @24VDC,25mA

Isolation：Field‑to‑bus isolation 1780VAC 1min,channel‑to‑channel isolation

Address Occupation：8 output words

Indicator：Module RUN/FAULT LED,8 channel status LED

Bus Current Consumption：550mA

Power Dissipation：3W(excluding field loop power)

Weight：0.3kg

Mounting：Quantum backplane single‑slot installation

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Application：Chemical industry,power plant,metallurgy,water treatment,valve & actuator control,Quantum system maintenance and spare‑part replacement。

Product Details

140ACO13000 is 8‑channel isolated current analog output module for Schneider Modicon Quantum platform. It converts digital values from PLC CPU into standard current analog signals to control field actuators,control valves and transmitters.

Supports configurable 4‑20mA,0‑20mA,0‑25mA current output ranges with 16‑bit high resolution. Requires external 6‑30VDC power supply for field loops; module itself draws power from Quantum backplane bus. Complete galvanic isolation between field side and logic bus side improves anti‑interference performance for industrial site.

LED indicators show module running,fault status and each channel working condition. It is discontinued original Quantum hardware,compatible with Unity Pro,Concept programming software.

Note:140ACO13000C is conformal‑coated version for corrosive harsh environment; recommended replacement model is BMXAMO0802. Widely used as replacement spare‑part for existing Quantum process control systems.
