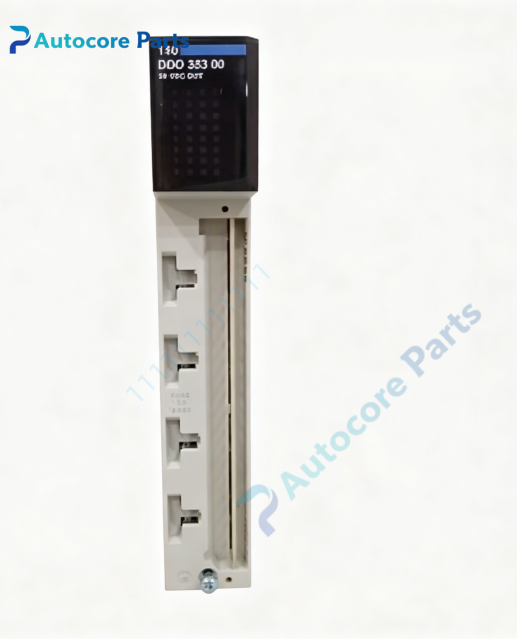

Schneider 140DDO35300 Modicon Quantum 32‑Channel 24VDC Source Discrete Output Module

Technical Specifications

Model：140DDO35300

Brand：Schneider

Product Type：DC discrete output module,Modicon Quantum automation platform

Channel Layout：32 outputs,4 groups × 8 channels

Output Logic：Positive logic(source type)

Field Voltage：19.2‑30VDC(24VDC nominal)

Per‑channel Max Current：0.5A

Per‑group Max Current：4A

Module Total Max Current：16A

Response Time：≤1ms(on‑off & off‑on)

Leakage Current：0.4mA@30VDC

Isolation：Bus‑to‑field 1780Vrms 1min,group‑to‑group 500Vrms 1min

Protection：Per‑group fuse protection,short‑circuit & overload protection

Address Occupation：2 output words

Indicator：Green ACTIVE LED,red FAULT LED,32 channel status LED

Bus Current Consumption：330mA

Power Dissipation：1.75W+(0.4V×total load current)

Weight：0.45kg

Mounting：Quantum backplane single‑slot installation

Protection Grade：IP20

Certification：UL508,CSA C22.2 No.142,CE,FM Class1 Div2

Working Temperature：0℃ ~ +60℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：10%‑95% non‑condensing

Application：Chemical industry,power plant,metallurgy,water treatment,solenoid valve,indicator light,relay drive,Quantum system maintenance and spare‑part replacement。

Product Details

140DDO35300 is high‑density 32‑channel source‑type discrete output module for Schneider Modicon Quantum platform,divided into four independent groups of eight channels each. It converts PLC internal logic signals into 24VDC sourcing output to drive field relays,solenoid valves and indicator lamps.

Solid‑state transistor output,no mechanical wear; each group equipped with fuse‑based overload & short‑circuit protection. Group‑to‑group isolation improves anti‑interference performance for field wiring faults. Front‑panel LEDs indicate module communication,fault and each channel ON/OFF status for fast site diagnosis.

Compatible with Unity Pro / Concept programming software.

Note:140DDO35300C is conformal‑coated version for corrosive harsh environment. This model is discontinued,widely used as replacement spare‑part for legacy Quantum automation systems。
