AMAT 0130‑11002 Digital I/O PCB Board

Technical Specifications

Model：0130‑11002（Schematic reference for assembly 0100‑11002）

Brand：AMAT Applied Materials

Product Type：Digital I/O PCB bare board assembly

Applicable System：AMAT P5000,Centura series semiconductor process equipment,VME 6U chassis platform

Supply Voltage：5V,±12V VME backplane power supply,field signal 24V DC

Channel：Multi‑channel optically isolated discrete input and output

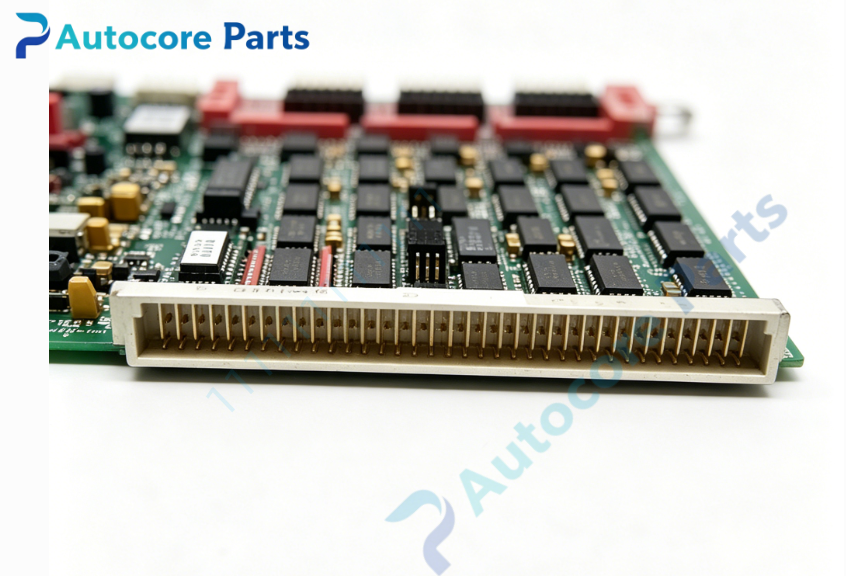

Bus Interface：VMEbus backplane interface

Common Revision：Rev B,C,E,F

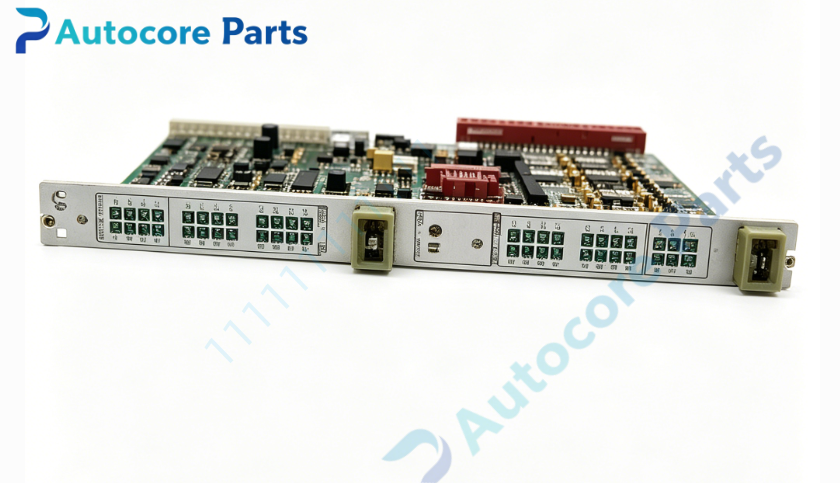

Status Indicator：On‑board multi‑color LED for each channel status indication

Built‑in Function：Discrete signal acquisition,solenoid valve and actuator drive,photoelectric isolation protection,channel fault diagnosis,data interaction with main CPU via VME bus

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

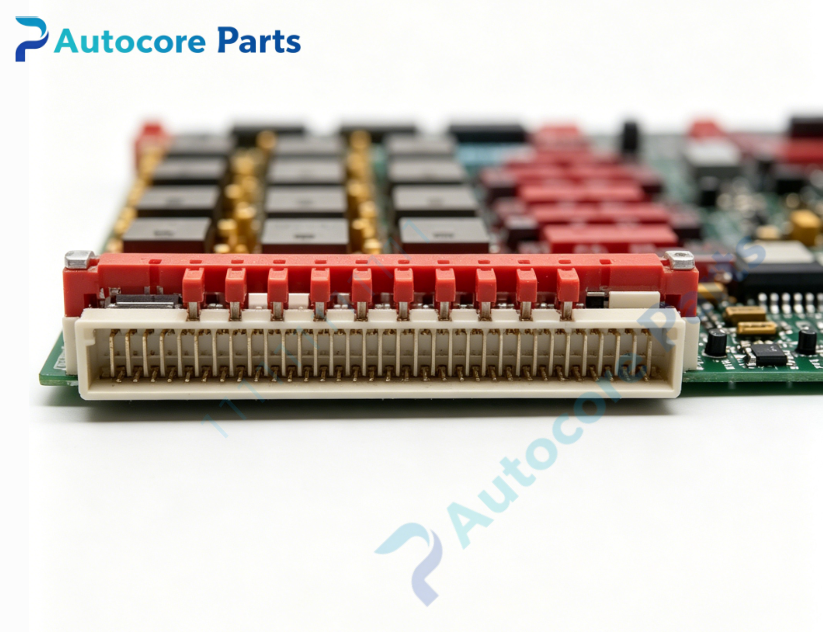

Mounting：VME slot plug‑in installation

Weight：0.72kg

Product Brief:

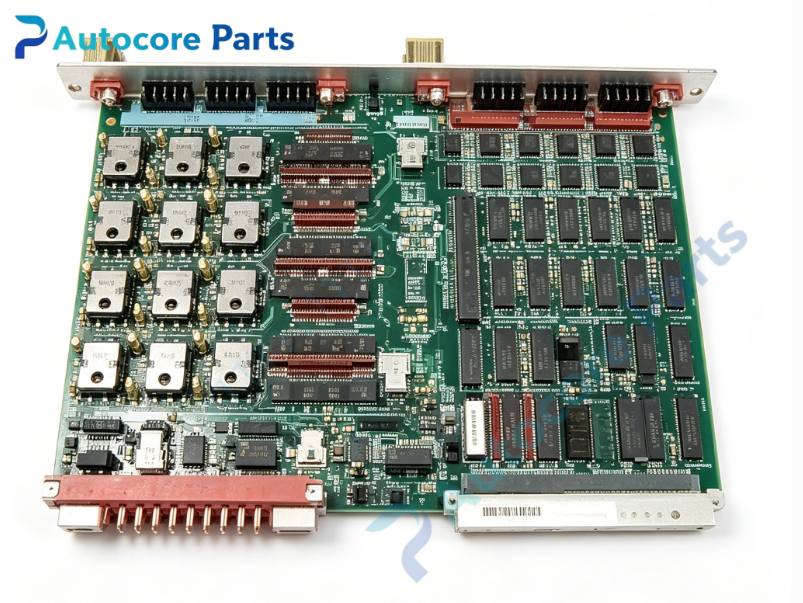

0130‑11002 is schematic reference PCB bare board for AMAT 0100‑11002 digital I/O interface card,used as discrete signal interface unit for P5000 and Centura semiconductor wafer equipment. It collects on‑site sensor digital signals and outputs drive signals to control solenoid valves and actuators. Optoelectronic isolation design improves anti‑interference performance for long‑term wafer manufacturing environment. Each channel is equipped with LED indicator for quick channel status check. It communicates with system main CPU through VME backplane bus. Plug‑in VME slot structure enables convenient disassembly and replacement. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm semiconductor equipment. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
