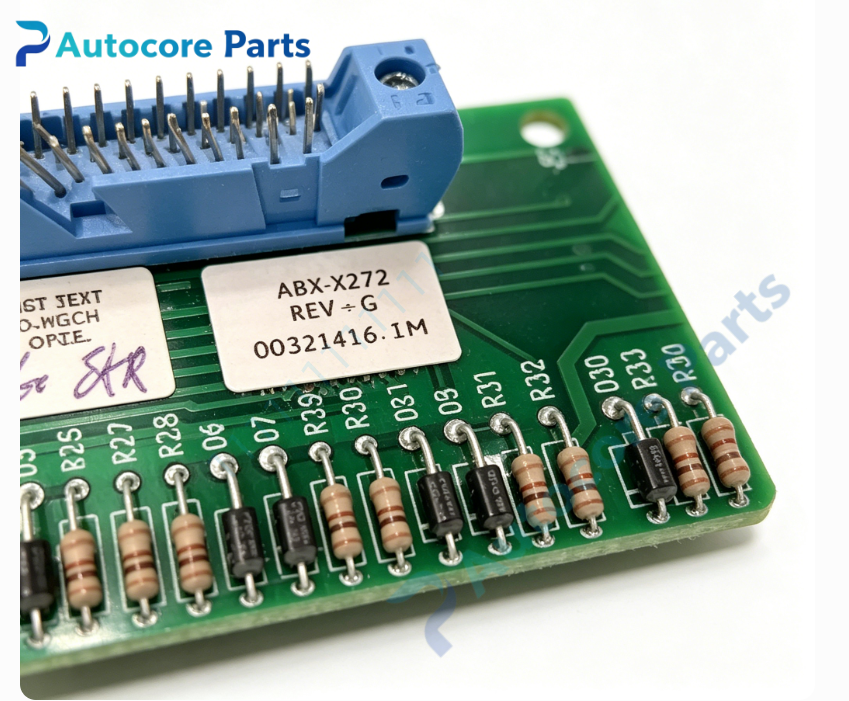

AMAT ABX‑X272 PS Interface Board Assembly

Technical Specifications

Model：ABX‑X272

Brand：AMAT Applied Materials

Product Type：PS interface board assembly

Applicable System：AMAT Centura 200mm semiconductor process equipment

Supply Voltage：Multi‑channel DC auxiliary power input

Interface：Multi‑pin power and signal connectors for chamber‑system interconnection

Common Revision：Multiple hardware revisions available

Status Indicator：On‑board LED for power operating and fault alarm status

Built‑in Function：Power‑supply signal routing and conditioning,power‑on sequence monitoring,fault detection and alarm output,signal transition between process chamber and main control unit,hardware circuit filtering

Working Temperature：0℃ ~ +50℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Chassis internal fixed installation

Weight：0.49kg

Product Brief:

ABX‑X272 is legacy PS interface board assembly manufactured by AMAT Applied Materials. It serves as dedicated power‑signal transition board inside Centura wafer fabrication equipment. It implements power‑supply signal routing,signal conditioning and power‑on sequence monitoring between process‑chamber subsystems and main control system. On‑board LED provides visual indication for power running and fault alarm state. This is EOL discontinued spare part,widely used for maintenance and renovation of AMAT legacy 200mm wafer fabrication tools. Please confirm hardware revision and equipment compatibility before purchase. Strict ESD anti‑static protection shall be performed during installation.
